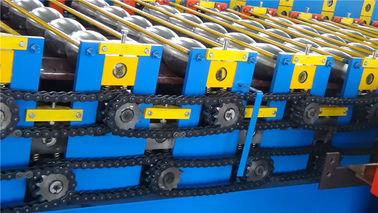

Glazing Steel Double Layer Roll Forming Machine 380 V 50 HZ 3 Phase Voltage

Glazing Steel Double Layer Roll Forming Machine 380 V 50 HZ 3 Phase Voltage
Glazing Steel Double Layer Roll Forming Machine 380 V 50 HZ 3 Phase Voltage Glazing Steel Double Layer Roll Forming Machine 380 V 50 HZ 3 Phase Voltage

Large Image :  Glazing Steel Double Layer Roll Forming Machine 380 V 50 HZ 3 Phase Voltage

Product Details:
Certification: CE
Model Number: double layer
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: negotiated
Packaging Details: 1.Tighten to container with steel wire rope and welded angel iron. 2.Main forming machine and unciler is naked (if you need we can also packed with water-proof plastic) 3.PLC control system and moter pump are packed with water-proof plastic coverage.
Delivery Time: within30 days after receiving deposit
Payment Terms: T/T, L/C, Western Union
Supply Ability: 50 SETS PER MONTH

Glazing Steel Double Layer Roll Forming Machine 380 V 50 HZ 3 Phase Voltage

Description
Roof Tile And Wall Roll Forming Machine Tile Type: Colored Steel Dimension(L*W*H): 6500*1500*1500
Weight: About: 3.5 T Voltage: 380V.50HZ.3Phase
Roll Material:: 45# High Grade Steel Production Capacity:: 8-12M/Min
Control System: Totally Automatic PLC Cutting System:: Automatic Hydyaulic Cutting
High Light:

tile making machine

,

wall panel roll forming machine

Glazing Steel Double Layer Roll Forming Machine 26 Rollers 380V 50Hz Power


Main technical parameter:


1. Un-coiler:Hydraulic expansion, active open the coil
2. Capacity of un-coiler: 7T, Hydraulic &automatic
3. Chassis: 350H steel
4. Side panel:18mm
5. Guiding feeding form of machine: side roller type
6. Machine form: wallboard type and chain transmission
7. The diameter of main shaft: ?76mm
8. Chain: 1Inch single row
9. Power of forming machine:5.5KW
10. Speed:18m/min
11. Number of channels: 19step/18step
12. Materials of rollers: NO.45 steel forgings
13. The surface of roller coating hard chromium: 0.05mm
14. Motor of hydraulic station:3kw
15. Oil pump of hydraulic station:gear pump
16. Cutter: hydraulic type
17. The material of blade:Cr12
18. Quenching rigidity: HRC58-60°
19. Thickness:0.3 -0.8mm
20. Width of raw material:1220mm
21. Tolerance of length:±2mm
22. Frequency converter: SAJ
23. PLC of computer: Panasonic
24. Operation panel of computer: touch screen
25. Voltage: 380V/50HZ/3 phase
Technology process:
Hydraulic open the coil→ feeding panel with guide→ roll forming→ cutting with fixed-length→ output with supporter
Equipment including:
Hydraulic de-coiler(7T),forming machine,hydraulic cutting,hydraulic station,PLC computer control cabinet,output table
Production period: 30 days



Technological process
Passively de-coiling → Guiding & Feeding material → Roll Forming → Cutting-to-length → Output panel

Equipment configuration
Manual De-coiler(5T)
Main machine of roll forming
Hydraulic forming cutter
Hydraulic station,PLC
PLC computer operation cabinet
Runout table
Terms
Payment type 35% T/T prepaid and balance should be paid before loading
Delivery time 30days after receving advance payment
Guarantee period 18monthes free service/ pay service all the machine life
Installation and training If buyers visit our factory and check the machine,
we will teach you how to install and use the machine,
and also train your workers/technician face to face.
Without visiting, we will send you user manual and
video to teach you to install and operate.
If buyer needs our technician to go to your local factory,
please arrange board and lodging and other necessary things.
