Product Details:
|
| Type:: | Cold Rolling Mill | Dimension(L*W*H):: | 6500*1300*1100 |
|---|---|---|---|
| Weight:: | 3-10tons, According To Customer | Oltage:: | 220v-380v-440v |
| Final Product:: | Steel Plate | Shaft Material:: | 45# Steel Outer Diameter: 40mm Roll Material: |
| Roll Material:: | .Forged 45# Steel0mm | Warranty:: | 12 MONTHS |
| Highlight: | roofing sheet roll forming machine,container board roof roll forming machine |
||

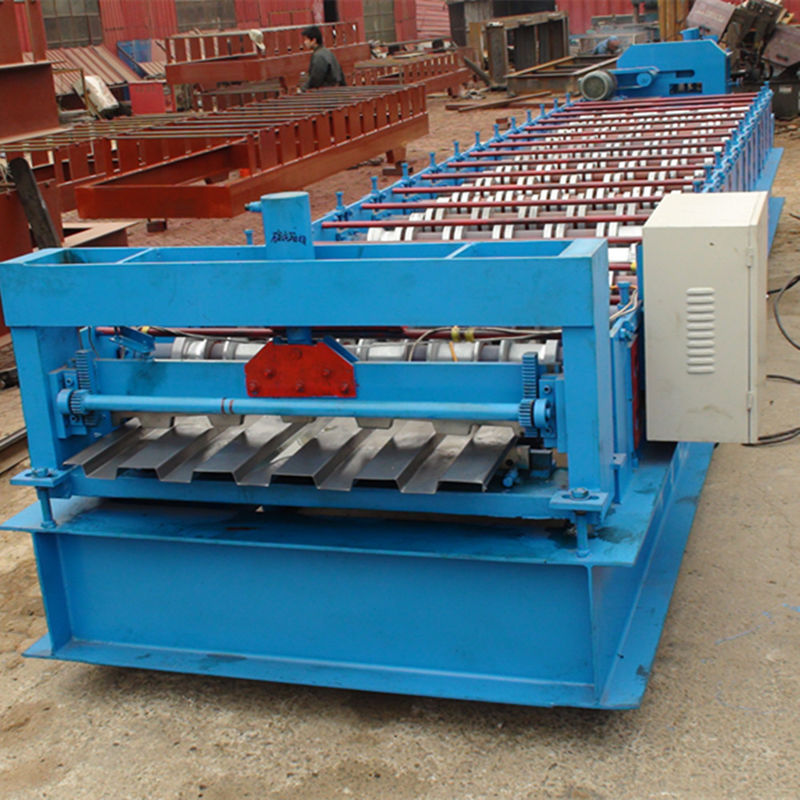

Aluminium Panel Container Board Roll Forming Machine Hydraulic Cutting
1. Processing technique and deployment
Processes: Manual decoiler — Roll forming machine — PLC system — Hydraulic system -Post cut - Run out Table
| Equipment and Qty. | |
| Decoiler | 1 set |
| Main roll forming machine | 1 set |
| PLC control station | 1 set |
| Hydraulic station | 1 set |
| Post cut | 1 set |
| Electric motor | 1 set |
| Output table | 1 set |
2. Technique parameters of the processing line
| Main parameters of Car Panel roll forming machine | ||
| 1 | Suitable to process | Color steel plate, galvanized sheet, aluminum coils and etc. |
| 2 | Width of the feeding material | 1000mm |
| 3 | Sheet width | 900mm |
| 3 | Roller station | 14 rows |
| 4 | Thickness of feeding material | 1.0-2.0mm |
| 5 | Productivity | 8-12m/min |
| 6 | Rollers' material | 45# steel |
| 7 | Diameter of shaft | 90mm |
| 8 | Weight | About 8 T |
| 9 | Length | 10 Meters |
| 10 | Voltage | 380V 50HZ 3 phases |
| 11 | Wall thickness of main forming machine | 14mm steel plate |
| 12 | Main forming machine body | 400 mm H steel |
| 13 | Motor power | 15 kw |
| Packaging Details: | 1. one 40ft container for loading one set machine with manual decoiler; 2. the whole Wiped Anti Rust Oil, PLC controller covered by foam film; 3. Spare parts and some small parts packed in plastic tooling box; 4. All Components Fixed by steel wire with Container. |
|---|---|
| Delivery Detail: | 45 days after receipt of buyer's deposit |
1. Installation and training:
a. If buyers visit our factory and check the machine, we will teach you how to install and use the machine,and also train your workers/technician face to face.
b. Without visiting, we will send you user manual and video to teach you to install and operate.
c. If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
2. After Sevice
a. One year guarantee for whole machine.
b. 24 hours technical support by email or calling
c. If there is any problem found of the machine, we will repair it for free in one year.
