Product Details:
|
| Type:: | Tile Forming Machine | Production Capacity:: | 8-12m/min |
|---|---|---|---|
| Power(W):: | 7kw | Dimension(L*W*H):: | 7.5*1.35*1.2m |
| Voltage:: | 380v 50HZ 3 Phase | Controller:: | PLC |
| Roller Driven Type:: | Chain Transmission | Steel Plant Thickness:: | 0.3-0.80mm |
| Warranty:: | 1 Year | ||
| High Light: | gutter making machine,ridge cap forming machine |
||

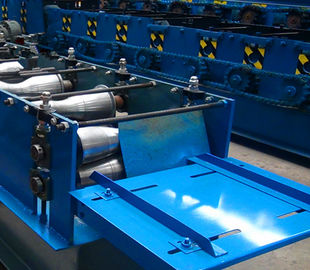

Aluminum Metal Roof Ridge Cap Making Machine 45#Steel Shaft 8-15M/Min
Color steel roll panel is the color coating steel plate and the roller of cold bending into various wave types of pressure plate. It is used in industrial and civil building, warehouse, construction, large span steel structure housing roof, walls, and internal and external wall decoration, is a lightweight, high strength, color rich affluence, convenient and quick construction, earthquake, fire, rain, long service life, maintenance free characteristics, has been widely appliedf.
| Technical parameters: | |||||||
| 1 | Name of commodity & specification | XN-312 ridge tile roll forming machine | |||||
| 2 | Main motor power | 4kw, 3 phase | |||||
| 3 | Hydraulic motor power | 3kw | |||||
| 4 | Hydraulic Pressure | 10-12MPa | |||||
| 5 | Voltage | 380V /3phase/ 50 HZ (or as your requirement) | |||||
| 6 | Control System | PLC Delta Inverter | |||||
| 7 | Main Frame | 400mm H-Beam | |||||
| 8 | Backboard Thickness | 18mm | |||||
| 9 | Chain Size | 33mm | |||||
| 10 | Feeding Material | color steel coils | |||||
| 11 | Feeding Thickness | 0.3-0.8mm | |||||
| 12 | Feeding Width | 600mm | |||||
| 13 | Effective width | 312mm | |||||
| 14 | Productivity | 4-8m/min | |||||
| 15 | Roll Station | 14 | |||||
| 16 | Roller Diameter | 65mm | |||||
| 17 | Roller material | 45# steel | |||||
| 18 | Cutter material | Cr12 , quenched | |||||
| 19 | Cr-Plating Size | 0.05mm | |||||
| 20 | Overall Size | 7500×1000×1200mm | |||||
| 21 | Total Weight | 3T | |||||
| 22 | Components | Manual Uncoiler-------------------1 set Guiding Platform------------------1 set Coil Strip Leveler------------------1 set Main Machine of Roll Forming------1 set Electric-Motor---------------------1 set Glazed Tile Pressing Device--------1 set Cutting Device--------------------1 set Hydraulic Station------------------1 set PLC Control-----------------------1 set Supporter Table-------------------1 set |
|||||
| 23 | Workflow | Manual decoiling----feeding and guiding----roll forming----pressing----cut to length----run out table | |||||
| 24 | Package | nude in the container | |||||
| 25 | Minimum order quantity | 1 set | |||||
| 26 | Payment terms | T/T(30% T/T pay in advance, the remaining 70% pay before ship) | |||||
| 27 | Delivery time | 30 working days later after receiving the deposit | |||||
| All technical parameters can be changed, according to user's need. | |||||||
Packaging and Delivery
Terms of Payment: 30% of the total contract value paid by T/T as down payment, the rest 70% of the total contract value to be paid by T/T after inspection by buyer in seller's factory while before delivery.
Delivery: 30 days after receipt of advance payment
Service: we send technician to your country to fix the machine.The buyer should bear all the cost including: visa, Roundtrip tickets and suitable accommodation, also buyer should pay salary 60USD/day.
Warranty: 12 months limited warranty
During warranty: parts are free but buyer pay for the shipping fee
1: How to play order: Inquiry---confirm the profile drawings and price----confirm the PI---arrange the deposit or L/C---then OK
2: How to visit our company:
Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),
then we can pick up you.
Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),then we can pick up you.
