SGS Plc 5 Inch Rain Gutter Roll Forming Machine

SGS Plc 5 Inch Rain Gutter Roll Forming Machine
SGS Plc 5 Inch Rain Gutter Roll Forming Machine SGS Plc 5 Inch Rain Gutter Roll Forming Machine SGS Plc 5 Inch Rain Gutter Roll Forming Machine SGS Plc 5 Inch Rain Gutter Roll Forming Machine

Large Image :  SGS Plc 5 Inch Rain Gutter Roll Forming Machine

Product Details:
Place of Origin: China
Brand Name: ZTRFM
Certification: CE. SGS
Model Number: Light keel machine
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Nude package with anti oil
Delivery Time: 60working days

SGS Plc 5 Inch Rain Gutter Roll Forming Machine

Description
Frame: 350 H-beam Welded Thickness: 16mm A3 Carbon Steel Seamless Welded
Roller Stations: 18 Forming Units Roller Shaft: 70mm-0.01~-0.03 With Key-way
Shaft Material: High Grade 45# Steel Driving Motor: 5.5KW
Speed: 15 To 20 Meter Per Minute
High Light:

plc rain gutter roll forming machine

,

5inch rain gutter roll forming machine

,

sgs cold formed steel machine

                                           5 Inch rain gutters rolling forming machine

5 Inch rain gutters rolling forming machine is designed to make rain gutters in batch fully automatically. Gutters are used for protecting the house from rain and snow and then put the water to the right place. Here we will share one type 5 Inch rain gutters rolling forming machine. Here is the drawing profile from clients for your reference:

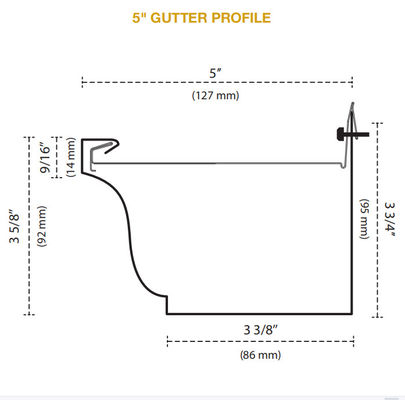

Drawing profile of rain gutter

About the installation of this type rain gutter:

How to use of such gutter



5 Inch rain gutters rolling forming machine Design:

Rain gutter rolling forming machine





Base Frame Structure 350 H-beam welded
Sidewall thickness 16mm A3 Carbon Steel seamless welded with base frame
Roller Stations 18 forming units
Connect Bar Diameter 25mm galvanized steel rod
Roller Shaft(Solid) 70mm-0.01~-0.03 with Key-way
Shaft Material(Hard) High grade 45# steel,lathe then polishing smoothly
Roller Material(Hard) High grade 45# steel,CNC lathe then chromed plated 0.05mm
Bearing type standard 6210(Wanxiang,Wuxi), single units inside wall box
Screw and bolts Common 8.8 standard
Transmission method 0.6 inch (Jindun,Hangzhou)
Driving motor 4.0KW(Lichao,Shanghai)
Motor reducer 4.0KW (Wujin,Changzhou)
Forming speed 10-12m/min



Main rolling machine of rain gutter





More details of the gutter rolling forming machine for your reference:

1. For all the leveling roller we choose the stainless material with gear inside to make sure the coil could be sent to machine easily without scratching the surface of the coil.

2. For the first three roller station we put the gear outside. It is good when feeding the coil more powerful.

3. The machine frame we use the thick steel and slop to make the sure the machine strong enough to use for a long time.

4. We choose the portable PLC for easy installation and easy to operate like the smart cellphone.

5. We have the seriously quality control system.



How we control the quality of finished product rain gutter:

Quality control

PERFORATIONS of the cover

• 7/64" (2.8 mm) in diameter

• Drains 29.7" (754 mm) of water per hour

• Offers the perfect balance between maximum drainage and debris protection

Punching drawing of cover

If you want to make such sheet we also can design for you.
