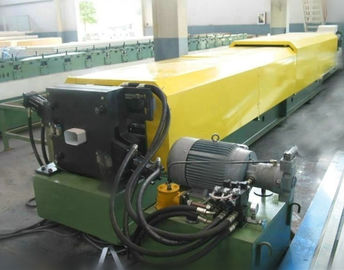

Rain Gutter Gutter Rolling Machine / Welded Pipe Roll Forming Machine

Rain Gutters Installation Downspout Roll Forming Machine

welded pipe roll forming machine

JK50 is intended for manufacturing of high frequency straight seam welding tube , square tube and special shapes tube of Φ19mm-Φ63.5mm with thickness of 0.7mm–2.5mm. The production line adopts advanced pass technology, PLC automatic control system, with stable operation, convenient operation and repair, and reached the advanced level in the same industry in the structure and accuracy. Equipment from the material to tube run out, the speed adjusts according to the tube specification changing.

O.D.:Φ19~Φ63.5 Square and rectangle tube:20*20~ 50*50

Tube wall thickness:round tube0.7~2.5 square tube:0.7~2.0mm

Milling speed:30~90m/min

The whole production line work flow like:

Raw material→ uncoiling → shearing and butt-welding → accumulator →leveling→ mill-forming →high-frequency welding → deburring → cooling(water colling) → sizing →straightening → fixed length cutting →run-out table

From the work flow we can see that it's a long production line, need about 50m length and 3m height workshop to start the machine.

We can provide the whole machine units for clients, and make the layout according to client's workshop design. The normal cutting length will be 6m and 9m, the flying saw can track the pipe and cutting to length with the PLC control command.

Please see some machine units as below:

the double heads uncoiler	vertical-type accumulator
roll forming machine	sizing forming machine
flying saw cutting system	pipe making roller

Because of the high frequency welding, the roll forming machine can not stop before finish work.The tracking flying saw cutting is very important instead of the hydraulic post cutting.
