Product Details:
|
| Type:: | Tile Forming Machine | Production Capacity:: | 8-12m/min |
|---|---|---|---|
| Power(W):: | 7kw | Dimension(L*W*H):: | 7.5*1.35*1.2m |
| Voltage:: | 380v 50HZ 3 Phase | Controller:: | PLC |
| Roller Driven Type:: | Chain Transmission | Steel Plant Thickness:: | 0.3-0.80mm |
| Warranty:: | 1 Year | ||
| High Light: | ridge cap machine,ridge cap forming machine |
||

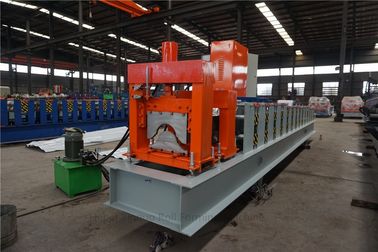

Roof Ridge Cap Tile Cold Roll Forming Machine 4 Kw Hydralic System
The archaistic tile sheet is rolled and pressed by modular tile making machine,it has many features,such as good appearance,primitive simiplicity and elegance,unique style,noblest grade,and etc. It is widely used in garden style factories,scenic resorts,pavilions,hotels,villas,exhibition halls,country clubs,and so on for outdoor decorations.
Roof tile making machine consists of uncoiler and its base,infeed guides,fixed position driven forming stations,pressing die,shearing device,hydraulic station,PLC control console and so on.Our company has dozens of profile models for this series roll forming machine,We can design different kinds of profile and fittings for machine,as per customers' requirement.
|
No. |
Steel Bamboo Roofing Sheets Making Machine/glazed tile roll forming machine | |
| 1 | Suitable material | Color steel sheet ,galvanized steel sheet, aluminium sheet |
| 2 | Width of material | 500mm or as you required |
| 6 | Thickness of material | 0.3-0.8mm or as your needs |
| 2 | Working speed | 12m/min |
| 3 | Main motor power | 3kw with cycloidal reducer |
| 4 | Hydraulic station power | 4kw |
| 5 | Electrical control system | PLC control system |
| 7 | Shaft diameter | 80mm |
| 8 | Roller station |
14 rows
|
| 10 | Dimension | 7500x1500x1910mm |
| 11 | Weight | About 4 T |
| 12 | Voltage | 380V 3phase 50HZ or as the customer's requirements |
| 13 | Material of roller | High grade 45# forged steel plated with hard chrome plating |
| 14 | Material of cutting | Cr12 mould steel with quenched treatment |
| 15 | Working time | Can be 24 hours |
| 16 | Workers | 1-2 only |
Please Note: All the parameters can be designed as your requirement.
Let me show you how to operate Steel Bamboo Roofing Sheets Making Machine :
Decoiling→Feeding & Guiding→Roll Forming→ Cutting→Finished Products To Support Table
| Packaging Details: | 1. one 20ft container for loading one set machine with manual decoiler; 2. the whole Wiped Anti Rust Oil, PLC controller covered by foam film; 3. Spare parts and some small parts packed in plastic tooling box; 4. All Components Fixed by steel wire with Container. |
|---|---|
| Delivery Detail: | 30 days after receipt of buyer's deposit |
A: Warranty: One year ,and we will provide the technical support for the whole life.some spare parts are available.
B: Training: the buyer should charge of visa, round-tripticket, food and accommodation overseas and USD100/person/day for salary.
C: The advantage of my factory: we have a team of skilled engineers and one group for after-sale service. The customer can find us in China or aboard. We go aboard 2-3 times each year to participate exhibition and visit customers.
1. You are trade company or factory
- We are trade company but we also have own factories. Building trade company is just for exporting various types of cold roll forming machines.
2. Why your price is higher than others
- As we persist on that each factory should put quality at the first place. We spend time and money on developing
how to make machines much more automatic, accurate and high quality. We can make sure that our machine could use more than 20 years without any problem. We can provide 2 years free quality assurance.
3. How long the machine could be made
- Normally speaking, welded pipe making machine could be made without 45 working days. If you need machines in a hurry, we can make it for you less than a month.
