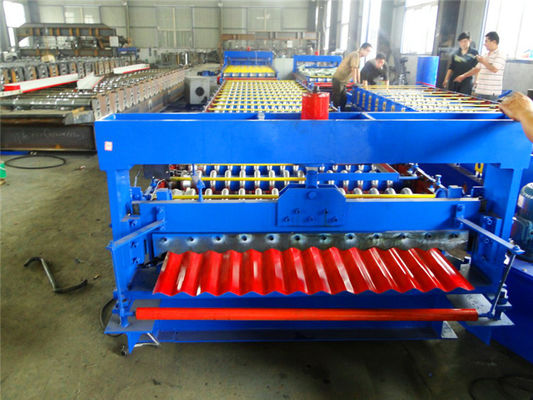

Corrugated Iron Roofing Sheet Roll Forming Making Machine PLC Control High Speed
Product Description
1. what is the description of roof tile roll forming machine
| Machine description | Quantity | Delivery time | Container type |
| roof tile roll forming machine | 1 SET | 40working days after deposit | one 40GP |
2. what is the production process of roof tile roll forming machine
Uncoiling--->Feeding material into machine-->Roll forming --->Measuring length --->Step formed--->Auto cutting--->Pruducts receving.
3. what is the specification of roof tile roll forming machine
| name | roof tile roll forming machine |
| material | Color steel sheet |
| thickness | 0.3-0.8mm |
| Coil inner diameter | 450-550mm |
| Max coil out diameter | 1300-1600mm |
| Max coil width | 1250mm |
| Carrying capacity | 5T |
| Forming steps | 13rollers |
| Shaft diameter | 80 mm |
| Design type | pillar structure |
| Roller material | 45 # steel chrome plating chromium |
| Shaft material | 40Cr steel |
| Work speed | 4-12m/min |
| Transpor | by chain |
| Type of cutting | hydraulic |
| Cutting tolerance | whthin 1mm |
| Cutter | Gcr12 |
| Material of blades | Cr12 quenched |
| PLC | Delta |
| Counter | Omion |
| Voltage | as required |
| Dimension | 7000x1500x1910mm |
| Weight | About 5 T |
| Workers | 1-2 only |
4. Company Information
Cangzhou Kingter Roll Forming Machinery Co., Ltd is a professional manufacturer and exporter of cold roll forming machines. All products comply with international quality standards and are greatly appreciated in markets throughout the world, such as Asia, Africa, Europe,South America, Australia and so on.
We specialized in manufacturing metal roofing roll forming machine, purlin machine, Glazed tile roll forming machine, floor tile making machine, rolling shutter machine, metal stud roll forming machine,highway guardrail roll forming machine,steel door frame making machines, gutter machine,no beam roof tile machine, pipe welding machine.
