High Precision Automatic Corrugated Roll Forming Machine 350 H Plate Chain Drive

High quality High Precision Automatic Corrugated Roll Forming Machine 350 H Plate Chain Drive from China, China's leading product market sheet roll forming machine product, with strict quality control corrugated iron sheet making machine factories, producing high quality corrugated iron sheet making machine Products.

SKU: b99b8fce1bfa Category: Tags: , ,

Automatic Corrugated Roll Forming Equipment 350 H Plate Chain Drive



Product Description



1. High Precision And Speed

2. CE,ISO certification

3. Customization Accept





General Machine Parameters



Suitable material PPGI/PPGL/GI/Aluminium
Machine Sizes 8500mm×1500mm×1300mm
Main motor power 5.5KW with Cycloidal reducer
Hydraulic station power 4KW
Hydraulic oil 36#
Thickness of material 0.3mm~0.8mm
Diameter of principal axis Φ70mm
Material expand width 1000-1200mm
Electric tension 380V 3phase 50HZ~60HZ or as your request
Material of roller High grade 45# forged steel,quenched and hard chromed 0.05mm
Rolling galvanization thickness 0.05mm
Processing speed 12-16m/min
Processing precision within 10m+/-1.00mm
Material of cutting blade Cr12 Mov with quenched treatment
Kind of drive 1 inch chain link bearing model 6210
Roller station 16 Steps / 16 Steps



3. Computer Control Carbinet (English/Russian Text Screen)



PLC “Mitsubishi”/"Delta"
Length Controller “OMRON”
Switch CHNT
Frequency Changer "Sanjing"

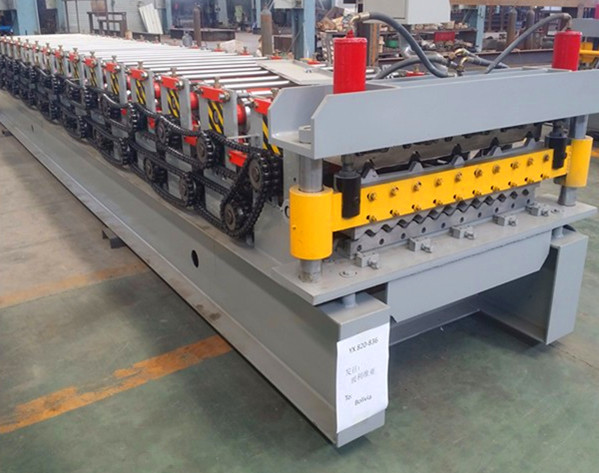

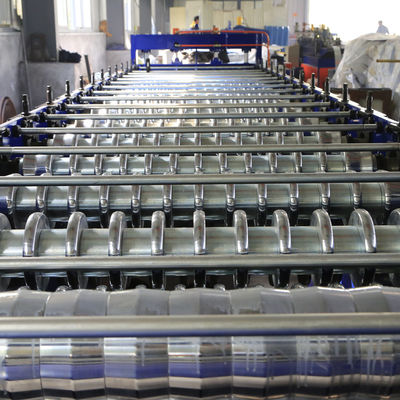

Product Show
