1. The technical data of corrugated sheet metal roof making machine
|
Technical parameters of corrugated sheet metal roof making machine
|
||
| 1 | Name of commodity & specification | JK-850 steel roofing sheet making machine |
| 2 | Main motor power | 3kw |
| 3 | Hydraulic motor power | 3kw |
| 4 | Hydraulic Pressure | 10-12MPa |
| 5 | Voltage | 380V /3phase/ 50 HZ (or as your requirement) |
| 6 | Control System | PLC Delta Inverter |
| 7 | Main Frame | 300mm H-Beam |
| 8 | Side panel Thickness | 14mm |
| 9 | Chain Size | 20mm |
| 10 | Feeding Material | color steel coils, galvanized sheet, aluminium coils |
| 11 | Feeding Thickness | 0.3-0.8 mm |
| 12 | Feeding Width | 1000mm |
| 13 | Effective width | 850mm |
| 14 | Productivity | 8-12m/min |
| 15 | Roller Station | 9 |
| 16 | Roller Diameter | 70mm |
| 17 | Roller material | 45# steel |
| 18 | Cutter material | Cr12 , quenched |
| 19 | Cr-Plating Size | 0.05mm |
| 20 | Overall Size | 5600×1300×1100mm |
| 21 | Total Weight | 3T |
| 22 | Components | Manual Uncoiler-------------------1 set Guiding Platform------------------1 set Main Machine of Roll Forming------1 set Electric-Motor---------------------1 set Cutting Device--------------------1 set Hydraulic Station------------------1 set PLC Control-----------------------1 set Supporter Table-------------------1 set |
| 23 | Workflow | Manual decoiling----feeding and guiding----roll forming----cut to length----run out table |
| 24 | Package | Main machine is nude in the container |

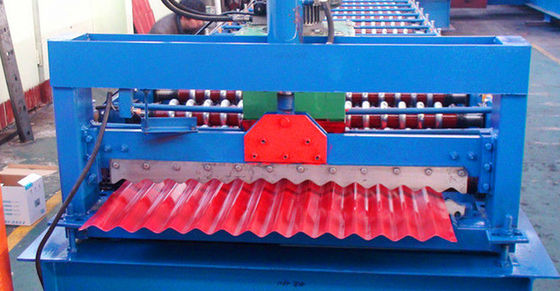

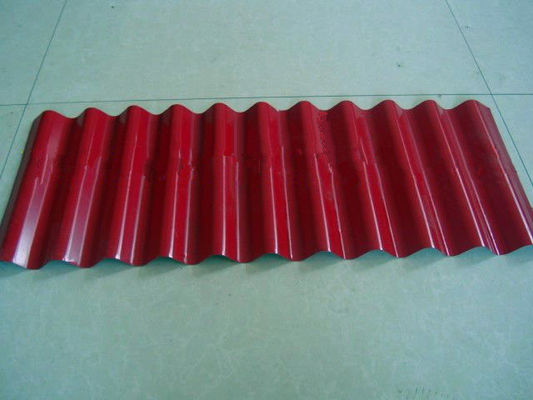

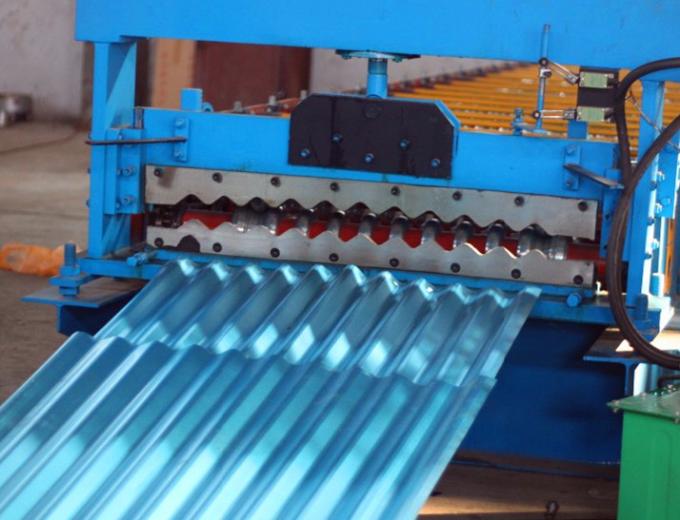

2. There are some pictures of corrugated sheet metal roof making machine
