1250MM Width Roofing Corrugated Sheet Roll Forming Machine Low Noise

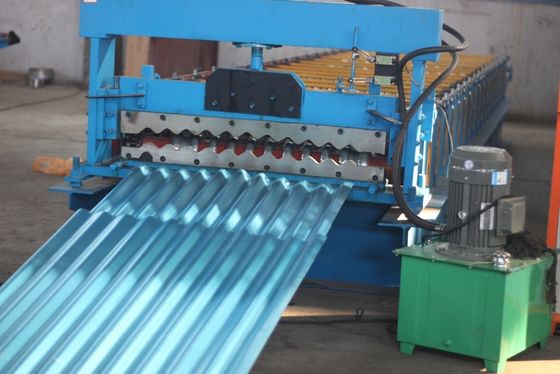

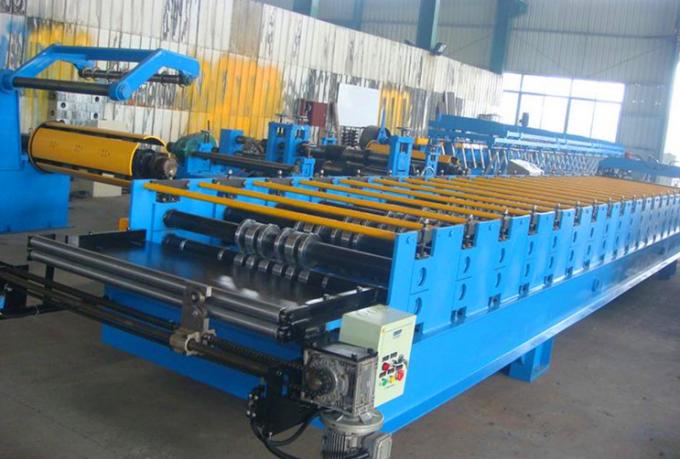

Detailed Images of corrugated roller machine
decoiler
drive: manual
Inner Diameter: 450-550mm
Outer Diameter: max 1600mm
Max Coil width: 1250mm
Carrying capacity: 5 T

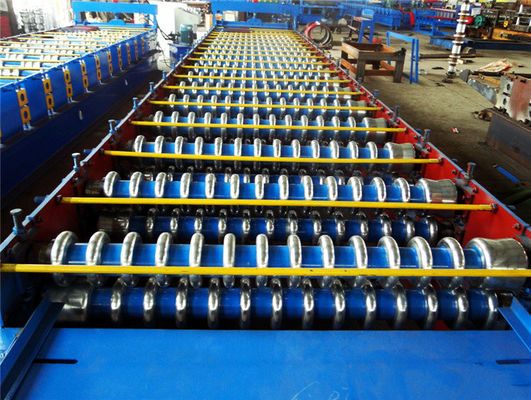

Main Forming Machine
Forming steps : 13 rollers
Shaft diameter: 80mm
roller material: 45# steel with tempering
shaft material: 40Cr steel
Transport : By chain
Type of cutting and punching: Hydraulic
Cutting tolerance: ±1mm
Cutter quantity: 2 set
Shearing machine
Material of blades: Gcr12 quenched
Power supply : hydraulic power
Frame : Pillar style with rack & pinion system
Stroke switch : non-contact photoelectric switch
hydraulic station
Hydraulic oil: 46#
Hydraulic power: 3kw
Cutting length : As required
feasure: no distorting or wasting. High level safety factor
control device
PLC Control : Speed regulation control cabinet
language: As required
Touch screen: Delta
Function: Automatic length and quantity measurement
Packing & Delivery
| Packaging | |
|
Packaging Details |
1.One 20ft or 40ft container for loading one set machine with manual decoiler. 2.The whole wiped anti rust oil ,PLC controller covered by foam film. 3.Spare parts and some small parts packed in plastic tooling box. 4.All components of Deck Roll Forming machine fixed by steel wire. |
Our Service
training
a. send you user manual and videos.
b. If buyer needs our technicians to go to your factory, the buyer need pay the technician USD80/day for salary .
c. There need one technician. for one week.
After-Sales Service
a. One year guarantee for whole machine.
b. 24 hours technical support by email or calling
c. If there is any problem found in ourmachine, we will repair it for free in one year.
