Light steel frame roll forming machine
Light steel frame machine is used structure houses. The profiles used in this kind of house are produced by cold bending forming methods. These profiles are assembled into a structural steel frame by screws and bolts at the construction site, and can also be applied to various wall and floor structures. After the frame has been lapped, the building can be completed by installing an outer layer of insulating material or painting concrete. The system can be applied to all characteristic types of buildings, such as schools, residences, offices, hotels, hospitals, factories and warehouses, etc. Different types of profiles produced by light steel frame machine can replace wood in residential and light commercial buildings. It is very suitable for load-bearing walls and interior rooms. The frame is very similar to wood, and because the positions of the screw holes on the profiles are produced through rigorous calculations, there is almost no need to spend time on drilling and determining the hole distance at the work site. Because it is made of metal, light steel structure houses will not rot, split, warp, shrink, burn, or be eaten by termites. Compared with wooden frames, steel frames generate less on-site waste, thereby reducing the cost of debris removal.

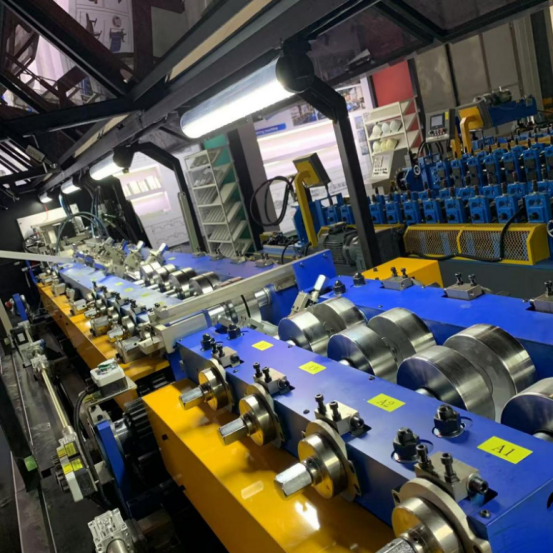

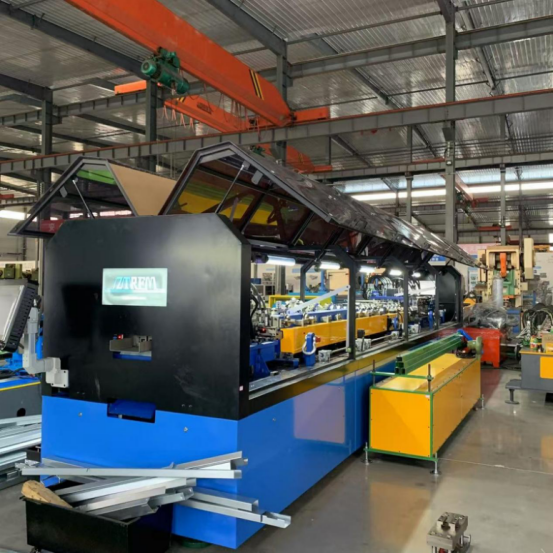

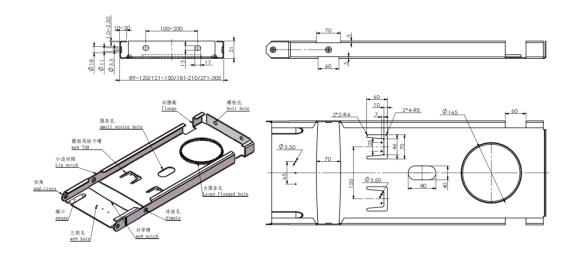

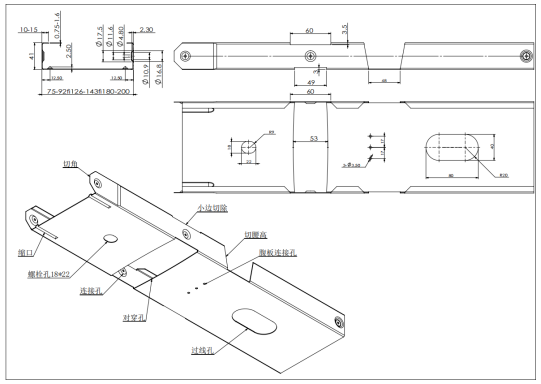

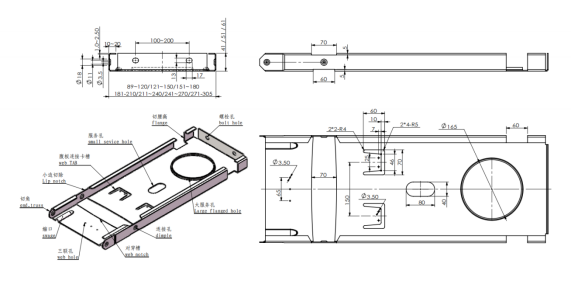

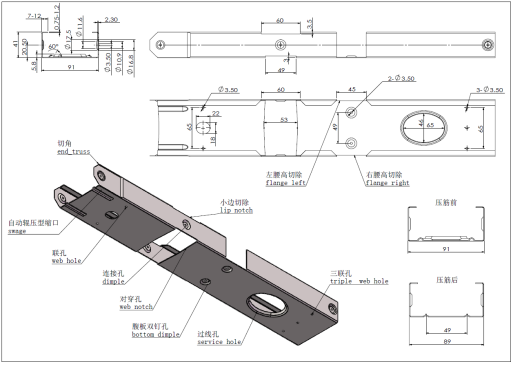

Here are some drawing profiles for your reference:

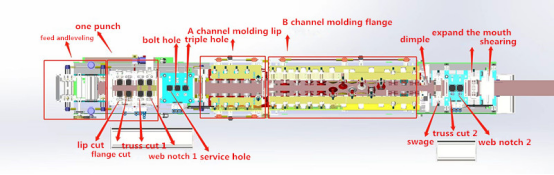

Layout drawing

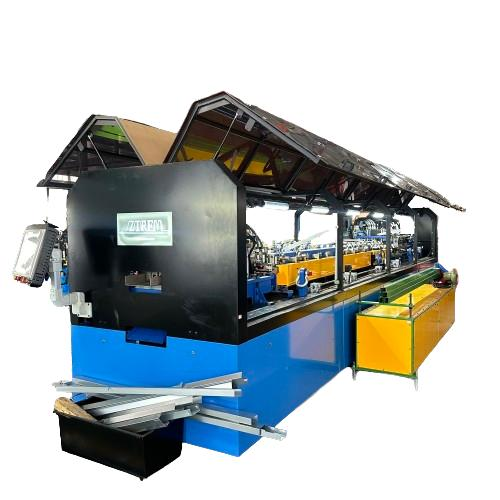

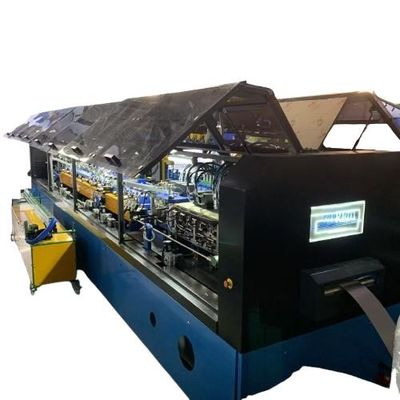

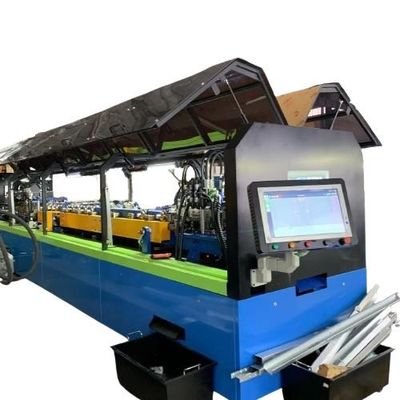

Light steel frame roll forming machine
Advantages of Light steel frame roll forming machine
Fast speed and high precision:This machine can achieve high-speed production and high-precision production.

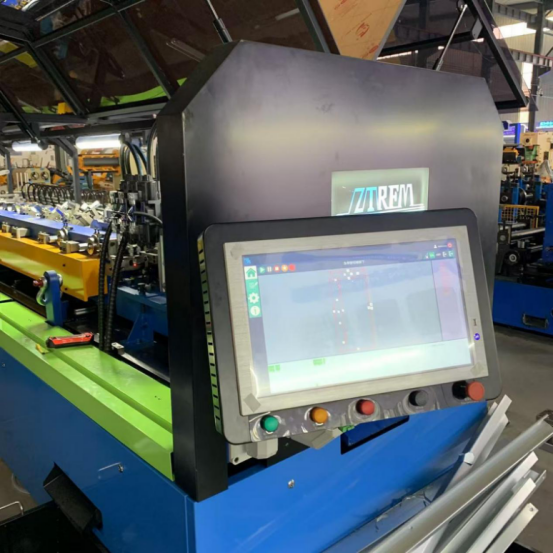

Machines are much smarter:The designed installation drawings into the computer transmission, can be mass production. Mass production products can be a wall, the same model or custom mass production can be decided by themselves. At the same time, the production of good products can also be sprayed with code and packaging, which is convenient and easy to install.
| NO. | Product name | Specifications and models | Quantity | Remarks |
| 1 | XBIM-M-CZ Cold-bending molding control system | 1.0 | 1 | More than one thousand batches of efficient import, control accuracy of ± 1mm, seamless data upload, download |
| 2 | LN Fast input system (short name: fast input system) | V1.4 | 1 | Office offline input data, save more than 50% of the on-site input time, data management is more secure and reliable |
| 3 | XBIM Equipment Cloud System (XBIM System) | 1.0 | 1 | Realize the factory-level Internet of Things, equipment interconnection, and real-time presentation of production information by mobile phone, Pad and PC. |
| 4 | Control by computer | 1 | I5CPU, large memory, support 4G network card network interconnection to achieve MES direct connection |
Convenient adjustment:In order to facilitate production, in the case of constant waist height, only need to adjust the bottom width, that is, transform the corner and the groove mold. And within 17mm, there is no need to replace the mold, only need to adjust the bottom width can be. For example, the production of 75-92mm products does not need to replace the mold, the production of 75-100mm products need to replace the mold.
The following are the specifications and technical parameters of the different types of machines
Unit type:MF-2000
Technical standard
| Equipment name:MF series computer input digital change + power button change keel equipment | Unit type: MF-2000 | Intelligent version of the servo-motor drive | ||||||||
| 一,Device configuration parameters | ||||||||||
| 1 | Master | Feeding | Guide shaft + Guide wheel | |||||||
| Leveling | On two next three + two channels | |||||||||
| Main forming | 17 Composition (one of which is a roller set of 87-95 degrees) | |||||||||
| Straighten | Calibration components | |||||||||
| Production of plate specifications and punching; |
With: (75-92,126-143,183-200 any specification can achieve the following punching, the specific size is as follows:)
|
|||||||||
| 其他 | 上下辊轮间隙自适应,配备双重动力牵引 | |||||||||
| 压筋 | 根据生产数据自动切换有无压筋 | |||||||||
| 剪切 | 三片刀定规格剪切 | |||||||||
| 2 | 控制系统 | 主控柜 | 21寸触摸屏(装在设备右上方)+电器主控柜1台(装在设备侧面) | |||||||
| 控制软件 | LG-R1(大禾众邦轻钢别墅专用数控NC控制软件) | |||||||||
| 喷码 | 一体喷墨(双喷头,两侧腰高对喷) | |||||||||
| 外接控制器 | 无线遥控器控制,并在设备的前后护罩上设急停按钮； | |||||||||
| 主配件品牌 | PLC(日本松下),光电开关(欧姆龙),接近开关(韩国奥托尼克斯),长度编码器(国际高端品牌),伺服电机(汇川) | |||||||||
| 3 | 司服与液压系统 | 司服电机 | 伺服电机(7.5KW)+精密行星齿轮减速机(台湾APEX) | |||||||
| 液压站 | 液压站功率7.5KW | |||||||||
| 油箱容积160升 | ||||||||||
| 主件品牌 | 电磁阀德国力士乐 | |||||||||
| 4 | 放料机 | 载重 | 3吨 | |||||||
| 撑紧方式 | 手摇连杆式,中心向外撑紧 | |||||||||
| 刹车 | 主轴双抱紧 | |||||||||
| 驱动 | 自动驱动送料 | |||||||||
| 5 | 托料台 | 托料长度 | 4米 | |||||||
| 托料方式 | 固定式托料台+储料台 | |||||||||
| 6 | 性能参数 | 轧辊 | 材质:GCr15 | |||||||
| 加工工艺:数控加工后热处理至HRC58-60,再精车抛光电镀 | ||||||||||
| 轴 | 材质:40Cr | |||||||||
| 加工工艺:数控加工后调质处理HRC28-32,再精车抛光电镀 | ||||||||||
| 重量 | 整机重量约3.8吨 | |||||||||
| 二,生产产品参数 | ||||||||||
| 1 | 生产产品规格 |
|
||||||||
| 2 | 出板速度 | 高速48米/分钟,(实际生产速度根据打孔数量) | ||||||||
| 3 | 材质适用 | G550镀锌带钢 | ||||||||
| 三,随附配件及备件 | ||||||||||
| 备件 | 附清单 | 工具 | 一套 | |||||||
| 说明书 | 电子档集成在控制软件中 | 护罩 | 全封闭式防护罩 | |||||||
| 设备颜色 | 主体颜色:象牙白+深蓝色,腰线:深蓝色,机架:灰黑色,上部可推拉黑色透明有机玻璃； | |||||||||
Unit type:MF6S-3005
| 设备名称:MF系列 电脑输入数字换型+电动按钮换型龙骨设备 | 设备型号:MF6S-3005 | 伺服电机驱动 | ||||||||
| 一,设备配置参数 | ||||||||||
| 1 | 主机 | 进料 | 导向轴+导向轮 | |||||||
| 整平 | 上二下三+ 两道引送 | |||||||||
| 主成型 | 19道成型(其中一道为腰高成型87-95度任意调辊组) | |||||||||
| 校直 | 校直组件 | |||||||||
| 引送 | 配传动,上下轴齿轮驱动 | |||||||||
| 可生产的板型规格及冲孔 |
冲孔模具包含: 1.腰高切除模具； 2.腹板螺栓连接孔13*17； 3.过管翻边孔165； 4.腹板卡扣； 5.联接钉窝孔M4.8; 6.过线孔40*80； 7.三联孔； 8.对穿孔(四个尺寸范围,详见板型图)； 9.切小边； 10.切角(四个尺寸范围,详见板型图)； 11.线上缩口； 12.线上扩口冲模(规格150以上)； Related products | |||||||||
