High speed 30m/min flat ceiling T bar rolling forming machine

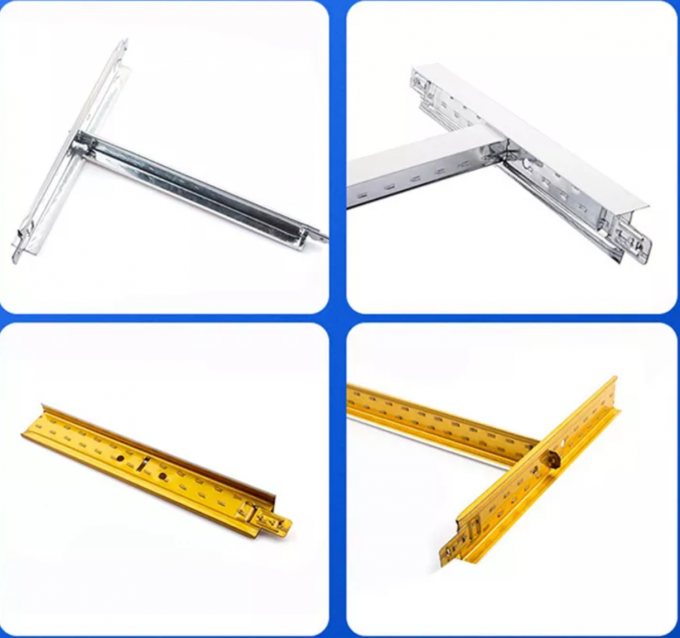

We can supply Ceiling T bar making machines in various types;We also offer all kind of fully automatic metal drop ceiling tile production line for manufacturing different sizes of ceiling boards such as 600*600mm, 300*300mm, 600*1200mm. With the metal ceiling tiles from these machines, these can be fabricated into a whole Exposed metal ceiling suspending system.

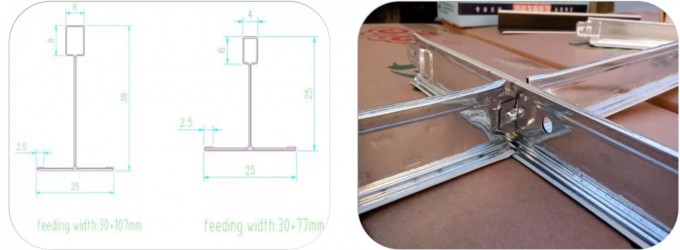

Take the following drawing profile for your reference:

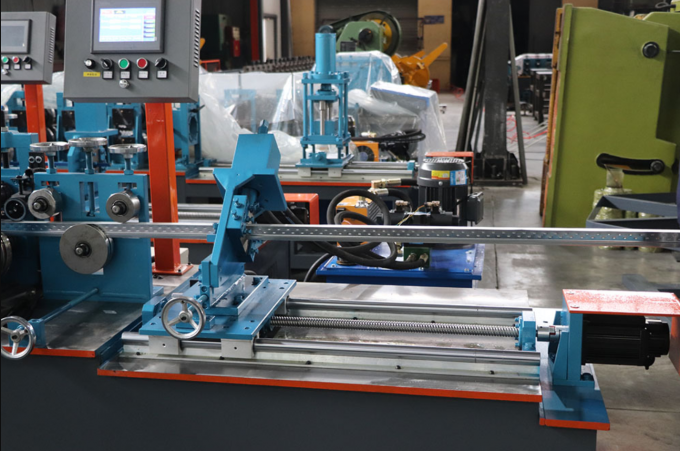

Here are more options for your reference:

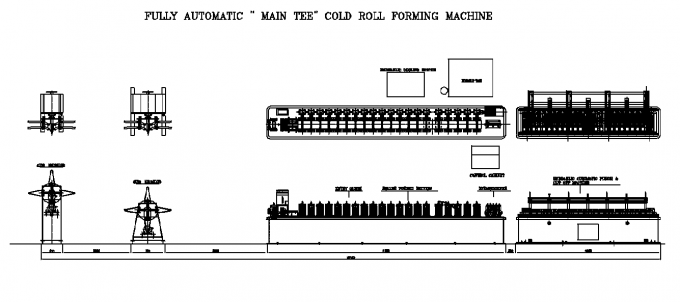

High speed 30m/min flat ceiling T bar rolling forming machine design:

High speed 30m/min flat ceiling T bar rolling forming machine technical features:

1. Fully automatic production including auto decoiler, continuously roll forming and automatic cutting off.

2. High speed, including the punching, the speed can reach 30 meter per minute.

Full Worm wheel gearbox reducers driving or high quality gear and chain transmission as options to made according to customer budget.

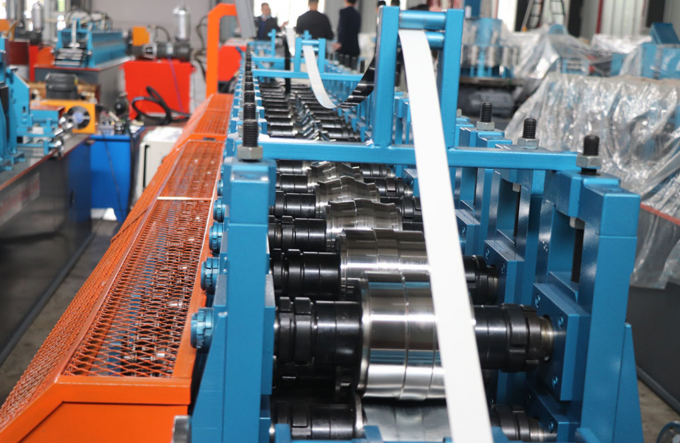

High precision main roll forming station with one whole set 13 punching dies for main T.
High precision PLC and Servo feeder control -Machine protection for your choice.
Good brand elements for long time to use.

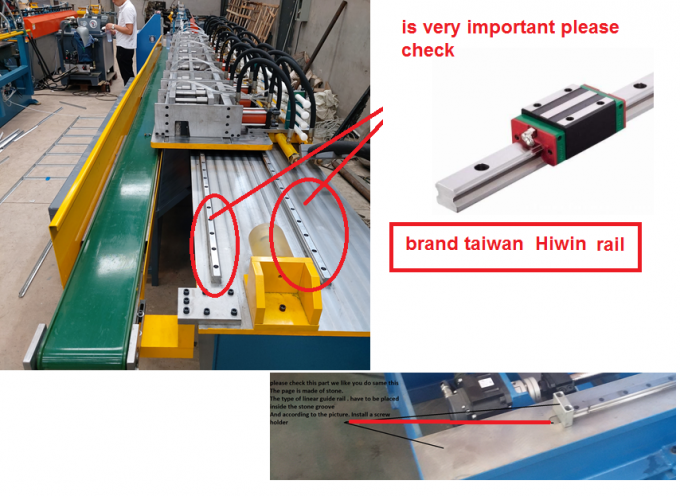

As to the punching part for main T is the most different part, it can enhance the machine working speed meanwhile keep the high speed of working:

1.Processing flow diagram of machine

Manual decoiler( TWO pcs )→ Feeding material into machine →Roll forming machine -necks- - >punching&(with logo ) →Measure length→Hydraulic cutting → Finished Products& (output table)

Here are some basic parameters of High speed 30m/min flat ceiling T bar rolling forming machine for your reference:

Main Forming machine	Forming steps	18 stations
	Shaft diameter	50mm
	Design type	Pillar frame

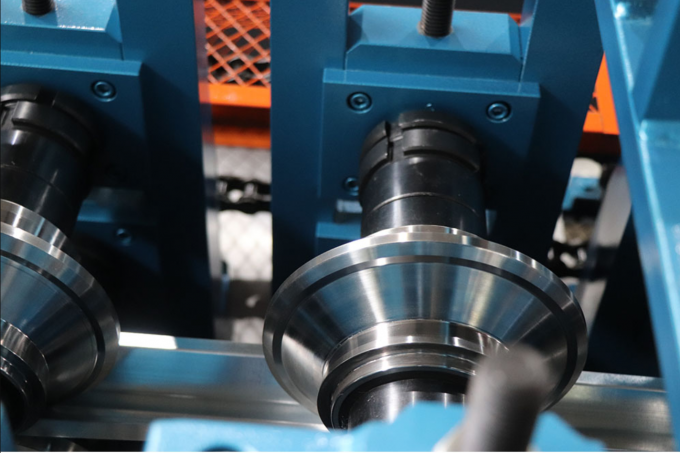

	roller material	GCr12MoV
	shaft material	45# steel
	Work speed	25-35 m/min
	Transport	By gear
	punching station	With 13 punching station for Main tee
	Motor brand	K series
	Power of main machine	5.5 kw
