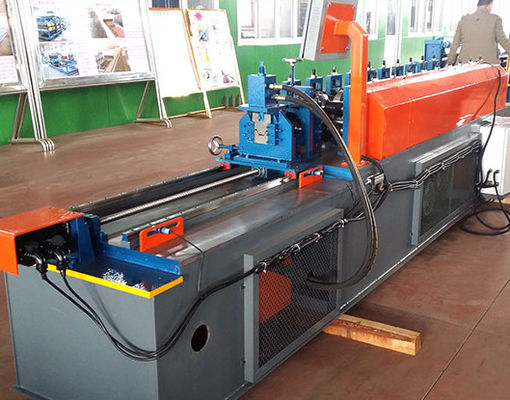

Light Steel Keel Roll Forming Machine/c u /omega Type 8-15M/Min High Speed
Product Description
1, Machine Components:
1) Manual Decoiler 1 set
2) Main Machine 1 set
3) Control System 1set
4) Hydraulic System 1 set
5) Output Table 1set
2. Technical Process:

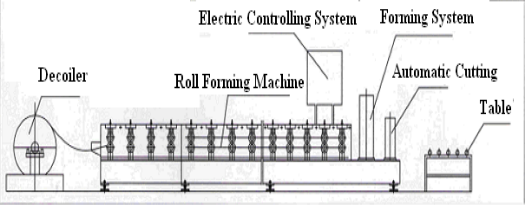

Decoiler--Guided Feeding--Roll Forimg--Cut to Length--Collection Table
3.Technical Parameter:
Main machine:
| Suitable material | Steel Belt |
| Main motor power | 3KW |
| Hydraulic station power | 4 KW |
| Hydraulic oil | 36# |
| Thickness of material | 0.6-1.5mm |
| Diameter of principal axis | Φ50mm |
| Electric tension | 380V 3phase 50HZ |

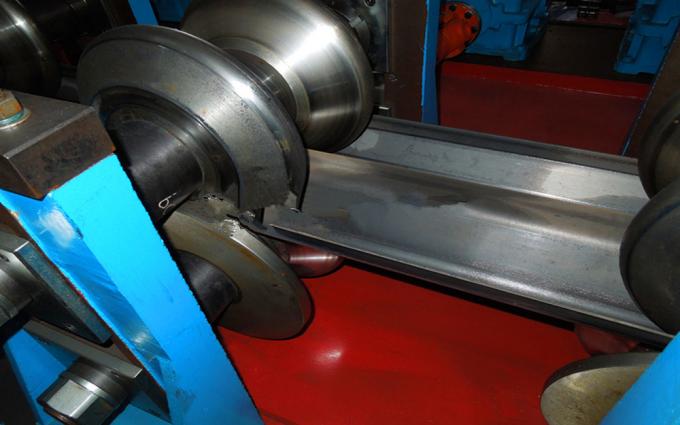

| Material of roller | CGr15 bearing steel HR58-60 |
| Galvanization thickness | 0.05mm |
| Processing speed | 15m/min |
| Processing precision within | 10m+/-1.00mm |
| Material of cutting blade | Cr12 mould steel |
| Kind of drive | Sprocket&Chain |

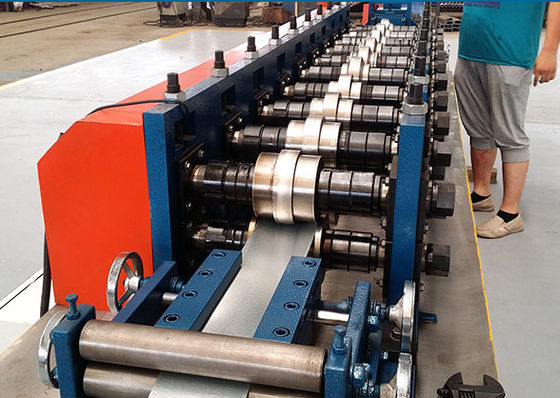

| Roller station | 11 Rollers |
| Dimension | 5.5m*0.9m*1.2m |
| Weight | 3.5Ton |
| Screen | 5.7 inch Taida screen |
| PLC brand | Taida DVP14ES |
Hydraulic decoiler:
| Material coiler inner diameter | 450mm-700mm |
| Max coiler width | 600mm |
| Carrying capacity | 1500kg |
| Hydraulic power | 1.5kw |
| Pump inner diameter | 120mm |
| Working pressure | 12Mpa |
Packaging:
1. Seaworthy export standard packing for the machine. All machine parts are well fastened and fixed by blocks and wire ropes.
2. Normally one machine needs one 40 feet container for shipping.
Company Information:
Our company is a cold forming automatic production line manufacturer.which with greatest strength powerful technical force and complete sets of equipment.our company has been engaged in manufacturemore than 15 years .we have developed more than ten series of steel rol forming machines.such as production lines for wall&roof sheet ,color steel tile ,C&Z shape production line ,glazed tile.floor board .all kinds of sandwich panels,curving machine for roof sheets .etc.
