Double Line Light Gauge Keel Stud Track Roll Forming Machine c Channel Steel
Product Description
| Machine Description | Quantity | Delivery time | Container Type |
Price/ USD (FOB TIANJIN) |
| c channel roll forming machine | 1 SET |
45 working days after receiving deposit |
One 20GP | 7900---19900 |
Galvanized Steel Sheet C U Channel Double Line Light Keel Roll Forming Machine Process Flow:

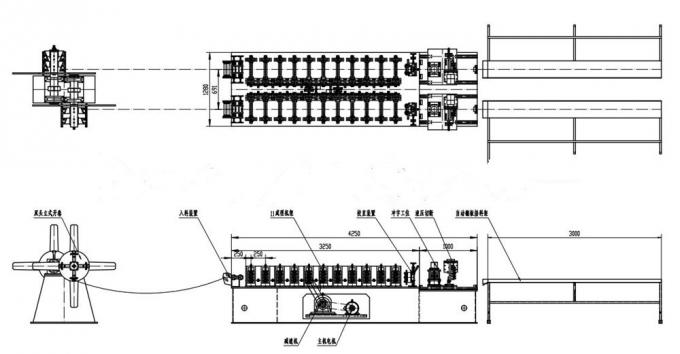

Uncoiling→Feeding material into machine→Roll forming→Measuring length→ Auto cutting→Products receiving
| Product name | Used frame machine for sale | |||
| NO. | Items | Parameters | Remark | |
| 1 | Suitable Material | Type | GI/PPGI/AL | |
| Thickness | 0.40-0.80mm | |||

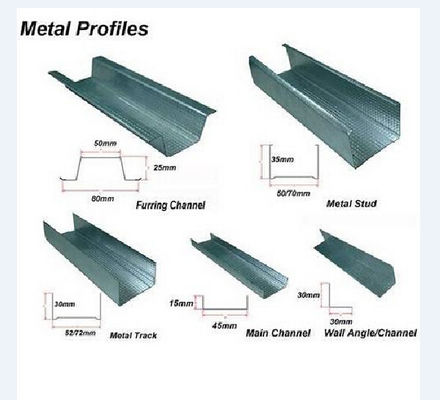

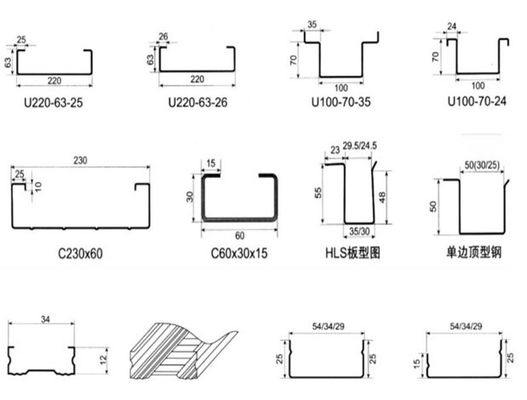

| 2 | Product Specifications | Length | Any length | |
| Length Tolerance | ±2mm/6m | |||
| 3 | Working Speed | 15- 25 m/min | Standard machine | |
| 4 | Control System | Mitsubishi/Siemens PLC& transducer | Custom | |
| 5 | Total Power | 6KW | ||
| 6 | Total Weight | About 3T | Up to final design | |
Components of Galvanized Steel Sheet C U Channel Double Line Light Keel Roll Forming Machine:
| No. | Name | Unit | Qty |
| 1 | Manual decoiler | set | 1 |
| 2 | Main forming machine | set | 1 |
| 3 | PLC control system | set | 1 |
| 4 | Hydraulic pump station | set | 1 |
| 5 | Post cut | set | 1 |
| 6 | Electric motor | set | 1 |
| 7 | Output table | set | 1 |

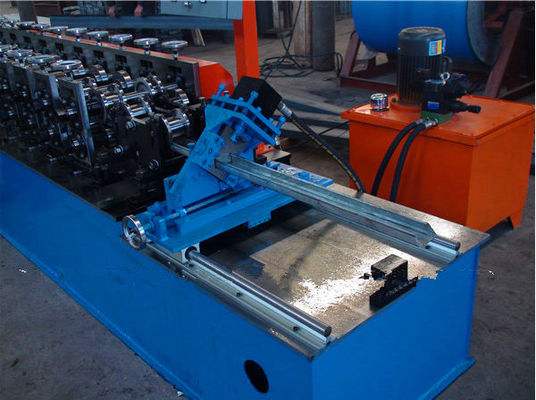

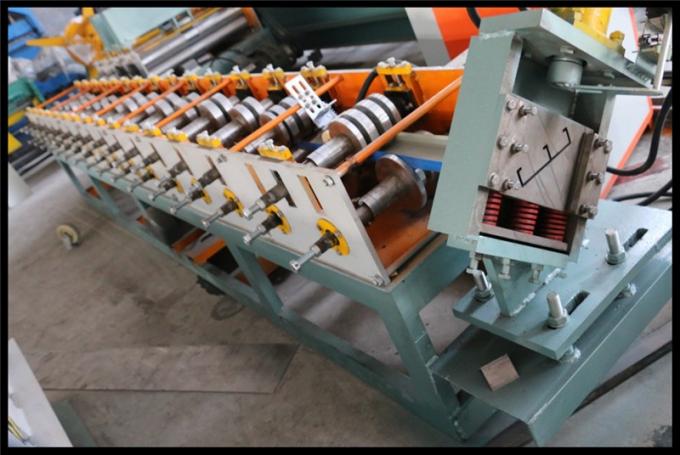

Galvanized Steel Sheet C U Channel Double Line Light Keel Roll Forming Machine Forming device:
Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chaintransmission,roller was chromed which can keep the molding plate surface smooth and not easy to be marked when it is working Feature : Ensure stability , precision and lifetime.
| No. | Main parameter of ceiling c channel forming machine | |
| 1 | Length of the main part | 3000*800*1400mm |
| 2 | Weight of main part | About 3 t |
| 3 | Voltage | 380V/50HZ3Phase (as customer's request) |
| 4 | Roller fixer | Guide column |
| 5 | Frame |
Middle plate welded Memorial arch frame type |
| 6 | Frame thickness | 25mm |
| 7 | Drive mode | Gear or chain |
| 8 | Material of rollers | 45# steel with tempering |
| 9 | Material of shafts | 45# steel with tempering |
| 10 | Diameter of shafts | φ40mm |
| 11 | Number of rollers | 10 rollers |
| 14 | Main power | 3kw (Cycloidal planetary gear speed reducer) |
