|Model NO.::||EN-100CZ||Machine Speed Of Rolling::||12-15 M/Min|
|Machine Total Weight::||Around 12000kg||Machine Main Machine Size::||11m×2.3m×1.6m|
|Machine Hydraulic Station Motor Power::||7.5kw||Machine Installation Form::||Adopt Arch Type Roll Forming Machine|
|Machinery Control System::||PLC||HS Code::||8455229090|
door frame making machine,
steel stud machine

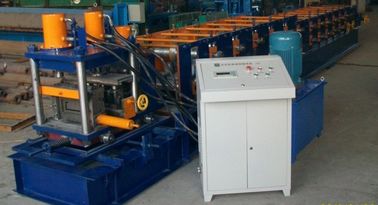

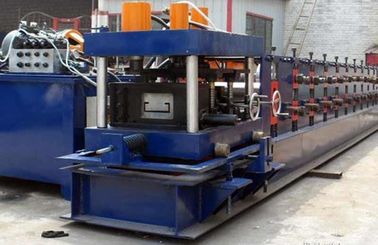

C Z Steel Purlins Roll Forming Machine Production Line Machinery
(1)The main technical parameter
1. Rolling product specification:width 100mm~300mm,high 40mm~80mm,thickness2.0mm~3.0mm
2. The speed of rolling:12-15 m/min
3. Number of sets of molding:17 sets main roller
4. Number of sets of leveling: 7 sets leveling roller
5. Transform line:2 sets
6. Installation form:Adopt arch type
7. Roller type: use split type
8. Roll material: GCr15 quenching treatment, HRC58-62
9. Spindle material: 45 quality steel quenched and tempered
10. main motor power:15KW
11. Hydraulic station motor power:7.5KW
12. Change the specifications speed: a full set of 10 minutes
13. The method of Cutting and punching:After forming then punching and finally cutting
14. The material of cutting knife and punching mold:Cr12 quenching treatment.
15. Electronic control system:The whole machine use industrial computer PLC Siemens frequency conversion to control.
16. Main machine size:length 11m×width 2.3m×high 1.6m (including main motor)
17. Total weight of equipment:Around 12000kg
(2)Composition of equipment:
The leveling machine is compose of plate material guiding device,guide plate driving roller, adjustable guide device on both sides, leveling roller and etc.
The leveling machine have a separate motor drive and the speed is slower than main drive motor. In the head of the reducer shaft installed overrunning clutch.Firstly the motor drive feeding material,then workpieces into main drive roller, and due to the effect of the overrunning clutch, the front drive motor is in a passive state.
Due to the main diver motor's speed is faster than front drive motor,when plate material cutting down,between the workpieces will have a distance.
When a batch of workpieces are finish, the steel coil needs to be remove,and the front drive motor will be stop.When all the finish workpieces are completely out of the roll forming machine, the front drive motor will inverse motion and exit the steel coil.
3. Hydraulic punching device:
structure type:Hydraulic punching device rack is use gantry type. The power source is the pressure of under oil cylinder:The hole position is longitudinally fixed and can be adjusted transversely.
4. Hydraulic cutting device:
Function:After input the length parameter of workpiece through PLC,the encoder will counting length and when the workpiece length is enough the hydraulic cutting machine will cut down the workpiece.
5. Roll forming machine capable of quickly changing type:
The roll forming machine is compose of drive motor, frame, forming roller,Manual regulating workpieces specifications device.
(3)Equipment production process
feeding - guiding - leveling - punching - cutting - forming - tropsch feed
