Product Details:
|
| Type:: | Tile Forming Machine | Production Capacity:: | 8-12m/min |
|---|---|---|---|
| Dimension(L*W*H):: | 6800mm*800mm*1200mm | Power(W):: | 3KW-20.5KW |
| Roller Material:: | 45#steel Chrome Plated | Cutting Blade Material:: | Cr12 Frequency Quenching |
| Control System:: | PLC(imported Brand) | Thickness:: | 0.8-1.2mm |
| Warranty:: | 12 Months | ||
| High Light: | iron sheet making machine,roofing sheet roll forming machine |
||

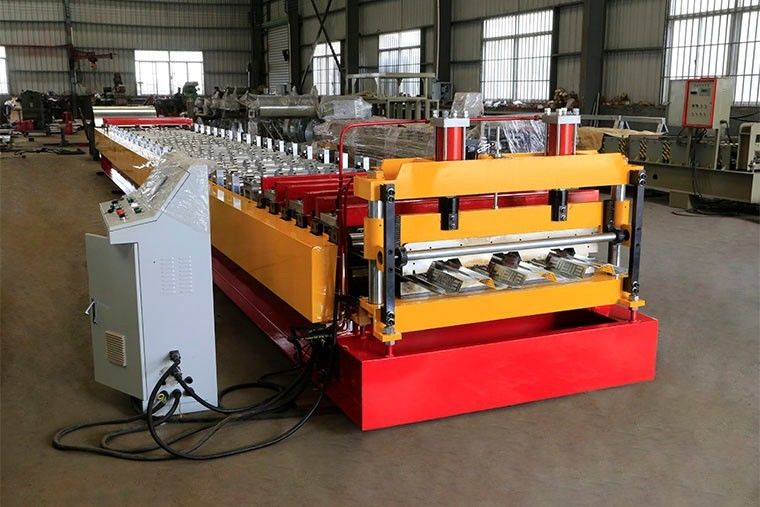

Decking Floor Production Roll Forming Line For Building Material
1. Main features of floor decking roll forming machine
The advantages of floor decking machine are as follows:
1. Low cost, light weight but high strength, short building period, and re-cycle use
2. Save material , no waste.
3. Easy operation, low maintenance cost
Material thickness: 0.8---1.2mm
Material hardness: 195 mpa---350 mpa
Material width: 1250mm
Formed width: 914mm
Wavelength: 305 mm
Step height: 75mm
Step length:150mm---380mm(adjustable)
Forming speed: 8-10m/min
Uncoiler
Usage:It is used to support the steel coil and uncoil it in a turnable way.
Passive uncoil pulled by roll forming system
Loading capacity:5T
Uncoiling width:1250mm
Inner diameter: 450-550mm
Entry Beach
Usage:Put the raw material(steel plate) through the beach to manufacture and process,
it can guarantee that the products are neat, parallel and everything is uniformity.
Please refer to the equipment regulation to know the function of locate angle iron.
Length of the main part: about 1800*1450*1500mm
Weight of main part: 8.5T
Voltage: 380V/50HZ 3Phase
Roller fixer: middle plate
Frame: 350H steel
Drive mode: chain
Material of rollers: 45#steel, surface hard chromium plating.
Material of shafts: 45#steel
Diameter of shafts: φ 90mm
Number of rollers: 28 rollers
Main power: 2*11kw
Material of mould: Cr12 quenched
Power supply:hydraulic power
It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.
Material of blades: Cr12 quenched
Power supply : hydraulic power
Components:It contains one set of blade, one hydraulic tank and one cutter machine.
Power:5.5kw
1). One year, and we will provide the technical support for the whole life.
2).Training: the buyer should charge of visa, return ticket, food and accommodation
overseas and USD50/person/day for salary.
3). Need one technicians
4).Training time: one week (contains the time of installation and adjustment
Cangzhou Kingter Roll Forming Machine Co., Ltd is a professional manufacturer and exporter which has its own factory and also cooperate with several production factories and concerning with the design, development and production of cold roll forming machines,material of building. It is located in northwest of CangZhou, as a long history of cold roll forming machine production base. All products comply with international quality standards and are greatly appreciated in variety of different markets throughout the
world, such as Asia, Africa, Europe,South America, and Australia and so on.
1. You are trade company or factory?
----- We are trade company but we also have own factories. Building trade company is just for exporting
various types of cold roll forming machines.
2. Why your price is higher than others?
---- As we persist on that each factory should put quality at the first place. We spend time and
money on developing how to make machines much more automatic, accurate and high quality.
We can make sure that our machine could use more than 20 years without any problem. We can
provide 2 years free quality assurance.
3. How long the machine could be made?
---- Normally speaking, welded pipe making machine could be made without 45 working days. If
you need machines in a hurry, we can make it for you less than a month.
4. How to visit your company?
---
-a. Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then
we can pick up you.
b. Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
5. Does one machine can only produce one style panel profile?
---
-Not exactly.For wider and double layer making machine. It can produce more than 6 kinds of
panels.
