Automatic Laser Welding Shutter Shaft Tube Maker Stable Quality Optional HF Welding

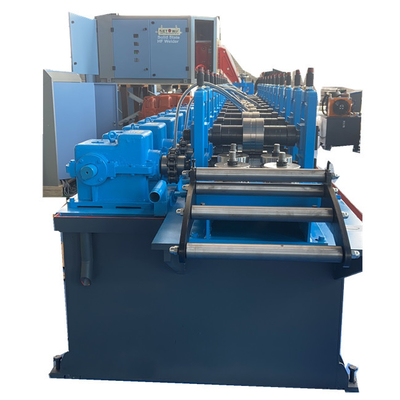

Large Image : Automatic Laser Welding Shutter Shaft Tube Maker Stable Quality Optional HF Welding

Product Details:

Place of Origin:	China
Brand Name:	ZTRFM
Certification:	CE, SGS
Model Number:	002

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Nude with anti-rusting coil
Delivery Time:	60 WORKING DAYS
Payment Terms:	L/C,D/A,D/P,T/T
Supply Ability:	30 SETS/MONTH

Contact Now

Automatic Laser Welding Shutter Shaft Tube Maker Stable Quality Optional HF Welding

Description

Working Speed:	7 To 12	Welding:	Laser Welding
Profile Thickness:	1.5 To 2.5mm	Decoiler:	Manual One
Transmission:	Gearbox	Usage:	Shutter Shaft Tube
Shearing:	Disk Shearing	Cooling System:	By Water
Stacker:	Motor Stacker For The Receving Table
Highlight:	automatic laser welding shutter shaft , HF welding tube maker machine , stable quality roll forming machine

Automatic Laser Welding Shutter Shaft Tube Maker

Our Automatic Laser Welding Shutter Shaft Tube Roll Forming Machine is designed for high-quality batch tube production, combining advanced technology with strict quality control for exceptional performance in tube manufacturing.

Uncompromising Quality for Shutter Shaft Tubes

Engineered to meet the highest straightness criteria for both locked seams and entire tube length. Specialized packaging solutions ensure protection during transportation with custom-made cartons and skids.

Flexible Welding Options

Laser Welding: 7-13 meters per minute - ideal for precision applications
HF Welding: 70-120 meters per minute - perfect for high-volume production

Core Components

Main Roll Forming Structure: 7 horizontal stands with 40Cr steel shafts
Vertical Stands: 7+2 sets with HT200 cast iron bodies
Drive System: 3 ZhuJiang Brand gear boxes (1:30 ratio)
Electrical Protection: Schneider MCB for overload protection

Advanced Laser Welding System (Model LV-Z3000)

Feature	Specification
Laser Power	3000W
Wavelength	1080±5nm
Spot Size	φ0.2-1.8mm
Welding Depth	2-5mm
Power Adjustment	10-100%

Custom Solutions Available

We offer customized shutter tube machines based on your specific drawing profiles, including adjustments to tube dimensions, material compatibility, and special functions.

See the Machine in Action

Contact us to request access to our detailed working video showcasing the entire production process from raw material feeding to finished tube output.
