METAL DECK ROLL FORMING MACHINES

METAL DECK ROLL FORMING MACHINES
METAL DECK ROLL FORMING MACHINES METAL DECK ROLL FORMING MACHINES METAL DECK ROLL FORMING MACHINES METAL DECK ROLL FORMING MACHINES METAL DECK ROLL FORMING MACHINES

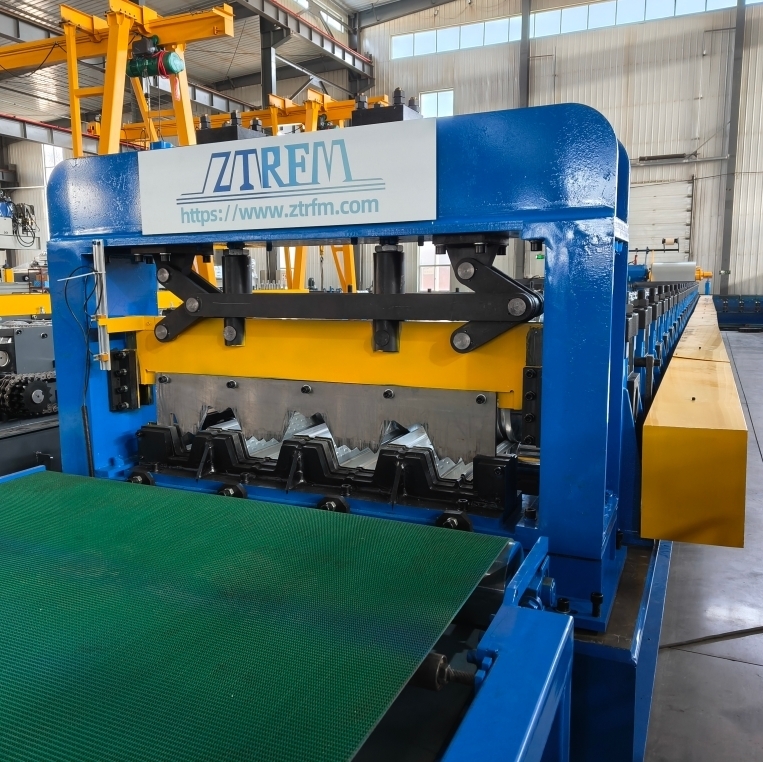

Large Image :  METAL DECK ROLL FORMING MACHINES

Product Details:
Place of Origin: China
Brand Name: ZTRFM
Certification: CE
Model Number: ZTAC
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: under discuss
Packaging Details: Nude with anti-oil package
Delivery Time: 90 working days
Payment Terms: L/C, T/T
Supply Ability: 30 sets per month
Contact Now

METAL DECK ROLL FORMING MACHINES

Description
Highlight:

metal deck roll forming machine

,

floor decking forming machine with warranty

,

steel deck roll forming equipment

METAL DECK ROLL FORMING MACHINES

Metal deck roll forming machine is designed to make the floor decking in batch automatically at high speed. We supply the following types of metal deck rolling forming machines:

  • Customize profile according to customer needs and drawing
  • Cassette Quick Change Deck Roll Forming Machine for different profiles if your factory space is limited
  • Popular profiles we make including B deck roll forming machine, composite Metal Decking Roll Forming Machine, metal deck machine
TR50 Profile Reference
METAL DECK ROLL FORMING MACHINES 0
Embossing Pattern Reference
METAL DECK ROLL FORMING MACHINES 1
METAL DECK ROLL FORMING MACHINES Design
METAL DECK ROLL FORMING MACHINES 2
Working Flow of Metal Decking Machine
METAL DECK ROLL FORMING MACHINES 3
Basic Parameters of Metal Decking Machine
Rolling shaft material 45# STEEL
Shaft diameter 115mm
Roller material 45# steel
Rolling station 32 roller station
Work speed 15 m/min
Machine structure Molding frame (45mm thickness)
Machine basic frame 500# H steel welded
Bearing Roller bearing (Famous brand of Harbin)
Work power 18.5kw x 2 two motors
Transmission By Chains (With cover)
Motor brand Siemens Beide
Features of Zhongtuo Metal Decking Roll Forming Machine

For the metal embossing rollers, with oiling system to prevent zinc coating peel off and cool the machine during operation. This significantly reduces common problems with metal decking machines.

METAL DECK ROLL FORMING MACHINES 4

The metal embossing part features a brake system for easy coil input and precise embossing depth control.

METAL DECK ROLL FORMING MACHINES 5

The 47mm thick molding frame securely holds shafts even at high speeds. Grooves with nuts and cushioning prevent shaft loosening during operation.

METAL DECK ROLL FORMING MACHINES 6

Double chain design with chain tightening system ensures reliable operation.

METAL DECK ROLL FORMING MACHINES 7

Additional popular metal decking designs we can manufacture:

METAL DECK ROLL FORMING MACHINES 8
METAL DECK ROLL FORMING MACHINES Working Videos

There are many more features and differences we can't list here. Please contact us for more information.
