Drywall stud and track profile rolling forming machine 70m/min fully automatic

Drywall stud and track profile rolling forming machine 70m/min fully automatic
Drywall stud and track profile rolling forming machine 70m/min fully automatic Drywall stud and track profile rolling forming machine 70m/min fully automatic Drywall stud and track profile rolling forming machine 70m/min fully automatic Drywall stud and track profile rolling forming machine 70m/min fully automatic Drywall stud and track profile rolling forming machine 70m/min fully automatic Drywall stud and track profile rolling forming machine 70m/min fully automatic

Large Image :  Drywall stud and track profile rolling forming machine 70m/min fully automatic

Product Details:
Place of Origin: China
Brand Name: ZTRFM
Certification: CE
Model Number: ZTAC
Payment & Shipping Terms:
Price: 60000
Packaging Details: Nude with anti-oil package
Delivery Time: 60 working days
Payment Terms: L/C, T/T
Supply Ability: 30 sets per month
Contact Now

Drywall stud and track profile rolling forming machine 70m/min fully automatic

Description
Highlight:

drywall stud forming machine 70m/min

,

fully automatic track profile machine

,

light keel roll forming machine

Drywall Stud and Track Profile Rolling Forming Machine 70m/min Fully Automatic
Metal studs are vertical profiles inserted into the tracks, bearing profiles of the partition; used for fixing of partition covering, calcium silicate board, fiber cement board and etc. Now stud and track profiles are quite popular for construction ceiling and drywall. Metal tracks are horizontal profiles to fix the partition to floor and ceiling. It is suitable for the drywall system in factory, office building, warehouse, greenhouse, home decorations, etc.

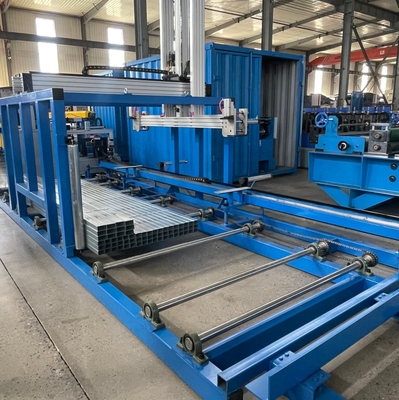

To satisfy market needs, we've developed this machine with a speed of 70 meters per minute and a fully automatic stacker, allowing one worker to handle the entire process.

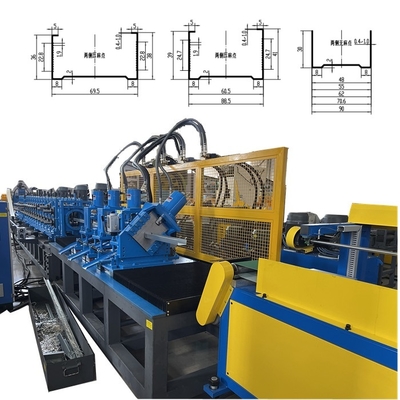

Reference Profile Drawings
Drywall stud and track profile rolling forming machine 70m/min fully automatic 0
Size Adjustment and Multi-Size Capability

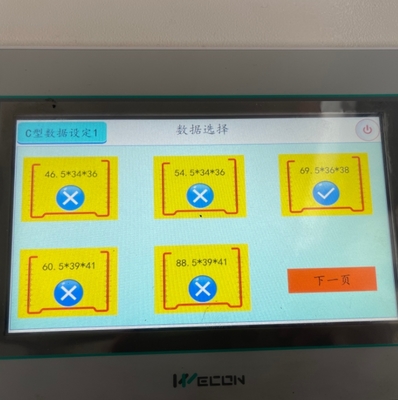

PLC-Controlled Size Adjustment: The machine's size changes are controlled by PLC driven by servo motor. In the PLC you can either edit the sizes or choose the sizes with punching - we have pre-programmed these options.
Drywall stud and track profile rolling forming machine 70m/min fully automatic 1 Drywall stud and track profile rolling forming machine 70m/min fully automatic 2
For easy after-sales support, we've added a remote control system that allows operation via smartphone app, computer, and machine PLC.
Drywall stud and track profile rolling forming machine 70m/min fully automatic 3

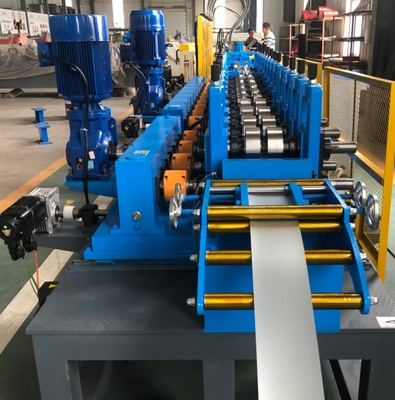

  1. The rollers are designed as separate components that can move inward and outward to accommodate different sizes
  2. Bottom ribs move along side rollers
  3. Dotting rollers are designed based on size collection
  4. The edge transition from stud to track is controlled by input coil width
  5. Punching system does 4 holes simultaneously per piece, enabling the 70m/min speed
Drywall stud and track profile rolling forming machine 70m/min fully automatic 4 Drywall stud and track profile rolling forming machine 70m/min fully automatic 5
Application Examples
Drywall stud and track profile rolling forming machine 70m/min fully automatic 6

Tag:

light steel keel roll forming machine,

metal stud and track roll forming machine,

t bar roll forming machine
