Metal IBR Roof Sheets Rolling Forming Machine (45m/min)
Metal IBR Roof Sheets Rolling Forming Machine (45m/min)
Description
Metal IBR Roof Sheets Rolling Forming Machine (45m/min)
45 m/min high speed metal roofing sheet machine can make the metal roofing sheets in batch fully automatically. For the IBR metal roofing sheet machine, it has the following features:
Advantages of IBR Roof Sheets
Key features of metal IBR roofing sheets
1. Durability: IBR roof sheets are known for their exceptional durability, making them a long-lasting and cost-effective roofing solution. They can withstand harsh weather conditions, including heavy rain, strong winds, and extreme temperatures.
2. Versatility: IBR roof sheets are available in various profiles, colors, and materials, allowing homeowners and builders to choose the option that best suits their aesthetic preferences and architectural style. This versatility makes them suitable for a wide range of residential, commercial, and industrial applications.
3. Easy Installation: IBR roof sheets are designed for easy installation, saving time and labor costs. Their interlocking design ensures a secure fit, reducing the risk of leaks and providing added structural stability. Additionally, their lightweight nature makes them easier to handle and transport.
4. Energy Efficiency: IBR roof sheets have excellent insulation properties, helping to regulate indoor temperature and reduce energy consumption. This can result in lower heating and cooling costs, making them an environmentally friendly choice.
Here some popular IBR Roof Sheets drawing profile for your reference:
Metal IBR Roof Sheets Rolling Forming Machine (45m/min)

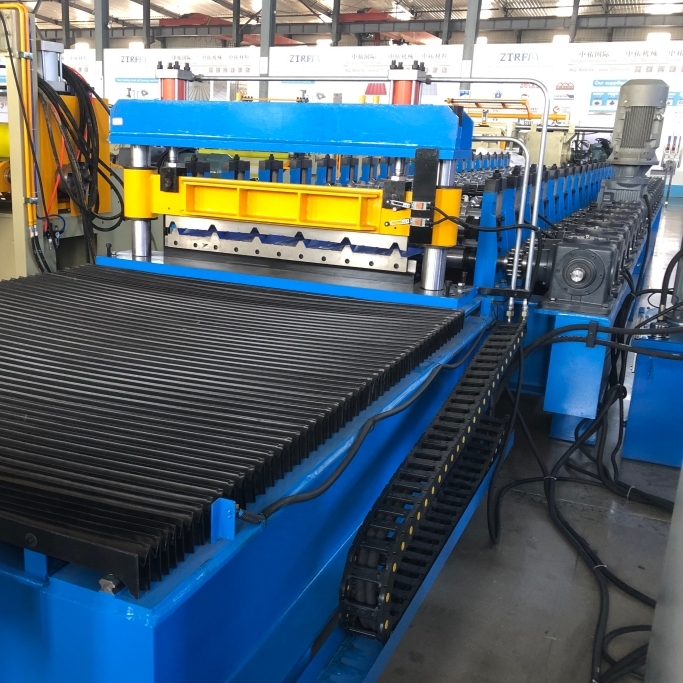

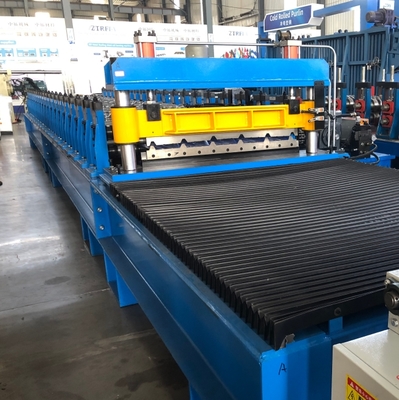

Part 2: Main roll forming machine
Feeding device
the platform width is adjustable by hand wheel, have the bearing inside to protect the edge of the steel sheet.
Rolling shaft
Shaft Material: 40 Cr STEEL
Shaft diameter: 90 mm
Tempering treatment, prevent deformed and improve the hardness
Roller
Roller material: High grade 45# steel
Chromed treatment (Chrome thickness:0.05 mm), make the rollers surface more smoothly, improve the hardness and prevent abrasion, anti corrosion increase of service life

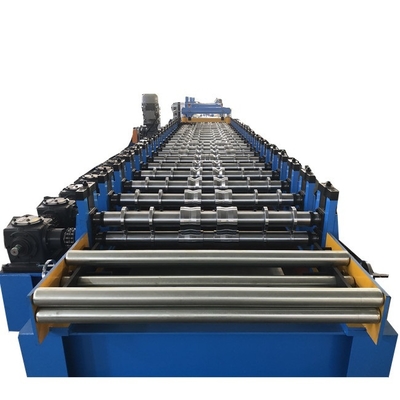

Rolling station
18 stations for profile (separated mold rolling) with trimming rollers also
Rolling type: separate rolling design concept, it can release internal stress from the sheets, then the sheet will be in good shape and high precision.
Machine structure
Iron casting Vertical arch frame structure thickness of 45mm
Machine basic frame
Hot rolled H-beam
We will make diagonal bracing inside the frame, to strength the structure and keep the whole plate in same horizontal plane
After the whole welding, vibration is used to weld the stress. After large-scale planer machining, the horizontal and rigidity of the frame are ensured.
Bearing
Chinese famous brand Harbin
Work power
7.5kw two motors so total power 15kw
Roller treatment
Electroplate (chromed)
Safety cover
1 set

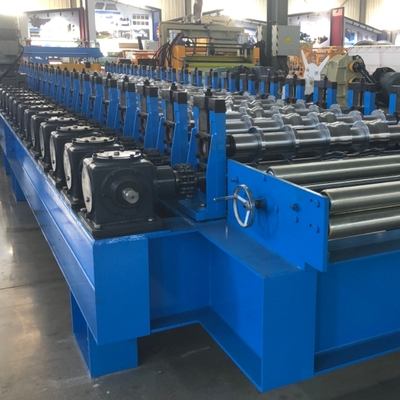

Transmission
1400Gear box transmission(bevel gear inside)
Advantage: can improve the speed directly after cutting
Note: how to adjust input coil width from 1250 to 1000mm. Simple fixed one sizes and then using handrail to fix the coil width. With more guiding rollers to make sure not scratch the surface of the coil. With two rubber roller at the leveling part and then it will be more easier to feed the coil to the main roller forming machine to enhance the working speed.

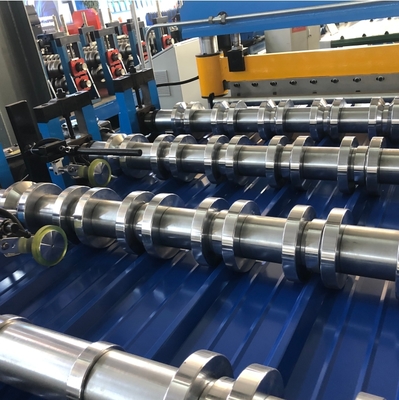

As to the rollers
1. As to the rollers, we put some bearing inside as when higher working speed, we need to make sure all the rollers are working at the same speed and then not damage the surface of the coil.
2.Integral forming roll abrasive tools, chrome-plated surface. Increase the service life of the abrasive tool, the surface of the abrasive tool is smooth and will not rust, will not damage the surface of the paint layer, and is durable.
3. It adopts Siemens motor, an international famous brand, and its quality is trustworthy.
Gears are added inside part of the abrasive tools to ensure uniform force on the rolls, reduce wear, and shape beautifully and accurately.

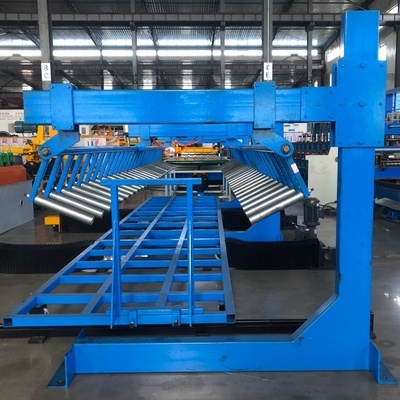

As to the decoiler and stacker belong to the optional part, as the machine working speed is super fast, better we use fast decoiler and stacker.
Metal IBR Roof Sheets Rolling Forming Machine (45m/min) working video for your reference:
