Complete Range Of Structural Purlins Roll Forming Machine With Automatic Motorized Height And Width Change

Large Image : Complete Range Of Structural Purlins Roll Forming Machine With Automatic Motorized Height And Width Change

Product Details:

Place of Origin:	China
Brand Name:	ZTRFM
Certification:	CE,SGS
Model Number:	PURLIN

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Understand discuss
Packaging Details:	Nude with anti coil coating and plastic cover
Delivery Time:	45 working days
Payment Terms:	L/C, T/T
Supply Ability:	30 sets per month

Contact Now

Complete Range Of Structural Purlins Roll Forming Machine With Automatic Motorized Height And Width Change

Description

Main Motor Power:	15kw	Material Thickness Range:	Accord To Drawings
Material Of Roller:	Gcr15, Quench HRC58-62 Plated Chrome	Hydraulic Station Power:	5.5KW
Machine Color:	Customized	Width:	80mm-350mm
Thickness:	1.5-3.0mm	Control System:	PLC
Line Speed:	Adjusted By Frequency Inverter	Punching:	Single Hole And Dual Holes
Main Machine Power:	22 KW Hydraulic Motor	Cutter Material:	Cr12Mov, Heat Treatment
Type:	Tile Forming Machine	Cutting Blade Material:	Cr12Mov
Highlight:	Automatic Motorized Height Roll Forming Machine , Structural Purlins Roll Forming Machine , Automatic Motorized Width Roll Forming Machine

M Purlin Roll Forming Machine

The M Purlin Roll Forming Machine is a cutting-edge industrial equipment designed for efficient production of high-quality M purlins. With precision engineering and advanced technology, this machine effortlessly shapes metal sheets into precise and uniform M purlin profiles. Its versatility allows for various sizes and designs of purlins, meeting diverse construction needs. The M Purlin Roll Forming Machine ensures consistent and accurate results, optimizing production efficiency and reducing labor costs. It is an essential tool for manufacturers aiming to deliver reliable and durable M purlins for commercial, industrial, and residential buildings, providing superior structural support and exceptional performance.

Purlin roll forming machine is the most popular and has an extensive use in the construction work. Sigma Purlins M purlin profile, we can design according to the size range, thickness range and give the different solutions of purlin roll forming machine to manufacturer a complete range of structual purlins(height and width change using automatic system by motors): In the market, the most popular is C/U/Z/M section-manual change 4 stations from C to Z, change time: 2 minutes
C/U/Z/M section-automatically change from C to Z, change time: few seconds. But this design, the cost will be a little higher.

Here I will share a more economic design which only can produce M purlin, by this way we can save the cost:

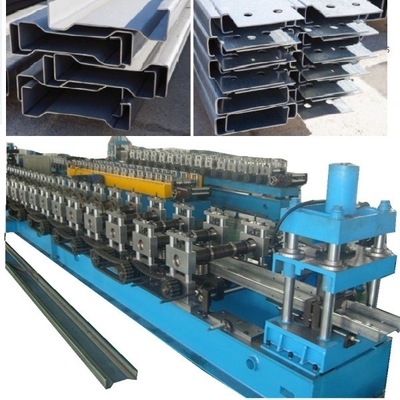

Complete Range Of Structural Purlins Roll Forming Machine With Automatic Motorized Height And Width Change 0

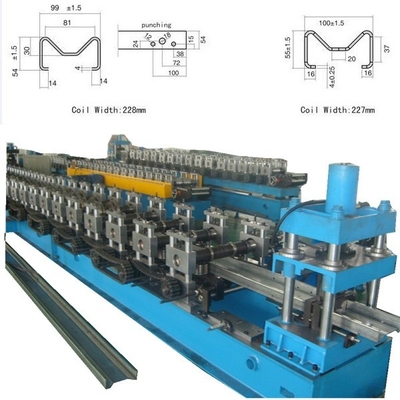

Here is just one size for your reference, by manual adjustment, the production line can produce more sizes meanwhile the cutting blades also needed to be changed also.

Sigma Purlins M purlin roll forming machine manual adjustment type for your reference:

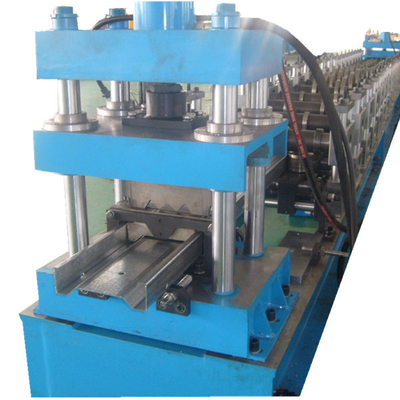

Complete Range Of Structural Purlins Roll Forming Machine With Automatic Motorized Height And Width Change 1

Sigma Purlins M purlin roll forming machine working flow:

Uncoiling—guiding—feeding&flatting—forming—punching&cutting—product receiving

Complete Range Of Structural Purlins Roll Forming Machine With Automatic Motorized Height And Width Change 2

M purlin roll forming system
Roll forming system	Guiding rollerTwo pcs Diameter of 40mm Tempering treatmentUsage: to let the sheet feeding into next device in the right positionFeeding&fl atting device 5 pcs Diameter of 70mm Tempering treatmentUsage: to feed the sheet into forming system positively and remove the sheet radian from coil, avoid the product curve and keep straight Rolling shaft Shaft material: 45# steel Shaft diameter: 80 mm Tempering treatmentRollerRol ler material: Cr15 Quenched treatment Rolling station number 15 stationsspeedWorki ng speed: 0-25 m/minute without punching and 0-12 m/minute with punching Machine frame Carbon steel welded structure Machine body steel plate welded with grinding Bearing Chinese famous brand Harbin Work power 15 kw Transmission By chains	Two pcsDiameter of 40mmTempering treatmentUsage: to let the sheet feeding into next device in the right position Feeding&flatting device 5 pcs Diameter of 70mmTempering treatmentUsage: to feed the sheet into forming system positively and remove the sheet radian from coil, avoid the product curve and keep straightRolling shaft Shaft material: 45# steelShaft diameter: 80 mmTempering treatmentRollerRoller material: Cr15 Quenched treatment Rolling station number15 stationsspeedWorking speed: 0-25 m/minute without punching and 0-12 m/minute with punchingMachine frameCarbon steel welded structureMachine bodysteel plate welded with grinding Bearing Chinese famous brand Harbin Work power 15 kw Transmission By chains
		Diameter of 40mmTempering treatmentUsage: to let the sheet feeding into next device in the right positionFeeding&flatting device5 pcs Diameter of 70mmTempering treatment Usage: to feed the sheet into forming system positively and remove the sheet radian from coil, avoid the product curve and keep straightRolling shaft Shaft material: 45# steelShaft diameter: 80 mmTempering treatmentRollerRoller material: Cr15 Quenched treatment Rolling station number15 stationsspeedWorking speed: 0-25 m/minute without punching and 0-12 m/minute with punchingMachine frameCarbon steel welded structureMachine body steel plate welded with grinding Bearing Chinese famous brand Harbin Work power 15 kw Transmission By chain
		Diameter of 40mmTempering treatmentUsage: to let the sheet feeding into next device in the right positionFeeding&flatting device5 pcs Diameter of 70mmTempering treatment Usage: to feed the sheet into forming system positively and remove the sheet radian from coil, avoid the product curve and keep straightRolling shaft Shaft material: 45# steelShaft diameter: 80 mmTempering treatmentRollerRoller material: Cr15 Quenched treatment Rolling station number15 stationsspeedWorking speed: 0-25 m/minute without punching and 0-12 m/minute with punchingMachine frameCarbon steel welded structureMachine body steel plate welded with grinding Bearing Chinese famous brand Harbin Work power 15 kw Transmission By chain
		Usage: to let the sheet feeding into next device in the right position Feeding&flatting device 5 pcs Diameter of 70mmTempering treatmentUsage: to feed the sheet into forming system positively and remove the sheet radian from coil, avoid the product curve and keep straightRolling shaft Shaft material: 45# steelShaft diameter: 80 mmTempering treatmentRollerRoller material: Cr15 Quenched treatment Rolling station number15 stationsspeedWorking speed: 0-25 m/minute without punching and 0-12 m/minute with punchingMachine frameCarbon steel welded structureMachine bodysteel plate welded with grinding Bearing Chinese famous brand Harbin Work power 15 kw Transmission By chains
	Feeding&flatting device 5 pcs Diameter of70mm Tempering treatmentUsage: to feed the sheet into forming system positively and remove the sheet radian from coil, avoid the product curve and keep straight Rolling shaft Shaft material: 45# steel Shaft diameter: 80 mm Tempering treatmentRollerRol ler material: Cr15 Quenched treatment Rolling station number 15 stationsspeedWorki ng speed: 0-25 m/minute without punching and 0-12 m/minute with punching Machine frame Carbon steel welded structure Machine body steel plate welded with grinding Bearing Chinese famous brand Harbin Work power 15 kw Transmission By chain	5 pcsDiameter of 70mmTempering treatmentUsage: to feed the sheet into forming system positively and remove the sheet radian from coil, avoid the product curve and keep straightRolling shaft material: 45# steel Shaft diameter: 80 mm Tempering treatment Roller Roller material: Cr15 Quenched treatment Rolling station number15 stations speedWorking speed: 0-25 m/minute without punching and 0-12 m/minute with punchingMachine frameCarbon steel welded structureMachine body steel plate welded with grinding Bearing Chinese famous brand Harbin Work power 15 kw
		Tempering treatmentUsage: to feed the sheet into forming system positively and remove the sheet radian from coil, avoid the product curve and keep straightRolling shaft Shaft material: 45# steel Shaft diameter: 80 mm Tempering treatment RollerRoller material: Cr15 Quenched treatment Rolling station number15 stationsspeedWorking speed: 0-25 m/minute without punching and 0-12 m/minute with punchingMachine frameCarbon steel welded structureMachine bodysteel plate welded with grinding Bearing Chinese famous brand Harbin Work power 15 kw
		Usage: to feed the sheet into forming system positively and remove the sheet radian from coil, avoid the product curve and keep straight Rolling shaft Shaft material: 45# steel Shaft diameter: 80 mm Tempering treatment Roller Roller material: Cr15 Quenched treatment Rolling station number 15 stationsspeedWorking speed: 0-25 m/minute without punching and 0-12 m/minute with punchingMachine frameCarbon steel welded structureMachine bodysteel plate welded with grinding Bearing Chinese famous brand Harbin Work power 15 kw
	Rolling shaft Shaft material: 45# steel Shaft diameter: 80 mm Tempering treatmentRollerRol ler material: Cr15 Quenched treatment Rolling station number 15 stationsspeedWorki ng speed: 0-25 m/minute without punching and 0-12 m/minute with punching Machine frame Carbon steel welded structure Machine body steel plate welded with grinding Bearing Chinese famous brand Harbin Work power 15 kw ransmission By chains	Shaft material: 45# steel Shaft diameter: 80 mm Tempering treatment Roller Roller material: Cr15 Quenched treatment Rolling station number15 stations speedWorking speed: 0-25 m/minute without punching and 0-12 m/minute with punchingMachine frameCarbon steel welded structureMachine body steel plate welded with grinding Bearing Chinese famous brand Harbin Work power 15 kw Transmission By chains
		Shaft diameter: 80 mmTempering treatmentRollerRoller material: Cr15 Quenched treatment Rolling station number 15 stationsspeedWorking speed: 0-25 m/minute without punching and 0-12 m/minute with punchingMachine frameCarbon steel welded structureMachine bodysteel plate welded with grinding Bearing Chinese famous brand Harbin Work power 15 kw Transmission By chains
		Tempering treatment Roller Roller material: Cr15 Quenched treatment Rolling station number15 stationsspeedWorking speed: 0-25 m/minute without punching and 0-12 m/minute with punchingMachine frameCarbon steel welded structureMachine body steel plate welded with grinding Bearing Chinese famous brand Harbin Work power 15 kw Transmission By chains
	Roller Roller material: Cr15 Quenched treatment Rolling station number 15 stationsspeedWorki ng speed: 0-25 m/minute without punching and 0-12 m/minute with punching Machine frame Carbon steel welded structure Machine body steel plate welded with grinding Bearing Chinese famous brand Harbin Work power 15 kw Transmission By chains	Roller material: Cr15 Quenched treatment Rolling station number15 stationsspeedWorking speed: 0-25 m/minute without punching and 0-12 m/minute with punching Machine frame Carbon steel welded structure Machine body steel plate welded with grinding Bearing Chinese famous brand Harbin Work power 15 kw Transmission By chains
		Quenched treatment Rolling station number 15 stationsspeedWorking speed: 0-25 m/minute without punching and 0-12 m/minute with punchingMachine frameCarbon steel welded structureMachine bodysteel plate welded with grinding Bearing Chinese famous brand Harbin Work power 15 kw Transmission By chains
	Rolling station number 15 stationsspeedWorki ng speed: 0-25 m/minute without punching and 0-12 m/minute with punching Machine frame Carbon steel welded structure Machine body steel plate welded with grinding Bearing Chinese famous brand Harbin Work power 15 kw Transmission By chains	15 stationsspeedWorking speed: 0-25 m/minute without punching and 0-12 m/minute with punchingMachine frameCarbon steel welded structureMachine bodysteel plate welded with grinding Bearing Chinese famous brand Harbin Work power 15 kw Transmission By chains
	speed Working speed: 0-25 m/minute without punching and 0-12 m/minute with punching Machine frame Carbon steel welded structure Machine body steel plate welded with grinding Bearing Chinese famous brand Harbin Work power 15 kw Transmission By chains	Working speed: 0-25 m/minute without punching and 0-12 m/minute with punching Machine frame Carbon steel welded structure Machine body steel plate welded with grinding Bearing Chinese famous brand Harbin Work power 15 kw Transmission By chains
	Machine frame Carbon steel welded structure Machine body steel plate welded with grinding Bearing Chinese famous brand Harbin Work power 15 kw Transmission By chains	Carbon steel welded structureMachine bodysteel plate welded with grinding Bearing Chinese famous brand Harbin Work power 15 kw Transmission By chains
	Machine bodysteel plate welded with grinding Bearing Chinese famous brand Harbin Work power 15 kw Transmission By chains	steel plate welded with grinding Bearing Chinese famous brand Harbin Work power 15 kw Transmission By chains
	Bearing Chinese famous brand Harbin Work power 15 kw Transmission By chains	Chinese famous brand HarbinWork power15 kw Transmission By chains
	work power15 kw Transmission By chains	15 kw Transmission By chains
	Transmission By chains	chains By chains

Complete Range Of Structural Purlins Roll Forming Machine With Automatic Motorized Height And Width Change 3

Where to use the M purlin:

Roof purlins:

Complete Range Of Structural Purlins Roll Forming Machine With Automatic Motorized Height And Width Change 4

Use sleeves to shorter purlin or assemble 2-span purlin staggered

Keep a space of approx. 15 mm between the truss and the purlin

Eaves beams are supplied with an angled top flange, so only 1 profile is needed where roof and wall meet

Complete Range Of Structural Purlins Roll Forming Machine With Automatic Motorized Height And Width Change 5

Options of CUM purlin fully automatic type, we will share in next article. For more information, please contact us at any time.

Complete Range Of Structural Purlins Roll Forming Machine With Automatic Motorized Height And Width Change 6

Complete Range Of Structural Purlins Roll Forming Machine With Automatic Motorized Height And Width Change 7
