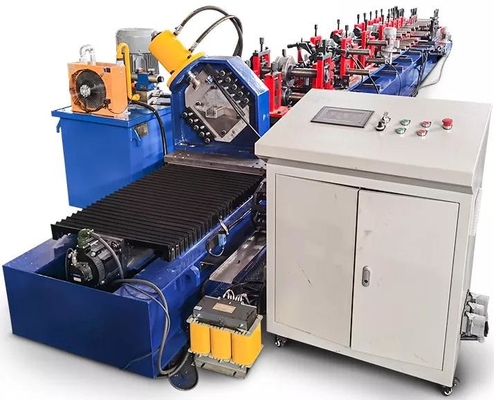

Customizable C/U Purlin Roll Forming Machine For Purlins With Adjustable Sheet Width And Height

Auto Size Changeable C U Purlin Roll Forming Machine

Our auto size changeable C/U purlin roll forming machine produces high-quality C and U shape purlins, with width ranging from 80-300mm and material thickness of 1.5-3mm.

This auto size changeable C/U purlin roll forming machine is the perfect solution for businesses looking to produce high-quality C and U-shaped purlins quickly and efficiently. With a material thickness range of 1.5-3mm, and the ability to form purlins up to 4.0-6.0mm thick based on customer requirements, this machine is highly versatile and suitable for various applications.

We designed this machine to be highly customizable, with the ability to automatically adjust the sheet width and height via PLC, or manually adjust the handle wheel for different sizes. This feature saves time and is much more convenient than adjusting spacers.

Regarding the punching unit, we can design pre-punching or post-punching options based on customer requirements. Customers can choose between pre-cut or post-cut, which is a universal cutting method.

The driving system uses a chain and mostly comes with gimbal/gearbox for transmission, providing strong driving power and stable performance when forming purlins from thicker materials.

Purlin roll forming machines are highly popular and widely used in metal building systems, huge roofing solutions, and construction and renovation projects. Our Purlin roll forming machine can produce C, U, and Z-shaped purlins with machineable size ranges of width: 100-300mm, height: 50-100mm, and thickness: 1.5-3mm. Additionally, we offer customized solutions based on customers’ specific drawing, tolerance, and budget requirements. Whether you need to produce a few sizes or multiple, we have solutions to meet your needs.

Auto Size Changeable C/U Purlin Roll Forming Machine Profile Drawings

Auto Size Changeable C/U Purlin Roll Forming Machine Production Line

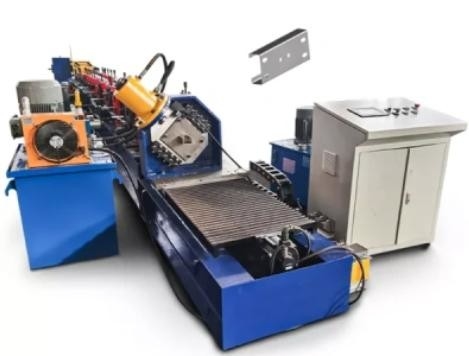

Auto Size Changeable C U Purlin Roll Forming Machine

Our Auto Size Changeable C/U Purlin Roll Forming Machine Production Line is a highly automated production line used for manufacturing C/U-shaped steel purlins. The production line is composed of multiple workstations, each with a different function to perform different tasks during the manufacturing process. We use high-quality steel coils as the primary material, which can handle different thicknesses of steel coils depending on the machine’s design and configuration. Additionally, the production line can automatically switch to produce different sizes of steel purlins, thereby improving production efficiency. During the production process, multiple steps are involved, including uncoiling, pressing, forming, cutting, and coiling. Through precise control of the production process, the resulting steel purlins have precise dimensions and shapes, and high production efficiency. We provide professional after-sales service to ensure that your equipment always maintains a good operating state, making your production smoother.

Auto Size Changeable C/U Purlin Roll Forming Machine Product Parameters

Auto Size Changeable C/U Purlin Roll Forming Machine Application
