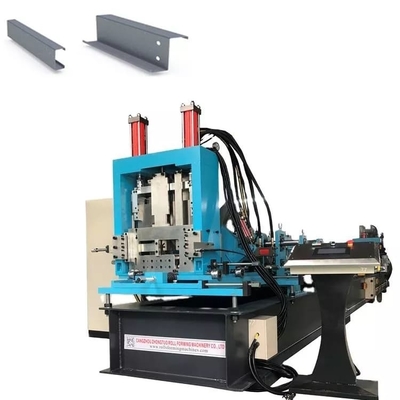

Automatic Steel Frame Channel Punch Holes C U Z W M V T Purlin Roll Forming Machine

Large Image : Automatic Steel Frame Channel Punch Holes C U Z W M V T Purlin Roll Forming Machine

Product Details:

Place of Origin:	China
Brand Name:	ZTRFM
Certification:	CE,SGS
Model Number:	PURLIN

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Understand discuss
Packaging Details:	Nude with anti-water package and heavy oil
Delivery Time:	45 working days
Payment Terms:	L/C, T/T
Supply Ability:	30 sets per month

Contact Now

Automatic Steel Frame Channel Punch Holes C U Z W M V T Purlin Roll Forming Machine

Description

Hydraulic_Power:	7.5KW	Motor Power:	18.5KW
Weight Of Machine:	About 12 Ton	Production:	About 15-20 Meters Per Minute
Work Pressure:	16 MPA	Use:	C&Z
Color:	Client's Request	Way Of Control:	PLC Control
Cutting Length:	Any Length	Hydraulic Pressure Range:	0-16Mpa
Size Of Purlin:	80-350mm	Hydraulic Power:	7.5 KW
Wall Side Thickness:	30mm	Power:	7.5KW
Highlight:	Automatic Purlin Roll Forming Machine

Automatic Steel Frame Channel Punch Holes C U Z W M V T Purlin Roll Forming Machine

The light steel keel is made of high-quality continuous hot-dip galvanized sheet and strip as raw materials, and is rolled into a metal frame for construction through a cold bending process. It is suitable for the decoration of the roof of various buildings, the inner and outer walls of the building and the scaffold The base material of the suspended ceiling. The light steel keel includes ceiling keel and partition keel according to the purpose, and V-shaped, C-shaped, T-shaped, L-shaped and U-shaped keels according to the cross-sectional form.This wall stud roll forming machine produces multi-profiles and size-changing by the spacer. In fact, it is multi size wall stud and tracks machine for multi-profiles,size-changing by the spacer.There is an enlarged hydraulic station to ensure high-speed working. Easy operation, low maintenance cost.

Here Are Some Drawing Profiles For Your Reference:

Automatic Steel Frame Channel Punch Holes C U Z W M V T Purlin Roll Forming Machine 0

Assembly line process flow:
3T Manual feeding rack- -Guiding device - Roll forming systerm - Cutting device - Run out tabla for product

Automatic Steel Frame Channel Punch Holes C U Z W M V T Purlin Roll Forming Machine 1

Automatic Steel Frame Channel Punch Holes C U Z W M V T Purlin Roll Forming Machine

Automatic Steel Frame Channel Punch Holes C U Z W M V T Purlin Roll Forming Machine 2

Specification

item	value
Product name	C Shaped Steel Roll Forming Machine
Voltage	380/220/415V
Dimension(LWH)	58009001500
Weight	2500kg
Warranty	2 years
Key Selling Points	Long Service Life
Rolling thinckness	0.3-1mm
Feeding width	93mm
Cutting blade material	Cr 12 MOV
Material of rollers	45# Steel Outer Diameter: 50mm
Main frame	300H Steel
Cutting type	Automatic Hydraulic Cutting
Control system	PLC(detla) System
Feature	Factory direct selling price, long-term high-quality after-sales service
Decoiler	5T Manual Decoiler

Automatic Steel Frame Channel Punch Holes C U Z W M V T Purlin Roll Forming Machine 3

Key attributes

Industry-specific attributes

Automatic Steel Frame Channel Punch Holes C U Z W M V T Purlin Roll Forming Machine 4

Other attributes

Automatic Steel Frame Channel Punch Holes C U Z W M V T Purlin Roll Forming Machine 5
