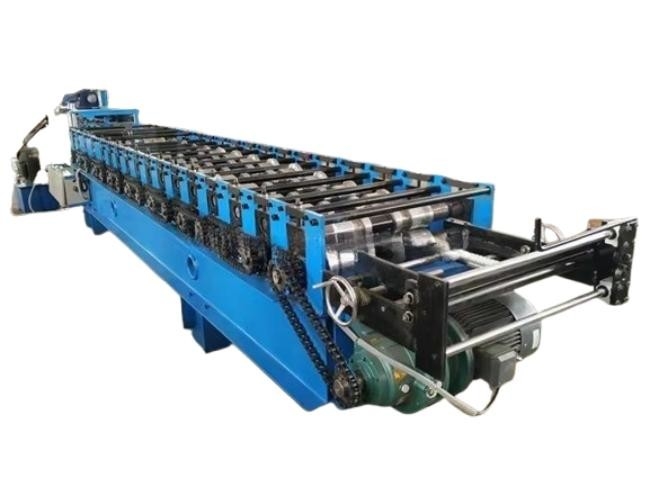

0.3mm 380v Soffit Roof Panel Roll Forming Machine

Soffit Panel Roll Forming Machine

Soffit machine creates fascia and soffit. With or without ventilation strip for solid soffit. Formed in seamless lengths. Adjustable perforation stage with 6 rows of venting. Gives a unique look not like the typical look of V-groove panels.

Here is one drawing profile and finished product:

Profile for reference:

Soffit Panel Roll Forming Machine

Specifications

ZTRFM Aluminum Roof Sheet Soffit Making With Rotary Punching Soffit Panel Roll Forming Machine

Design Idea:
Stable Transmission: arch way structure, process ventilation holes through embossing rollersFull Automatic
Easy Operation:Whole producing line just need one person for operation.
Application of the finished product:Usually used in the roof or wall
Product Paramenters
The price we supply you full producing line
decoiler device
Loading capacity :3 Tons
Type:Manual with handwheel
(buy machine give you manual type as free)
Feeding device
With handwheels for easy adjustable
Roll Forming Device PLC control system
Shaft material: 45# steel with quenched treatment
Transmission :By chains
Roller material: Cr15 Mov with quenched treatment
Machine Frame:steel plate welded with grinding
1.Touch screen
2.Famous brand:Siemens,Schneider
3.Speed and order control automatically

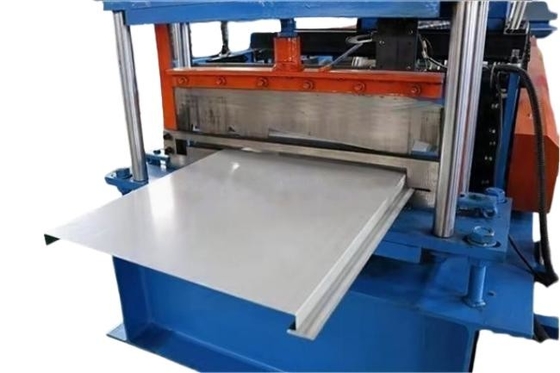

Hydraulic cutting device
Drive method:
By pillar type Cylinder
