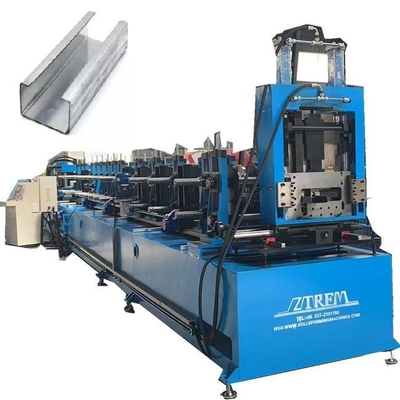

C Z Purlin Channel Cold Roll Forming Machine Full Auto For Galvanized Steel Profile

Large Image : C Z Purlin Channel Cold Roll Forming Machine Full Auto For Galvanized Steel Profile

Product Details:

Place of Origin:	China
Brand Name:	ZTRFM
Certification:	CE,SGS
Model Number:	PURLIN

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Understand discuss
Packaging Details:	Nude with anti coil coating and plastic cover
Delivery Time:	45 working days
Payment Terms:	L/C, T/T
Supply Ability:	30 sets per month

Contact Now

C Z Purlin Channel Cold Roll Forming Machine Full Auto For Galvanized Steel Profile

Description

Use:	Z Purlin	Export Port:	Tianjin Port
Work Pressure:	16 MPA	Product Material:	Carbon Steel
Weight:	10T	Hardness:	HRC58-62
Main Power:	11KW	Rolling Thickness:	2-3mm
Model:	CZ80-300	Matching Material:	Steel Coil
Power Supplier:	380V Or Customized	Running Speed:	0-12m/min
Tile Type:	Steel	Thickness:	1.5-3.0mm
Material Thickness:	1 Mm - 3 Mm
Highlight:	Cold cz purlin roll forming machine , Auto cz purlin roll forming machine , Galvanized cz purlin roll forming machine

C Z Purlin Channel Cold Roll Forming Machine Full Auto Galvanized Steel Profile

Fully automatic C&Z purlin quick Interchangeable Roll Forming Machine, adopts a special structure for both C and Z purlin making. The rollers for C & Z are changed very quickly without dismantle any parts. Cutter adopts universal hydraulic cutting device, no need to change cutter blade while producing different profiles with different sizes which save labor costs and improve production efficiency.

Here is a profile pictures:

C Z Purlin Channel Cold Roll Forming Machine Full Auto For Galvanized Steel Profile 0

C Z Purlin Channel Cold Roll Forming Machine Full Auto For Galvanized Steel Profile 1

C Z Purlin Channel Cold Roll Forming Machine Full Auto Galvanized Steel Profile

C Z Purlin Channel Cold Roll Forming Machine Full Auto For Galvanized Steel Profile 2

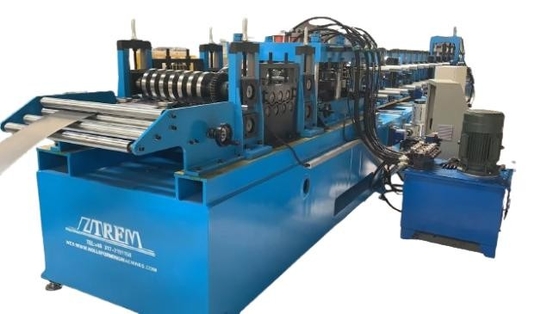

C Z Purlin Channel Cold Roll Forming Machine Details

Stand Base
Roll stands adopt cast iron single station which is most heavy and strong.

C Z Purlin Channel Cold Roll Forming Machine Full Auto For Galvanized Steel Profile 3

Interchangeable
Produce different purlin sizes without changing rollers or spacers.
Only need to overturn the rollers 180 degree, Save cost and time.

C Z Purlin Channel Cold Roll Forming Machine Full Auto For Galvanized Steel Profile 4

Universal Cut
Universal post cutter. No need change cutter blades for different sizes.

C Z Purlin Channel Cold Roll Forming Machine Full Auto For Galvanized Steel Profile 5

Customization
Senior and experienced engineer control the whole process for your customize.

C Z Purlin Channel Cold Roll Forming Machine Full Auto For Galvanized Steel Profile 6

C Z Purlin Channel Cold Roll Forming Machine Parameters

Product	C&Z purlin Quick Interchangeable Roll Forming Machine
Model	C Channel Profile / Z Shape Profile (Customizable )
Base Material	Galvanized Steel Hot And Cold Rolled Steel
Thickness	1.5-3.0mm (Customizable)
Effective Width	According To Profile Size
Roller Station	About 16 Stations
Roller Material	Bearing Steel / Cr12Mov
Roller Driven Type	By Chain/ Gearbox
Color	According To Customer Requirements / Customizable
Brand	SUNWAY
Control System	Worldwide Famous Brand PLC (Panasonic, Siemens, Delta, etc.)
Power	15KW-18KW
Frame	350 H Steel / 400 H Steel
Cutting Drive	Hydraulic Drive
Cutting & Hydraulic Type	Type:Post Universal Cutter Hydraulic Pump Station :11kw Blade: Cr12mov HRC: 58-62
