Auto Size Changeable C Z Purlin Roll Forming Machine For Galvanized Coil

Auto Size Changeable C Z Purlin Roll Forming Machine

This auto size changeable C Z purlin roll forming machine is used to produce C&Z shape purlins from 100-300mm of width, normally its material thickness is 1.5-3mm, also Maximum thickness can be formed at 4.0-6.0mm according to customer requirement.

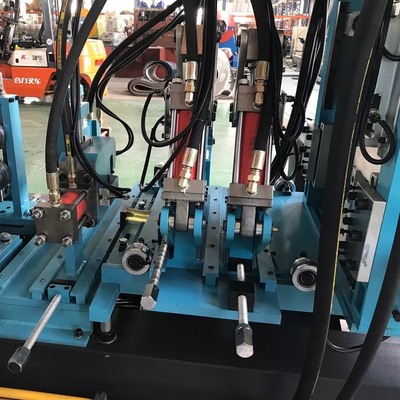

ZTRFM design this auto size changeable C Z purlin roll forming machine to work with any size of the purlin, automatically adjustable sizes by PLC. Whats’ more, Changing time from C to Z only need 10 minutes. Regarding the punching unit, we can design pre punching, post punching according to your requirement. For cutting unit, you can choose the pre-cut or post-cut which is universal cutting. The driving system we adopt the chain and mostly with gimbal /gearbox for transmission if the raw material is thicker than 2.5mm,this is much more strong driving power and more stable when forming the purlins.

Purlin roll forming machine is the most popular and has an extensive use in Metal Building Systems, Huge RoofingSolutions, Construction and Renovation Projects etc. Our Purlin roll forming machine could produce C purlin, U purlin, Z purlin, machineable size range as follow: Width:100-300mm, Height: 50-100mm, Thickness:1.5-3mm. According to your section profile, size range, thickness range we could provide you different solutions of purlin roll forming machine to manufacturer a complete range of structual purlins (height and width change using automatic system by motors): If you only need to produce few sizes, we also suggest manually change sleeves, it’s more affordable.

We make different solutions according to customers’ drawing, tolerance and budget, offering professional one-to-one service, adaptable for your all requirements. Whichever line you choose, the quality of SUNWAY Machinery will ensure you obtain perfectly functional profiles.

Profile Drawings

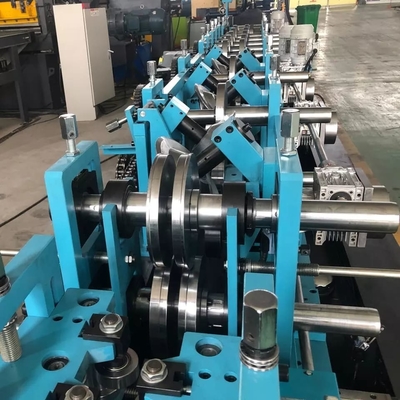

C Z Purlin Roll Forming Machine Production Line

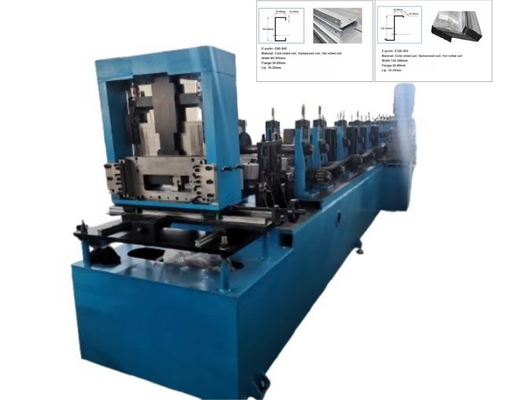

Auto Size Changeable C Z Purlin Roll Forming Machine

C Z Purlin Roll Forming Machine Parameters

Application
