Durable Advanced C And Z Purlin Machine High Output

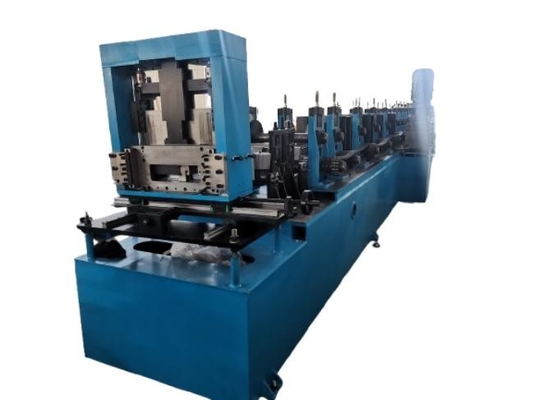

C&Z Purlin Forming Machine

CZ Purlin Roll Forming Machine,C&Z Roll Forming Machine for standard size C80-300MM, Z 100-300MM, Raw material thickness1.5-3.0mm, with three punch hole device, two device to punch the bottom, one device to punch side .

ZTRFM Machinery factory also make C purlin roll forming machine, that is the forming machine only make C shape size from 3inch to 12 inch for example. or CU forming machine or CG purlin machine, with punch hole or not, please tell us your requirement, we will design your required roll forming machines.

This CZ purlin forming machines include 3 ton manual decoiler , forming system with optional punch hole device, post cut device, run out table , PLC control system , run out table

between C and Z , adjust some upper layer rollers with lower rollers by handwheel 180 degree turn.

for different size ,move whole line roller with bottom press control, easy and time saving.

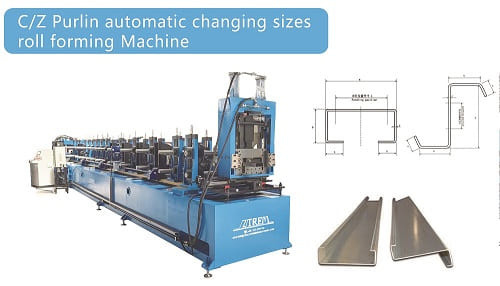

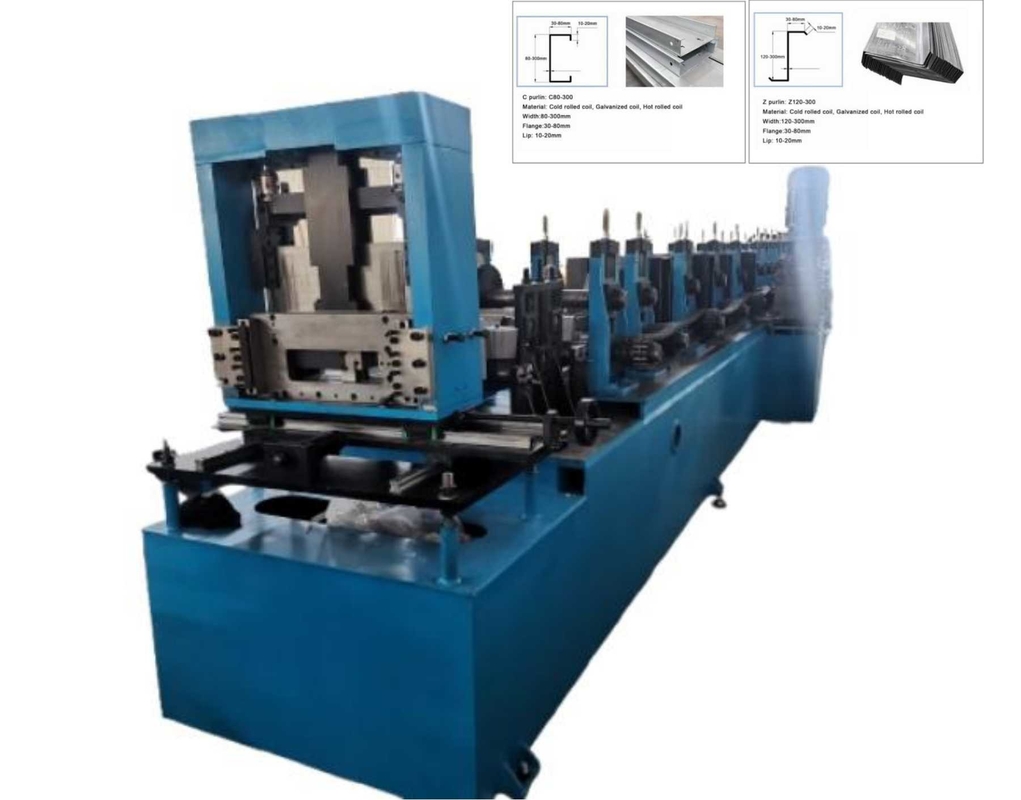

Here is a profile for your reference:

Layout of CZ

C&Z Purlin Forming Machine

Advantage of our purlin machines:
1. The small size less than 120mm of Z purlin made by special design , very straight and not twisted. Generally, the small size of Z purlins made by other factory is not straight and will twist.
2. A 75mm solid shaft is used, and the H-shaped steel is used as the base frame, so that the machine can withstand long-term production without deformation of the machine, thereby ensuring long-term production of quality purlins ;
3. The rollers are GCR15 material and processed by CNC machine tools to ensure the accuracy of the rollers, and thus the accuracy of the final purline.
4. Our cut frames are stress-relieved to ensure that they are not deformed during the long-term production process, making c purlin smoothly.
5. Use Mitsubishi or Siemens operating system with stable performance, simple operation
6. forming speed can reach 10-15 meters per minute
7. The c z purlin with punch machine weighs about9tons

Specifications

Technical Details

APPLICATION

Purlins are quite popular these days and are available in different shapes and sizes, most commonly use as C purlins and Z purlins.
JSR machinery factory make Purlin forming machine, which can produce both C and Z in the same machine, only change one hour to change between C and Z.
Besides, Purlin machine can produce size between 100-300 with easy adjustment, which take only ten minutes.
Important, our purlin machine can design with punch device with function of punch holes on purlin for screwing during installation.

Operate easily , work automatically with PLC controller control.
Decoiler- forming- punch – cut – run out
