Strut Channel Roll Forming Machine Drive By Gear Box 2.5mm Thickness

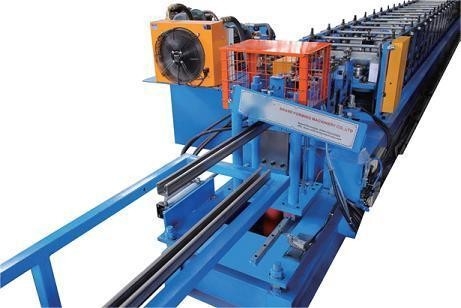

Large Image : Strut Channel Roll Forming Machine Drive By Gear Box 2.5mm Thickness

Product Details:

Place of Origin:	China
Brand Name:	ZTRFM
Certification:	CE,SGS
Model Number:	ZTAC

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	under discuss
Packaging Details:	Nude with anti-rusting coil
Delivery Time:	45 working days
Payment Terms:	L/C, T/T
Supply Ability:	30 sets per month

Contact Now

Strut Channel Roll Forming Machine Drive By Gear Box 2.5mm Thickness

Description

Cable Tray Size:	80 To 600mm	Production Speed:	6-15m/min
Voltage:	380V	Frequency:	50Hz
Main Motor Power:	7.5KW	Working Speed:	7 To 12
Seam:	Welding	Usage:	Roll Forming
Production Capacity:	8-15m/min	Cooling System:	By Water
Product Length Error:	± 1mm/3m	Control Power:	PLC
Warranty:	1 Year	Motor:	Servo Motor
Product Forming Speed:	2~8 M/min
Highlight:	Strut Channel Roll Forming Machine , Gear Box Roll Forming Machine , 2.5mm Thickness Roll Forming Machine

Strut Channel Roll Forming Machine Drive By Gear Box 2.5mm Thickness

Slotted strut Channel Roll Forming Machine is a specialized equipment for producing solar photovoltaic stents. It processes metal materials into the desired bracket profiles through cold bending and molding techniques.

These molding machines usually have a highly automated production process, which can improve production efficiency and product quality.

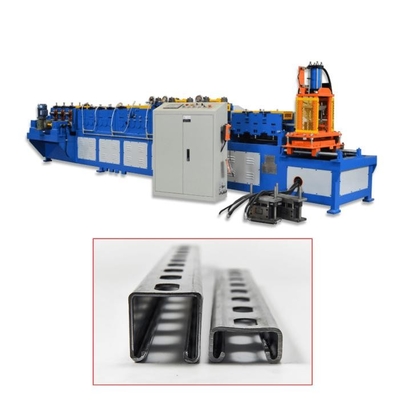

Here is a profile pictures:

1	Suitable Material	GI
2	Width of the raw material	Base on profile
3	Thickness	1.5-2.5mm

Strut Channel Roll Forming Machine Drive By Gear Box 2.5mm Thickness 0

2.The Chart of Process Flow

Uncoiler— Flatten—Servo Feeding& punching—Roll Forming—Rectify—Fly Saw Cutting—Out table

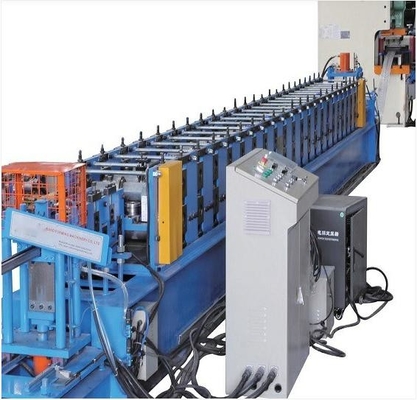

Strut Channel Roll Forming Machine Drive By Gear Box 2.5mm Thickness 1

Strut Channel Roll Forming Machine Drive By Gear Box 2.5mm Thickness

Strut Channel Roll Forming Machine Drive By Gear Box 2.5mm Thickness 2

Specification of Components

No		Technical Specification & Remark
1	3T manual un-coiler	Width of feeding: 350mm Capability: 3 Ton Bound of expand &fight: 380mm—520mm Mode of expand &fight: inner expand &fight by manual Quantity:1
2	Leveling part	Flattener roller: upper is 4 rollers, down is 5 stations(total is 9 rollers) Diameter of flattened shaft:￠70mm, material is 40CR, hardening and tempering Max leveling raw material width: 300mm Leveling raw material thickness: 1-2.5mm Power: 4KW AC motor
3	Servo feeding& punching machine	Servo feeding system This system adopt servo feeding to make high speed and precision Servo power: 2.9KW Servo brand: YASKAWA Quantity: 1 80T JH21-80 punching machine Punching station: 1 station with 6 holes Punching model: punching press Punching tooling base material: JIS S45C steel Punching tooling set material: SKD11 Number of punching mould: 1set Punching dies material: SKD11 Hardness of punching tooling set: HRC58-62 Max punching sheet width: 300mm Punching machine carrying capacity 80T Brand of punching machine: Yang Li Main motor power: 7.5KW, Siemens Punching control cabinet: available

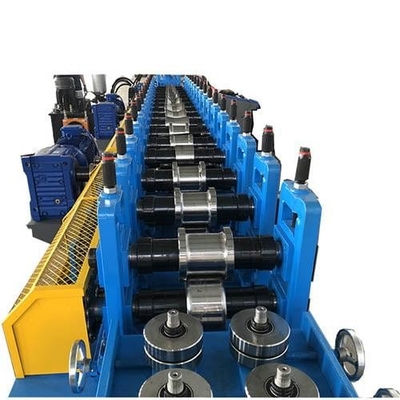

4	Roll forming	Roll station:26stations +1 station of torque head Roller material: Cr12 with heat treatment, HRC 58-82, surface with chrome Shaft diameter: ￠85mm material: 40CR, HRC 250-280 Main motor: 45KW Forming speed: 15-20m/min Machine drive part will be covered with protective cover
5	Fly saw cuttings system	Cutting after forming: Cut the sheet after roll forming to required length Material of blade: Cr12MOV, 58-62 HRC hardness Cutting power by hydraulic,7.5KW Servo power: 3KW Yaskawa Working pressure:16Mpa Cutting and servo in the middle under cutting Length measuring: Automatic encoder length measuring Tolerance of length: +/- 1.0mm for each piece end product
6	Computer Control Cabinet	Programmable setting of profile length and quantity Operating system language: English and Chinese Voltage, Frequency, Phase: 380 V, 50 Hz, 3Phase Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved Length inaccuracy can be amended easily. Control panel: Button-type switch and touch screen Unit of length: millimeter PLC: Siemens HMI: MCGS
