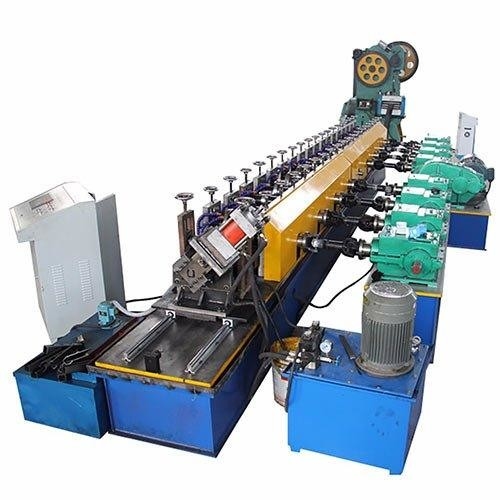

Solar Purlins Roll Forming Machine C40-C160 Automatic Changeover

Solar Purlins Roll Forming Machine C40-C160 Automatic Changeover
Solar Purlins Roll Forming Machine C40-C160 Automatic Changeover Solar Purlins Roll Forming Machine C40-C160 Automatic Changeover Solar Purlins Roll Forming Machine C40-C160 Automatic Changeover Solar Purlins Roll Forming Machine C40-C160 Automatic Changeover Solar Purlins Roll Forming Machine C40-C160 Automatic Changeover

Large Image :  Solar Purlins Roll Forming Machine C40-C160 Automatic Changeover

Product Details:
Place of Origin: China
Brand Name: ZTRFM
Certification: CE,SGS
Model Number: ZTAC
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: under discuss
Packaging Details: Nude with anti coil coating and plastic cover
Delivery Time: 45 working days
Payment Terms: L/C, T/T
Supply Ability: 30 sets per month

Solar Purlins Roll Forming Machine C40-C160 Automatic Changeover

Description
Shaft: 80mm Voltage: 380V
Shaft Material: 40Cr Thickness: 0.5 To 2.0mm
Cutting Motor Power: 3kW Working Type: Full Automatic
Recoiler: 5 Ton 10 Ton Or Others Transmission: Gearbox
Punching Machine: YangLi Brand Product Length Error: ± 1mm/3m
Control System: PLC Shearing: Hydraulic Or Disk Shearing
Stacker: Motor Stacker For The Receving Table Forming Speed: 10-15m/min
Highlight:

solar purlins roll forming machine

,

automatic changeover profile roll forming machine

,

c40 profile roll forming machine

Solar Purlins Roll Forming Machine C40-C160 Automatic Changeover

Strut channels, also known as strut channels or metal framing channels, are widely used for structural support in various applications. The roll forming process plays a crucial role in producing high-quality strut channels with precision and efficiency. We will discuss the importance of strut channels, the roll forming process, and the advantages of utilizing strut channel roll forming machines in manufacturing operations.

Here is a profile pictures:

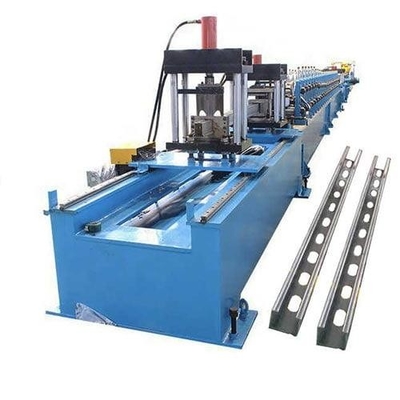

Solar Purlins Roll Forming Machine C40-C160 Automatic Changeover 0

Work flow of Solar Purlins Roll Forming Machine C40-C160 Automatic Changeover:

Hydraulic Decoiler→Feeding And Leveling Device→Hydraulic Punching& Pre-Cutting Device →Roll Forming System→ Servo Controlled Post Cutting→Exit Rack

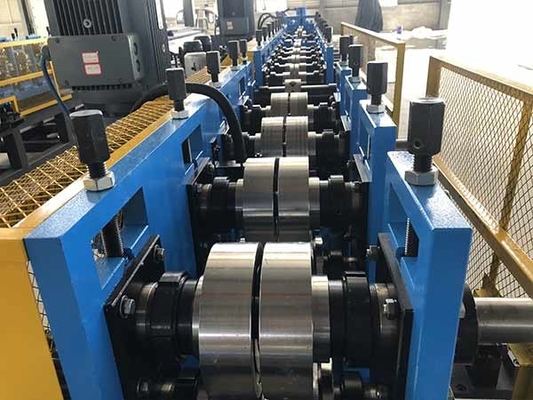

Solar Purlins Roll Forming Machine C40-C160 Automatic Changeover 1

Solar Purlins Roll Forming Machine C40-C160 Automatic Changeover

Solar Purlins Roll Forming Machine C40-C160 Automatic Changeover 2

Features

1.ZTRFM heavy-duty design,whole machine weight more than 20tons,gearbox transmission (high transmission efficiency and accurate transmission ratio) , machine service life more than twice that of other Indian and Chinese cheap machines.

2. One machine for multi-profiles: any C purlin within web range 40-160mm, saving investment and space .

3. Allows you to offer clients 24-hour customized C purlin service an various gauges of material, this includes different widths and flange height combinations.

4. Servo motorized automatic changeover for different C purlinswithin 1-5 minutes, saving time and improving work efficiency.

5.Eight-cylinder punching system can meet various punching holes requirements of the solar industry.

6. European cast steel forging structure with anti deformation and high load bearing capacity, ensures the machine forming accuracy.

7. Servo Controlled Precision Flying Post Cut Off System (for high working efficiency).

8. The latest PLC control system is adopted to ommbine two sets of length counting methods ( infrated counting-hole length counting and encoder-counting-wheel length counting) into one PLC control system.The length counting method can be switched to solve the problem of incompatibility due to the special length of individual orders.

9. Equipped with water cooling system to cool the roller and profile, extend the service life of roller and ensure the quality of finished profiles.

Solar Purlins Roll Forming Machine C40-C160 Automatic Changeover 3

Specifications

Material Applicable material Galvanized Steel(GI),Cold roll steel(CRC)
Material thickness 2.0-4.0mm
With yield strength Q235-550Mpa
Coil Feeding width According to the drawing
Coil ID range 508mm±30mm
Capacity Max. 5 Ton.
Machine Base Frame European free standing structure
Roller Material Cr12 steel, precision machined,hard Chrome Coated
Roller station 22-steps to form
Shaft diameter ф95mm,High Frequency Processing

Cutter



Hardness Heat treatment to HRC58-62 degree
Cutting tolerance ≤±1mm
Power Driving way Gear/Sprocket transmission
Main motor 30KW,Frequency Speed Control
Pump motor for cutter 22KW

PLC Control System



Inverter Siemens / DELTA
Touch Screen Siemens/WEINVIEW
Encoder KOYO (Japan brand) or OMRON (Japan brand)
Control Voltage 24V

1) 5 Ton Hydraulic Decoiler:one set

Hydraulic Control Steel Coil Inner Bore Shrinkage And Stop
Max. Feeding Width:600mm
Coil ID Range:508±30mm,Outside Diameter:1600mm
Max Capacity:5 ton,Motor:3KW,Frequency Speed Control
Oil Pump Motor:2.2KW,With Press Arm
Add Automatic Feeding Power And Self-Stop Device

Solar Purlins Roll Forming Machine C40-C160 Automatic Changeover 4

2) Feeding and Leveling Device

Up Three Down Four Totally Seven Shafts Leveling Device

Shafts Manufactured From GCr15 Steel(=EN31 Steel)

Heat Treatment,HRC 58-62.Diameter=φ105mm

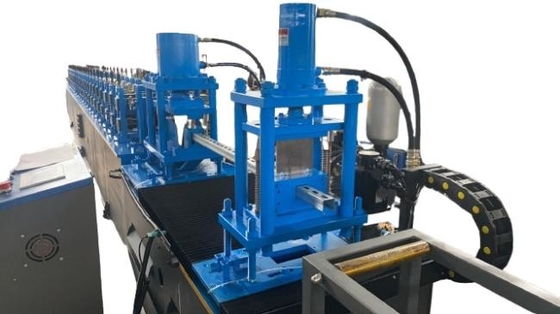

Solar Purlins Roll Forming Machine C40-C160 Automatic Changeover 5

3) Hydraulic Pre-Cutting & Punching Device

Pre-punching and Pre-Cutting, use the same hydraulic system

Hydraulic Motor:22KW,Hydraulic Pressure Range: 0-16Mpa
Punching And Cutting Tool Material:Mold Steel Cr12MoV(=SKD11 steel

With One Million Times cutting Life),Heat Treatment To HRC58-62 Degree
8-cylinders Hole Punching System For Punching Both On Web And Flange

Solar Purlins Roll Forming Machine C40-C160 Automatic Changeover 6

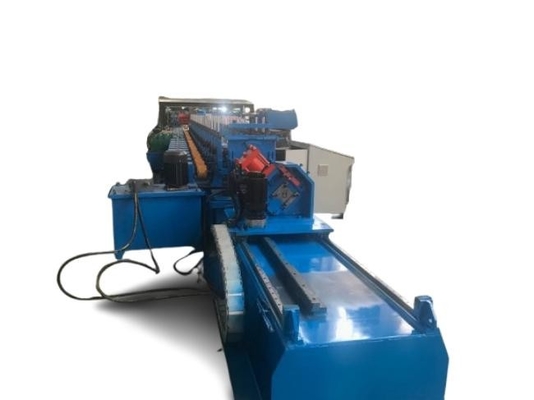

4) Main Machine

Rollers manufactured from Cr12 steel, precision machined,hard Chrome Coated

Shafts manufactured from 45# steel,Quenching and tempering , hard chrome

Real forming speed:15-20m/min(including punching and cutting)

Solar Purlins Roll Forming Machine C40-C160 Automatic Changeover 7

5) Servo Controlled Post Cutting

45 Degree Hydraulic Oblique Sear: Short Shearing Stroke, Small Cutting Resistance And Fast Shearina Speed

Solar Purlins Roll Forming Machine C40-C160 Automatic Changeover 8

6) PLC Control System

Control The Quantity And Cutting Length Automatically.

Input The Production Data(Production Batch,pcs,Length,etc.) On The Touch Screen.
It Can Finish The Production Automatically.
Combined With: PLC, Inverter, Touch Screen, Encoder, etc.

Solar Purlins Roll Forming Machine C40-C160 Automatic Changeover 9

Application Case

Solar Purlins Roll Forming Machine C40-C160 Automatic Changeover 10

Contact Details
RFM Cold Rolling Forming Machinery

Contact Person: Amerilia cui

Tel: 008615127755788

Send your inquiry directly to us (0 / 3000)
