Heavy Duty Shelf Bracket Profile Shelf System Steel Upright Rack Making Roll Forming Machine

Large Image : Heavy Duty Shelf Bracket Profile Shelf System Steel Upright Rack Making Roll Forming Machine

Product Details:

Place of Origin:	China
Brand Name:	ZTRFM
Certification:	CE,SGS
Model Number:	upright racking system

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Nude package with anti oil
Delivery Time:	45 working days
Payment Terms:	L/C, T/T
Supply Ability:	30 sets per month

Contact Now

Heavy Duty Shelf Bracket Profile Shelf System Steel Upright Rack Making Roll Forming Machine

Description

Forming_Steps:	13-16	Usage:	Upright Profile Making Machine
Size:	Customized	Roller Station:	28 Stations System
Main Motor Power:	3-15kw	Control_System:	PLC
Shaft Diameter:	80mm	Main_Motor:	Taiwan Delta
Length:	Customizable	Cutting Length:	Accurate Cutting Width Adjustable
Type:	Roller Forming Machine	Shearing:	Flying Tracking
Product_Name:	Shelf Panel Roll Forming Machine	Width:	1000-1250 Mm
Decoiler:	Automatic Or Manual One
Highlight:	Steel Upright Rack Roll Forming Machine , Profile Shelf System Roll Forming Machine , Supermarket Shelf Panel Making Machine

Heavy Duty Shelf Bracket Profile Shelf System Steel Upright Rack Making Roll Forming Machine

Upright Rack(also called Uprights or Upright Columns) vary in size and design depend on the load capacity and styles. Such as L Shape ( Light Capacity), C Shape (Medium Capacity), Special C Type for heavy Capacity. Holes(Tear Drop Design) and slots are punched during producing so that the load beams can be mounted into the Upright Racks.

Pallet Rack Uprights/Upright Rack Roll Forming Machine is designed to make the upright in batch fully automatically. Featuring a 3″x 3″ standard column design and 5″ x 8″ base plate. Regular duty uprights are constructed of 16 gauge steel with a 16,100 lbs. capacity. Heavy duty uprights feature 14 gauge steel construction with a capacity of 23,300 lbs. (regular and heavy duty capacities based on 36″ maximum shelf spacing). Uprights utilize a bolt together design for easy component replacement. Beams can be adjusted every 2″. Upright Rack(also called Uprights or Upright Columns) vary in size and design depend on the load capacity and styles. Such as L Shape ( Light Capacity), C Shape (Medium Capacity), Special C Type for heavy Capacity. Holes(Tear Drop Design) and slots are punched during producing so that the load beams can be mounted into the Upright Racks. The heavy Upright Racks thickness up to 2.5mm.

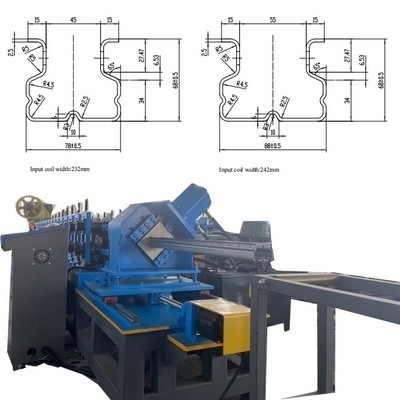

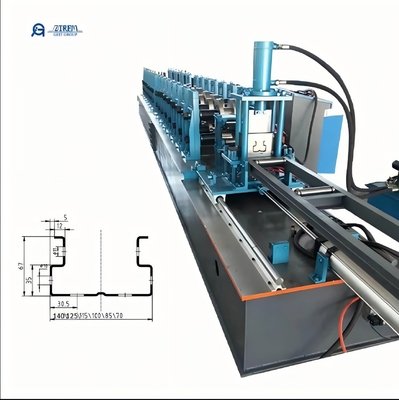

Here are some drawing profile for your reference:

Heavy Duty Shelf Bracket Profile Shelf System Steel Upright Rack Making Roll Forming Machine 0

Working flow

Heavy Duty Shelf Bracket Profile Shelf System Steel Upright Rack Making Roll Forming Machine 1

Heavy Duty Shelf Bracket Profile Shelf System Steel Upright Rack Making Roll Forming Machine

Heavy Duty Shelf Bracket Profile Shelf System Steel Upright Rack Making Roll Forming Machine 2

Punching machine	Punching power	80T
Feeding Part	Pressure roller material	Stainless steel
Feeding Part	Feeding width adjustment	Manual
Main roll forming machine	Voltage	220V 60Hz 3Phase (as customer request)
	Frame type	Molding frame
	Drive mode	1.2 inch Chain with Gear drive
	Material of rollers	GCr12 Quenching
	Material of shafts	45# steel with tempering
	Diameter of shafts	Φ80mm
	Number of rollers	20 rows of roller station
	Main motor power	11 kw + 11 kw
	Material thickness	2.0mm
	Forming speed	10 m per minute

Main parameters

Heavy Duty Shelf Bracket Profile Shelf System Steel Upright Rack Making Roll Forming Machine 3

Product Description

Hydraulic decoiler

1. Has power, it can work automatically
2. Automatically adjust the decoiler to fit into the coil accorind to the coil diameter
3. With Pneumatic braking system
4. With press arm to keep coil from loosing
5. With speed sensor to match with whole line's speed
6. levelling rollers: up 3 + down 4

Heavy Duty Shelf Bracket Profile Shelf System Steel Upright Rack Making Roll Forming Machine 4

Punching machine
Pressure:63 tons
Brand: Yangli Brand, China
Speed: 60 times/min
servo feeding device installed on the punching machine

Heavy Duty Shelf Bracket Profile Shelf System Steel Upright Rack Making Roll Forming Machine 5

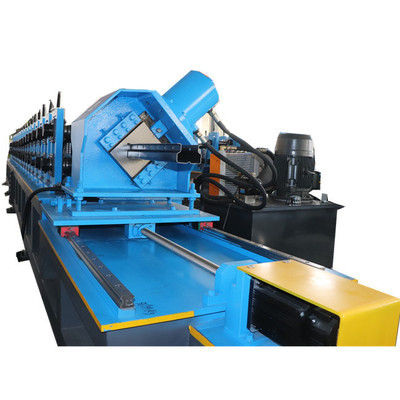

Main forming machine:
rolling station:19 rows
shaft diameter: 70mm
shaft material: 45#, tempering treatment
rollers material: GCr15, Cr12 quenched
machine structure: arch structure
basice frame: steel plate welded, box structure
transmission : by chains
main motor power: 11kw+11kw
cutting type: hydraulic cutting
hydraulic station power: 5.5kw

Heavy Duty Shelf Bracket Profile Shelf System Steel Upright Rack Making Roll Forming Machine 6

PLC electric control cabinet
PLC, frequency: Delta brand/ Simens brand
low pressure electric part: famouse brand
encoder: Omron brand

Heavy Duty Shelf Bracket Profile Shelf System Steel Upright Rack Making Roll Forming Machine 7

Tag:

Contact Person: Amerilia cui

Tel: 008615127755788
