Advanced Shelf Panel Roll Forming Machine For Upright Racks With Punching And Cutting Systems

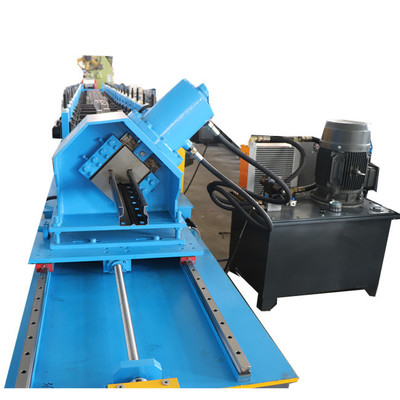

Large Image : Advanced Shelf Panel Roll Forming Machine For Upright Racks With Punching And Cutting Systems

Product Details:

Place of Origin:	China
Brand Name:	ZTRFM
Certification:	CE,SGS
Model Number:	upright racking system

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Understand discuss
Packaging Details:	Nude package with anti oil
Delivery Time:	45 working days
Payment Terms:	L/C, T/T
Supply Ability:	30 sets per month

Contact Now

Advanced Shelf Panel Roll Forming Machine For Upright Racks With Punching And Cutting Systems

Description

Cutting System:	Hydraulic Cutting	Color:	Customize
Punching:	YangLi Brand 80 Ton	Weight:	About 5T
Rollers:	18-31	Cutting Length:	Accurate Cutting Width Adjustable
Size:	Customized	Voltage:	380V/50Hz/3Phase
Shaft Diameter:	80mm	Roller Stand:	Cast Steel Structure
Maintenance:	Low	Thickness:	0.8-1.5mm
Type:	Universal Teardrop Rack Upright	Cutting Type:	Hydraulic Cutting
Material:	Galvanized Steel
Highlight:	Cutting Shelf Panel Roll Forming Machine , Punching Shelf Panel Roll Forming Machine , Advanced Shelf Panel Making Machine

Shelf System Steel Upright Rack Making Machine

:Shelf uprights are crucial for the safety and efficiency of a detachable shelf system. They are made of cold-formed punching thin-walled steel and have a residual processing stress. The design and selection of uprights are essential for the overall shelf system’s safety and eff iciency The assembly of shelves consists of basic parts like uprights, beams, and optional accessories. The shelf upright’s stability is influenced by the physical properties of the materials used, mold design, and manufacturing accuracy.

The Shelf System Steel Upright Rack Making Machine is built with cutting-edge technology to ensure precision and accuracy during the roll forming process. With constant precision and great efficiency, cut sheet metal into diverse profiles. The feeding and straightening units, roll forming stations, punching and cutting systems, and control systems are all included in the Upright Roll Forming Machine.

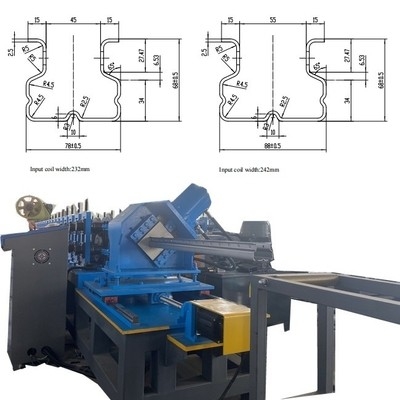

The required profile drawing: material thickness 2.0 to 2.5mm

Advanced Shelf Panel Roll Forming Machine For Upright Racks With Punching And Cutting Systems 0

About the punching part: better you can give me the exactly design you like.

Advanced Shelf Panel Roll Forming Machine For Upright Racks With Punching And Cutting Systems 1

The work flow for upright rack forming machine

Advanced Shelf Panel Roll Forming Machine For Upright Racks With Punching And Cutting Systems 2

Shelf System Steel Upright Rack Making Machine

Advanced Shelf Panel Roll Forming Machine For Upright Racks With Punching And Cutting Systems 3

Packing list-upright rack forming machine

No.	Name	Unit	Quantity	Remark
Part 1	5T decoiler with Leveling device	set	1	Automatic
Part 2	Punching machine with die	set	1
Part 3	Main roll former with cutter	set	1
Part 4	PLC control station	set	1	Chain drive
Part 5	Hydraulic oil pump Tracking cutting system	set	1	Delta brand
Part 6	Product collect table	set	1	6m length

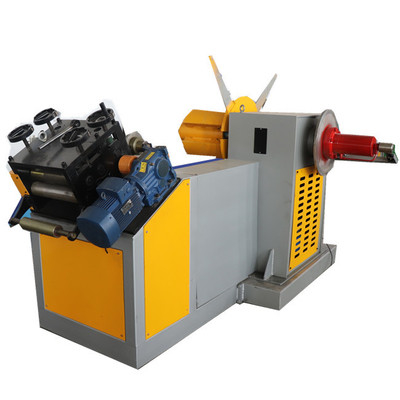

Decoiler with the leveling machine

Work type

Auto type

Loading capacity

3 Tons

Coil inner diameter

450-550 mm (adjustable)

Leveling shaft	9 pieces
Shaft diameter	70 mm
Driving motor power	5.5 kw

Advanced Shelf Panel Roll Forming Machine For Upright Racks With Punching And Cutting Systems 4

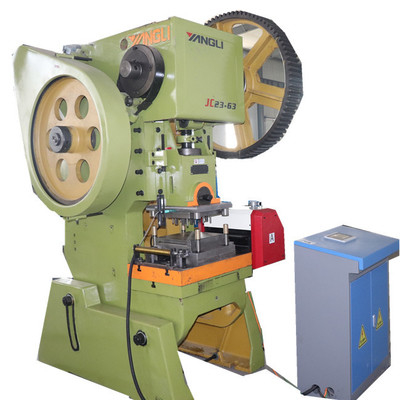

Punching machine punch(Yangli Brand )

Working power	110 tons
Hole punch quantity	8 holes one time
Work speed	60 times per minute
Feeder	Servo feeder
Punch die	Three sets

Advanced Shelf Panel Roll Forming Machine For Upright Racks With Punching And Cutting Systems 5

About the punching mold design:

1 set combined mold can be used for 3 sets of sizes. By adjust the mold in and out with handrail.
This price contains one working and one spare part

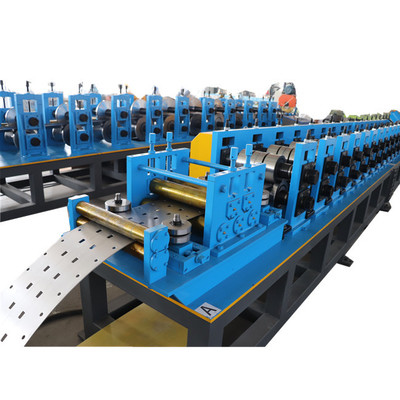

Roll forming system

Rolling shaft material	40Cr
Shaft diameter	80 mm
Roller material	Cr12 HRC 56-58
Rolling station	18 stations
Work speed	0-20m/min
Machine frame	Iron casting vertical structure 35 to 45mm, and another middle plate Each layer 20mm middle plate.
Machine body	steel plate welded with grinding
Motor brand	Siemens
Work power	22 kw (two motors driving) and two Linear motors
Transmission	chain
Leveling station	5 shafts with lost of shaping rollers
Straightening	4 vertical rollers
Single side by gear transmission and with two servo motor for size changing:
Whole long shaft, the machine frame will be moved according to the PLC set size. Whole frame will be move on the shaft.

Advanced Shelf Panel Roll Forming Machine For Upright Racks With Punching And Cutting Systems 6

PLC control system

Frequency brand	Siemens (original)
PLC brand	Siemens (original)
Screen type	Touch screen & buttons
Screen language	English/Chinese/ or other languages
Cut command	Yes
Profile length set-up	Yes
Batch quantity program	Yes

Advanced Shelf Panel Roll Forming Machine For Upright Racks With Punching And Cutting Systems 7

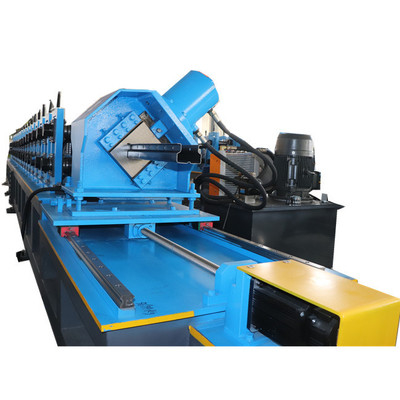

Hydraulic Servo cutting system

Hydraulic system brand	YUKEN standard (made in China)
Work type	Hydraulic running cutting
Driving method	By pillar type Cylinder
Hydraulic motor power	5.5 kw
Cutter material	GB-Cr12
Cutting length tolerance	±1mm/3m
Cutting feature	Low sounds and steady work condition

Advanced Shelf Panel Roll Forming Machine For Upright Racks With Punching And Cutting Systems 8

Product collect table

Length	6 meters
Width	0.5 meter
Work type	Pneumatic

Advanced Shelf Panel Roll Forming Machine For Upright Racks With Punching And Cutting Systems 9

How to change the cutting blade for different sizes?

For different sizes, please change the cutting blades here.

Advanced Shelf Panel Roll Forming Machine For Upright Racks With Punching And Cutting Systems 10

Tag:

Contact Person: Amerilia cui

Tel: 008615127755788

Other Products

Material: GI

Shaft: 90mm

Adjustable Width Linear Ppgi 0.2mm Shelf Panel Roll Forming Machine

Material: PPGI, GI or others

Thickness: 0.2 to 1.2mm

Width: adjustable type

speed: 15 to 20 meter per minute

Advanced Shelf Panel Roll Forming Machine For Upright Racks With Punching And Cutting Systems

Advanced Shelf Panel Roll Forming Machine For Upright Racks With Punching And Cutting Systems

Advanced Shelf Panel Roll Forming Machine For Upright Racks With Punching And Cutting Systems

Cutting Shelf Panel Roll Forming Machine

Punching Shelf Panel Roll Forming Machine

Advanced Shelf Panel Making Machine

supermarket shelving panel roll forming machine,

1.2mm panel roll forming machine,
