Heavy Duty Upright Roll Forming Machine For Warehouse Shelf

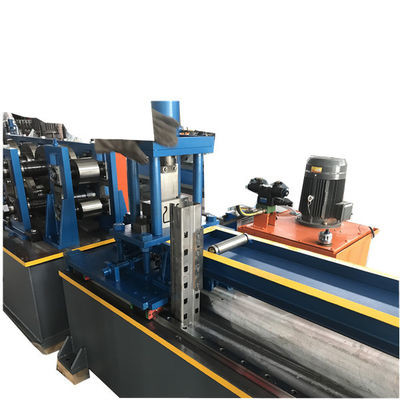

Large Image : Heavy Duty Upright Roll Forming Machine For Warehouse Shelf

Product Details:

Place of Origin:	China
Brand Name:	ZTRFM
Certification:	CE,SGS
Model Number:	upright racking system

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Understand discuss
Packaging Details:	Nude package with anti oil
Delivery Time:	45 working days
Payment Terms:	L/C, T/T
Supply Ability:	30 sets per month

Contact Now

Heavy Duty Upright Roll Forming Machine For Warehouse Shelf

Description

Locking Machine:	Manual	Cutting Blade Material:	Cr12
Decoiler:	Hydraulic Decoiler	Productivity:	High
Thickness:	1.5 To 3.0mm	Pinching Device:	2 Steps Of Pinching
Cutting System:	Hydraulic Cutting	Material Thickness:	2.5mm
Roller Station:	28 Stations System	Control System:	PLC
Shaft Diameter:	80mm	Voltage:	380V/50Hz/3Phase
Shaft:	90mm	Cutting Type:	Hydraulic Cutting
Type:	Roller Forming Machine
Highlight:	Heavy Duty Upright Roll Forming Machine , Warehouse Shelf Roll Forming Machine , Heavy Duty Roll Forming Machine

Heavy duty Upright Roll Forming Machine for warehouse shelf

Our machine can produce different sizes and thickness for both light upright and heavy upright,high precision in holes and length.We also support customization.

There are three types of shelf shelves: light shelves, medium shelves, and heavy shelves.

Light shelf column parameters: height 2m, 38*38 (mm), each layer bears weight: 100kg-150kg;

The column specification of the medium-sized laminate shelf is 80*40 (mm), and each layer can carry 200-250KG. Column height 2m;

Heavy-duty storage shelves: These shelves generally do not have standard specifications, and the column specifications are designed according to customer needs.

Our machine can produce different sizes and thickness for both light upright and heavy upright.

The composition and picture of the fnished shelf:

Heavy Duty Upright Roll Forming Machine For Warehouse Shelf 0

The profile drawings of the Upright:

Heavy Duty Upright Roll Forming Machine For Warehouse Shelf 1

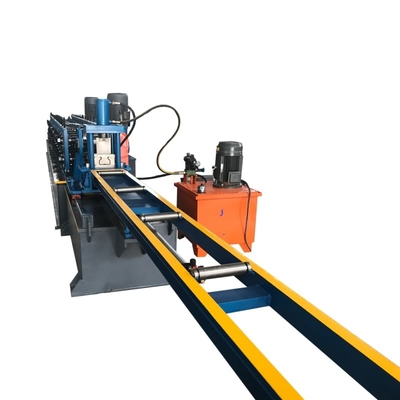

The layout of the whole production line:

Heavy Duty Upright Roll Forming Machine For Warehouse Shelf 2

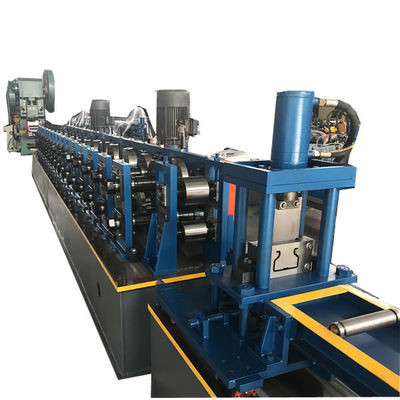

Heavy duty Upright Roll Forming Machine for warehouse shelf

Heavy Duty Upright Roll Forming Machine For Warehouse Shelf 3

The main technical specifications:

1. Hydraulic decoiler: 5 tons capacity(support customization)

2.Leveler: 7 rollers,up 3 down 4

3.Punching machine:Yangli brand,pneumatic,80Tons,with servo feeder

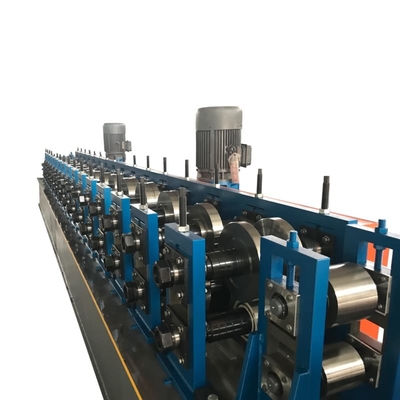

4. Roll forming machine:

16 roller stations
Roller material:Cr12 with quenched treatment
70mm shaft diameter
Shaft material:45# steel
Main motor power:11kw*2 sets
Transmission:By chain(Gear and gearbox for optional)
Cutting system:Hydraulic cutting system,no waste material
Hydraulic power:5.5kw
Cutting length tolerance:+/-0.5mm

5.Run-out table:6 meters

6.Control system:PLC system,DELTA brand or Siemens brand

Heavy Duty Upright Roll Forming Machine For Warehouse Shelf 4

The finished product:

Heavy Duty Upright Roll Forming Machine For Warehouse Shelf 5

Related machines:

Heavy Duty Upright Roll Forming Machine For Warehouse Shelf 6

Selective Pallet Racking rolling forming machine machine elements
1	Hydraulic decoiler	1 set
2	Punching system	1 set
3	Coil feeder	1 set
4	Leveling Machine	1 set
5	Roll Forming	1 set
6	Hydraulic Cutting	1 set
7	PLC Control System	1 set
8	Hydraulic Station	1 set
9	Run-out Table-(Un-powered)	1 set
Main forming machine : 1) Forming steps: 18 steps 2) Outer diameter: 70mm 3) Machine frame (type): memorial arch frame, Thickness of memorial arch frame: 30mm 4) Roller information: A. Raw material: GCr12MoV B. Quenched degree: 56-58°C 5) Shaft material: 45# steel with heat treatment and hard chrome plated on the surface 6) Main motor power: 18.5kw, Reducer ratio: 1:14, Reducer Type: Hardened reducer 7) With cooling device
