Product Details:
|
| Control System: | PLC | Cutting Type: | Hydraulic Cutting |
|---|---|---|---|
| Main Power: | 15*2 Kw | Shaft Material: | 40Cr |
| Product Type: | Roll Forming Machine | Cutting Blade Material: | Cr12 Frequency Quenching |
| Roller Stations: | 24 | Roller Diameter: | 80mm |
| Machine Frame: | 500# H Steel Welded | Shaft: | 90mm With Embossing Roller 120mm |
| Material Of Shaft: | 45 Steel | Receiving Table: | Stacker Or Manual One |
| Working Speed: | 15 To 20 Meter Per Minute | Application: | Wall Cladding Sheet |
| Highlight: | Enhanced Efficiency Roll Forming Machine,Industrial Double Deck Roll Forming Machine,Enhanced Structural Support Roll Forming Machine |
||
Panel Double Deck Roll Forming Machine
As we know that the up layer and down layer in the double deck roll forming machine can’t work at the same time,in this way,the production quantity will not meet the increasing demand any more.But the factory space is not enough to put two single layer roll forming machines,so it is very necessary to buy a high speed double deck roll forming machine.
We Cangzhou Zhongtuo Roll Forming Machinery Co.,Ltd is specialized in manufacturing the Roofing Sheet Roll Forming Machines,especially for the high speed machines.We have produced the machine for customers from USA,France,Algeria,Bahrain and Kenya.
The Panel Double Deck Roll Forming Machine is an advanced industrial equipment designed for efficient production of double-deck panels. With precision engineering, this machine effortlessly shapes metal sheets into high-quality, dual-layered panels. Its automated operations ensure consistent and accurate results, optimizing production efficiency and reducing labor costs. The Panel Double Deck Roll Forming Machine is a versatile solution, capable of creating various panel sizes and designs to meet diverse construction needs. It is an essential tool for manufacturers aiming to deliver reliable and durable double-deck panels for commercial, industrial, and residential applications, providing enhanced structural support and efficient building solutions.The R panel and AG panel Double Deck Roll Forming Machine is an advanced industrial equipment designed for efficient production of double-deck panels with R panel and AG panel profiles. With precision engineering, this machine effortlessly shapes metal sheets into high-quality, dual-layered panels featuring the distinctive characteristics of both R panel and AG panel designs. Its automated operations ensure consistent and accurate results, optimizing production efficiency and reducing labor costs.

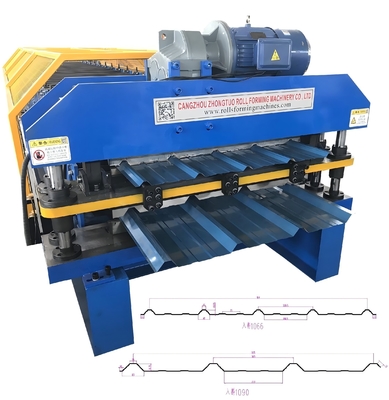

Panel Double Deck Roll Forming Machine
The introduction of the High Speed R panel and AG panel Double Deck Roll Forming Machine:
1.Components:
2.Technical specifications:
3.The features of the machine:
4.Pictures of the machine:

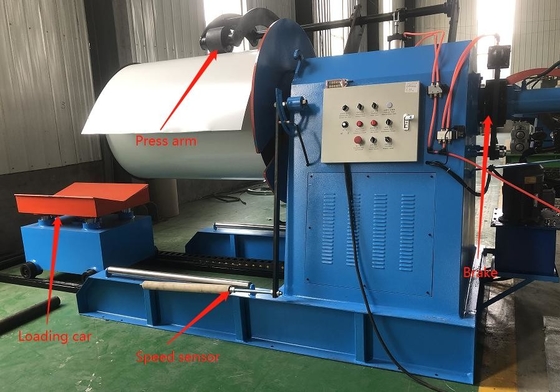

Hydraulic decoiler

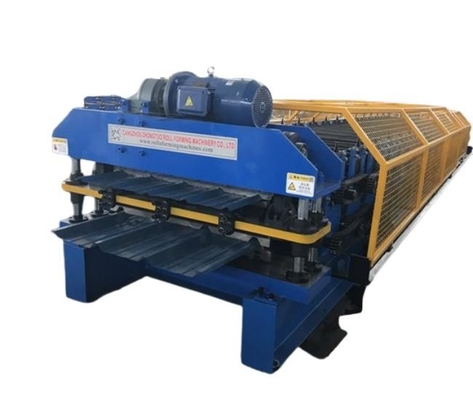

High speed roll former

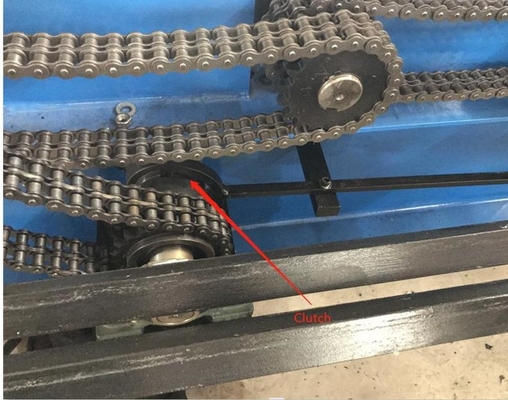

Clutch

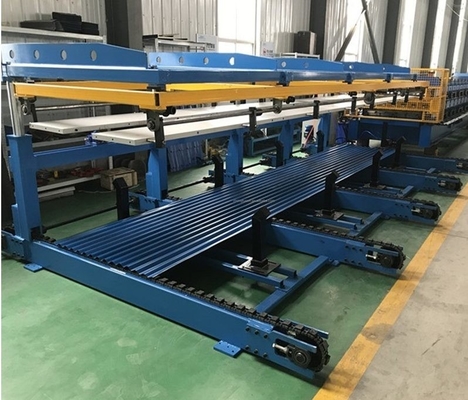

Auto stacker
Decoiler
| Type | Manual type(standard) | Hydraulic type(option) |
| Photo | ||
| Width | 1250mm | 1500mm |
| Capacity | Max 5tons | From 5-15 tons |
| Inner diameter | φ508-610mm | φ508-610mm |
| Outer diameter | φ1500mm | φ1800mm |
roll forming
| Item | Parameter detail | ||||||||
| Processing Material | GI and PPGI | ||||||||
| Material thickness | 0.25-0.8mm | ||||||||
| Machine frame | 360#H steel, Adopt diagonal line welding, leveling instrument measurement to make sure the final frame is high-precision | ||||||||
| Machine siding panel |
|
||||||||
| Forming stations | 20-38 stations(according to the profiles) | ||||||||
| Machine rollers | high grade No.45 forged steel,plated hard chroming with thickness 0.05mm Processing way:cutting--drilling--CNC lathing--quenching--CNC lathing--chroming |
||||||||
| Machine Shaft | φ80-90mm high garde No.45 steel after treatment, | ||||||||
| Machine spacers | CNC lathing in high-precision | ||||||||
| Machine bearings | China Haerbin bearing or SKF international bearing(option) | ||||||||
| Driving system | 2 inch chain or gear box(option) | ||||||||
| Machine power | 15kw-22kw(according to the profiles) | ||||||||
| Machine working speed | 8-12m/min or 10-30m/min(option) | ||||||||
| Machine adjust type | After machine installation, we will test it ourselves, compare with the profile drawing, the difference is controlled in 0.5mm |
Cutting
| Type | bearing sliding type |
| Blade material | Cr12mov quenching and grinding |
| Frame processing | the whole bottom frame is grinding for high-precision |
| Blade processing | wire-electrode cutting, but the upper balde can not be straight. this is technology |
| Working | Hydraulic type |
Stacker
| Type | Manual | Auto(option) |
| Length | 1.5m-2m | 6m or 12m |
PLC
| Main item | Parameter detail |
| PLC | Delta(standard) or according to your request |
| Inverter | China brand(standard) or according to your request |
| Touch screen | Mcgs(standard) or according to your request |
| Encoder | China brand(standard) or according to your request |
| Voltage/HZ/Phase | 380v/50-60hz/3phase |
Hydraulic pump:
| Main Item | Parameter detail |
| Motor | 3kw China brand or according to your request |
| Pump | China brand or according to your request |
| Solenoid valve | China brand or according to your request |
| Cooling system | Cooling fan |
