Product Details:
|
| Transport Package: | Plastic Film, Container | Diameter Of Shafts: | 90mm |
|---|---|---|---|
| Voltage: | 380V/50Hz/3Phase | Type: | With Metal Embossing |
| Machine Structure: | Middle Plate Welded Frame | Effective Width: | 688mm |
| Frame: | 400 H Steel Welded | Machine Frame Thickness: | 20mm |
| Forming Speed: | 8-12m/min | Rolling Station: | 28 Rolling Stations |
| Input Cpil Width: | Adjustable | Main Power: | 15*2 Kw |
| Shaft: | 90mm With Embossing Roller 120mm | Transmission: | Double Chain |
| Highlight: | Single Wave Rolling Forming Machine,Steel Decking Rolling Forming Machine,Single Wave deck roll former |
||
Steel Decking Single Wave Rolling Forming Machine
Steel decking single wave rolling forming machine is designed for customer which can be used for making trapezoidal steel decking single wave in batch fully automatically. MD225 decking is the most advance trapezoidal steel decking product on the market and is a direct alternative to precast concrete planks, delivering unpropped span capabilities of up to 6.0m It is a long spanning metal decking panel installed on the top flange of the steelwork. It also can be designed compositely to two waves types and by lowering down the wave height.
Here I will share some drawing profiles for your reference:

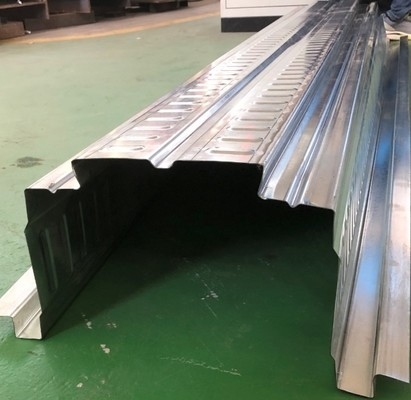

Single wave:
Two wave types:
Steel Decking Single Wave Rolling Forming Machine
Here are some Steel Decking Single Wave Rolling Forming Machine parameters for your reference:
| Roll forming machine | Feeding&Guiding device | Leveling part with the hydraulic shearing, automatically PLC control | |
| Rolling shaft material | 45# STEEL | ||
| Shaft diameter | 90mm | ||
| Roller material | 45# steel | ||
| Rolling station | 32 stations | ||
| Work speed | 15 to 20 m/min | ||
| Machine structure | Middle plate welded frame | ||
| Machine basic frame | 500# H steel welded | ||
| Bearing | Roller bearing | Famous brand of Harbin | |
| Work power | 15 kw | ||
| Transmission | By Chains | With cover | |
Steel Decking Single Wave Rolling Forming Machine
1.Zhongtuo metal decking machine can produce a variety of specifications of the floor bearing plate, can also be customized according to the customer’s requests, to meet the needs of all customers.
2.Machine working speed can possess the production speed of up to 25 m/min.
3.Modular design and manufacturing. parts universal rate are high, simple maintenance.
4.The enhanced design of the mainframe structure and quality control allows our metal rolling equipment to produce thicker plates for you.
5.AII the processing of the frame is completed at one time, and the advanced machine tools ensure the accuracy of the size and position of each fit so that our molding unit almost does not need repeated debugging, with very little dependence on personnel.
6.The automatic program control technology is adopted. The parameter setting of the metal deck roll forming machine is simple and convenient, and the degree of automation is high. The system’s self-learning ability is strong, and the control system uses the high-quality brand. In addition, the man-machine interaction interface is also very user-friendly.
7.For the special design of the shaft and embossing rollers, it can make sure the metal profile has good overlapping effect and good profile shape size.
