Cellular Decking Metal Roof Decking Making Machine For Steel Structure Construction

Description

Dimension:	12000mm1500mm1300mm	Speed:	15 To 20 Meter Per Minute
Two Motors Drive:	15 KW * 2	Voltage:	380V
Plc Brand:	Delta	Roller Diameter:	80mm
Model:	FD-100	Production Capacity:	8-12m/min
Control Mold:	PLC Control Cabinet	Raw Material:	GI, Hot Rolled
Rolling Shaft:	90 Mm	Cutting Type:	Hydraulic
Power Source:	Electric	Control System:	PLC
Material Of Shaft:	45 Steel
Highlight:	Cellular Metal Roof Decking Making Machine , Cellular floor decking forming machine , Cellular floor deck roll forming machine

Cellular Decking Metal Roof Decking Making Machine

Cellular Decking Metal Roof Decking Making Machine is designed for making the metal decking sheets in batch and fully aromatically.

What is Cellular Decking Metal Roof Decking Making Machine?

Galvanized floor deck, suitable for steel structure construction, greatly improving the stiffness of the floor

1.To meet the requirements of rapid construction of the main steel structure, it can provide a firm working platform in a short time, and can use multiple floors to lay profiled steel plates and layer-by-layer pouring concrete slabs for flow construction.

2.In the use stage, the floor deck is used as the tensile reinforcement of the concrete floor, which also improves the stiffness of the floor and saves the amount of steel and concrete.

3.The embossing on the surface of the profiled plate makes the maximum bonding force between the floorboard and the concrete, so that the two form a whole, with stiffeners, so that the floorboard system has a high-strength bearing capacity.

Here is one standard B deck for your reference:

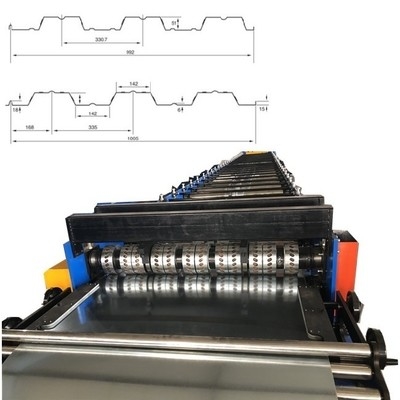

Cellular Decking Metal Roof Decking Making Machine For Steel Structure Construction 0

Cellular Decking Metal Roof Decking Making Machine

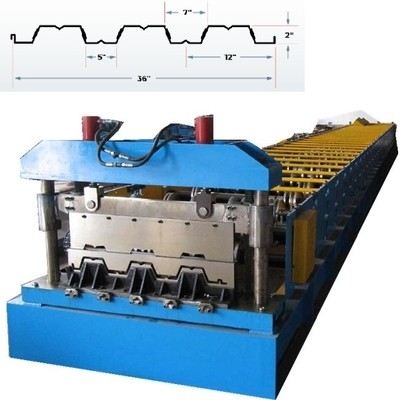

Cellular Decking Metal Roof Decking Making Machine For Steel Structure Construction 1

Advantages of Cellular Decking Metal Roof Decking Making Machine:

1.Both the feeding port and the cut-off have added oiling devices to ensure the smoothness of the machine and avoid the falling of the zinc layer

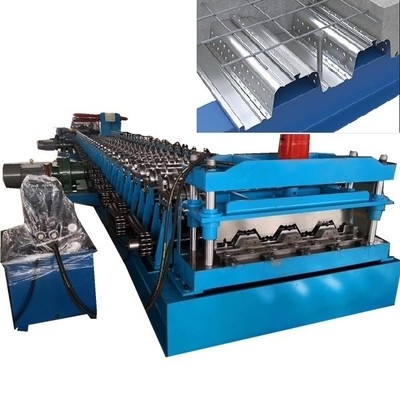

Cellular Decking Metal Roof Decking Making Machine For Steel Structure Construction 2

2.Split molding mode, more molding volleyball, better molding effect

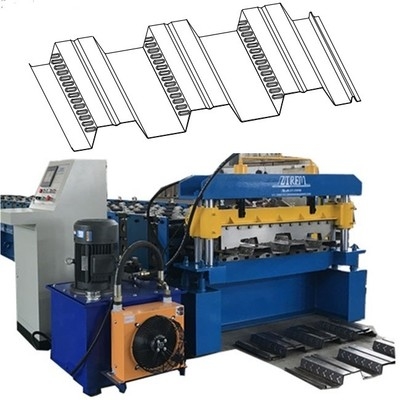

Cellular Decking Metal Roof Decking Making Machine For Steel Structure Construction 3

3.For high peaks, we will add chains to ensure the stable operation of the machine

Cellular Decking Metal Roof Decking Making Machine For Steel Structure Construction 4

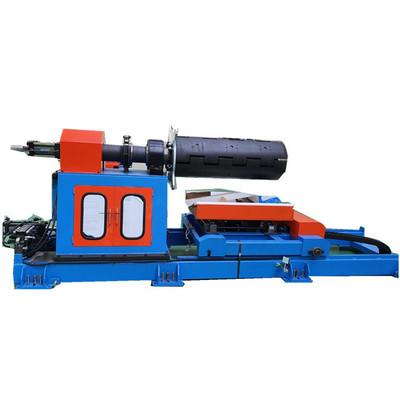

Decoiler

Type	Manual type(standard)	Hydraulic type(option)
Width	1250mm	1500mm
Capacity	Max 5tons	From 5-15 tons
Inner diameter	φ508-610mm	φ508-610mm
Outer diameter	φ1500mm	φ1800mm

roll forming

Item

Parameter detail

Processing Material

GI and PPGI

Material thickness

0.25-0.8mm

Machine frame

360#H steel, Adopt diagonal line welding, leveling instrument measurement to make sure the final frame is high-precision

Machine siding panel

plate type	Pillar type(option)

Plate thickness:20mm	Pillar thickness:30mm
Painting:normal painting	painting:Chroming

Forming stations

20-38 stations(according to the profiles)

Machine rollers

high grade No.45 forged steel,plated hard chroming with thickness 0.05mm
Processing way:cutting--drilling--CNC lathing--quenching--CNC lathing--chroming

Machine Shaft

φ80-90mm high garde No.45 steel after treatment,

Machine spacers

CNC lathing in high-precision

Machine bearings

China Haerbin bearing or SKF international bearing(option)

Driving system

2 inch chain or gear box(option)

Machine power

15kw-22kw(according to the profiles)

Machine working speed

8-12m/min or 10-30m/min(option)

Machine adjust type

After machine installation, we will test it ourselves, compare with the profile drawing, the difference is controlled in 0.5mm

Cutting

Type	bearing sliding type
Blade material	Cr12mov quenching and grinding
Frame processing	the whole bottom frame is grinding for high-precision
Blade processing	wire-electrode cutting, but the upper balde can not be straight. this is technology
Working	Hydraulic type

Stacker

Type	Manual	Auto(option)
Length	1.5m-2m	6m or 12m

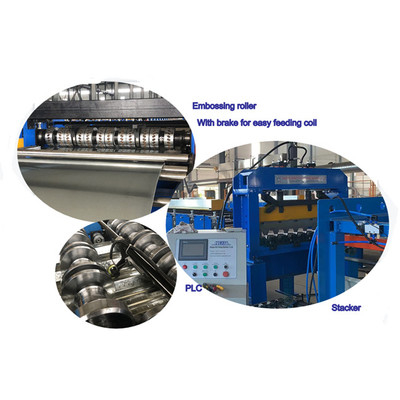

PLC

Main item	Parameter detail
PLC	Delta(standard) or according to your request
Inverter	China brand(standard) or according to your request
Touch screen	Mcgs(standard) or according to your request
Encoder	China brand(standard) or according to your request
Voltage/HZ/Phase	380v/50-60hz/3phase

Hydraulic pump:

Main Item	Parameter detail
Motor	3kw China brand or according to your request
Pump	China brand or according to your request
Solenoid valve	China brand or according to your request
Cooling system	Cooling fan

Tag:

Contact Person: Amerilia cui

Tel: 008615127755788

Other Products

Popular Metal Decking Profiles Rolling Forming Machine For USA Market

Customizable Floor Deck Composite Metal Roll Forming Machine

Working Speed: 15 to 20 meter per minute

Work Power: 15 kw *2

Shaft: 90mm with embossing roller 120mm

Frame: 400 H steel welded

1.5″ Composite Deck Durable Floor Decking Rolling Forming Machine

Work Power: 15KWX2

Control Mold: PLC control cabinet

Rolling Station: 28 rolling stations

Work Speed: 15 to 20m/min

1.5″ Type B Roof Deck Roof Deck Floor Decking Roll Forming Machine

Diameter Of Shafts: 90mm

Model No: ZTAC

Transport Package: Plastic Film, Container

Type: With metal embossing

High Efficiency Metal Roof Deck Roll Forming Machine with 3x11kw Main Motor Power

Control System: PLC

Rollers Quantity: 38 roller station

Before Shearing: It has hydraulic shearing

Power Source: Electric

Cellular Decking Metal Roof Decking Making Machine For Steel Structure Construction

Cellular Decking Metal Roof Decking Making Machine For Steel Structure Construction

Cellular Decking Metal Roof Decking Making Machine For Steel Structure Construction

Cellular Metal Roof Decking Making Machine

Cellular floor decking forming machine
