ZTRFM Anti Corrosion And Hardened Floor Decking Forming Machine With Chromed Treatment

Large Image : ZTRFM Anti Corrosion And Hardened Floor Decking Forming Machine With Chromed Treatment

Product Details:

Place of Origin:	China
Brand Name:	ZTRFM
Certification:	CE,SGS
Model Number:	AUTO

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Nude with anti-rusting coil
Delivery Time:	60 working days
Payment Terms:	L/C, T/T, D/A, D/P
Supply Ability:	30 sets per month

Contact Now

ZTRFM Anti Corrosion And Hardened Floor Decking Forming Machine With Chromed Treatment

Description

Transmission:	Double Chain	Machine Basic Frame:	500# H Steel Welded
Dimension:	12000mm1500mm1300mm	Roller:	Roller Material: Cr 15
Usage:	Floor Decking	Decoiler:	Manual Or Hydraulic
Rolling Method:	Whole Mold Rolling	Control Mold:	PLC Control Cabinet
Control:	PLC	Main Motor Power:	18.5kw
Rolling Station:	28	Hydraulic Cutting Power:	11kwx 2
Work Power:	15KWX2	Application:	Wall Cladding Sheet
Highlight:	Hardened Floor Decking Forming Machine , Chromed Treatment Floor Decking Forming Machine , Anti-Corrosion Floor Decking Forming Machine

ZTPFM full automatic Floor Deck Roll Forming Machine

2024 New Design Metal floor steel decking making machine.
Floor Deck Roll Forming Machine is one of our main machines, we are professional manufacturer of this kind of machines.

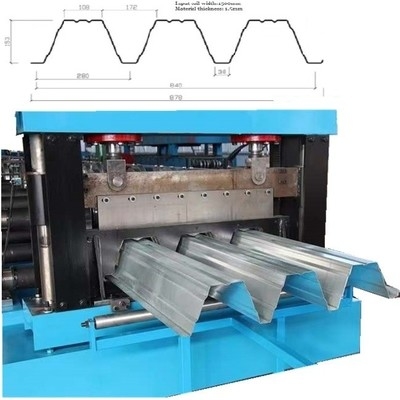

Here is one drawing profile and finished product:

ZTRFM Anti Corrosion And Hardened Floor Decking Forming Machine With Chromed Treatment 0

ZTPFM full automatic Floor Deck Roll Forming Machine

ZTRFM Anti Corrosion And Hardened Floor Decking Forming Machine With Chromed Treatment 1

Processing flow diagram of floor deck roll forming machine

Uncoiling---guide feeding---main roll forming ---hydraulic cutting---product collect table

ZTRFM Anti Corrosion And Hardened Floor Decking Forming Machine With Chromed Treatment 2

ZTRFM Anti Corrosion And Hardened Floor Decking Forming Machine With Chromed Treatment 3

Products Display

Manual Decoiler or hydraulic decoiler

Capacity:5 tons

will give you one manual decoiler as free

ZTRFM Anti Corrosion And Hardened Floor Decking Forming Machine With Chromed Treatment 4

PLC control cabinet

Avation plugs-easy installation

Schneider buttons

Siemens screen

ZTRFM Anti Corrosion And Hardened Floor Decking Forming Machine With Chromed Treatment 5

Double chain and gear transmission

Chain tensors construction: Transmission support chain gear tighter and stronger

ZTRFM Anti Corrosion And Hardened Floor Decking Forming Machine With Chromed Treatment 6

Roll forming device

ZTRFM Anti Corrosion And Hardened Floor Decking Forming Machine With Chromed Treatment 7

Cutting blade

ZTRFM Anti Corrosion And Hardened Floor Decking Forming Machine With Chromed Treatment 8

Feeding device

With rubbers and hand wheels.

ZTRFM Anti Corrosion And Hardened Floor Decking Forming Machine With Chromed Treatment 9

Hydraulic station

With cooling fun for long time using.

ZTRFM Anti Corrosion And Hardened Floor Decking Forming Machine With Chromed Treatment 10

Receiving table

ZTRFM Anti Corrosion And Hardened Floor Decking Forming Machine With Chromed Treatment 11

Here are the machine parameters for your reference:

Rolling shaft		Shaft Material: 45# steel, surface hard chromium plating.
		Shaft diameter: 110 mm
		Tampering treatment, prevent deformed and improve the hardness
Roller		Roller material: Gcr12mov
		Chromed treatment (Cr thickness:0.05 mm), anti-corrosion,Increase hardness, ensure the precision and good abrasion performance
Rolling station		48 stations
		Includes one set embossing rolling station, embossing roller shaft 120mm, with support bracket
Work speed :0-15 m/min
Machine structure	Middle plate welded structure
	Steel plate thickness: 20mm
machine basic frame	400# H steel welded with diagonal bracing inside
	The diagonal bracing can ensure the full set basic frame in the same horizontal level to prevent the sheet shift left or right. Meanwhile it can make sure the machine in a high stability when working. .
Bearing	Chinese famous brand Harbin
Work power	*22 kw 3 customize according customer requirement**
	Brand: China famous brand
