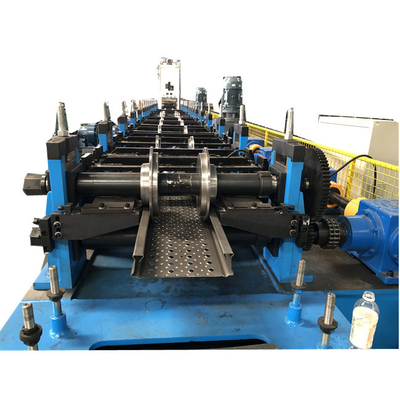

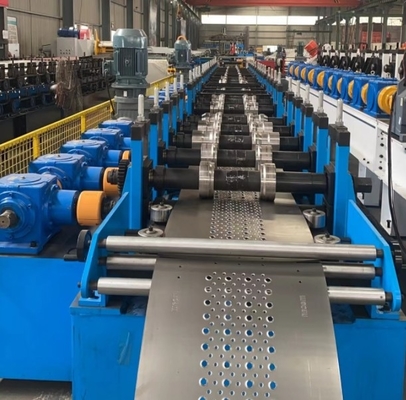

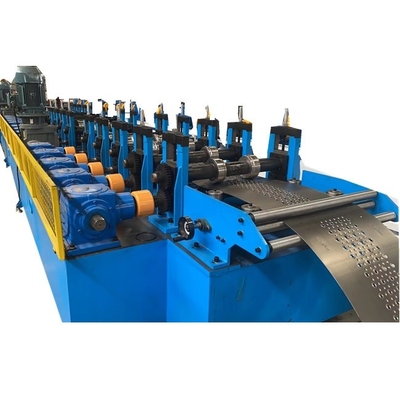

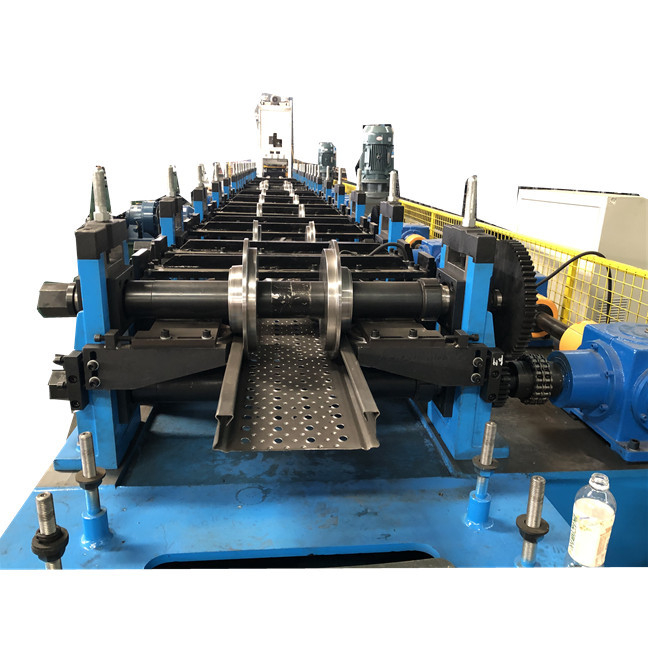

Board Scaffolding Platform Catwalk Galvanized Steel Walking Panel Scaffolding Boards Making Machine is designed to make steel walk panel in batch fully automatically. The Scaffold steel plank is an important part of the scaffolding which it is used for construction safety. The use of steel scaffold plank avoids the disadvantage of heavy water absorption and extreme slippery caused by rain on wooden scaffold planks. It is lightweight and high strength, easy to erect, and highly reusable. Both galvanized and ungalvanized you can choose depends on your needs. The scaffold steel plank is made up of Q195~Q235 steel as raw material and is widely used in all kinds of scaffolding systems. But as to which kind of panel, there are lots of types, take the following drawing profile for example to show you how the panel are made:

Board Scaffolding Platform Catwalk Galvanized Steel Walking Panel Scaffolding Boards Making Machine:

Machine working flow:

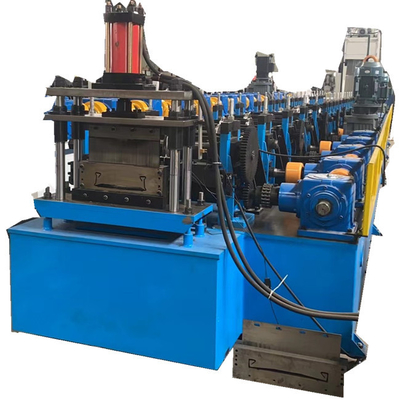

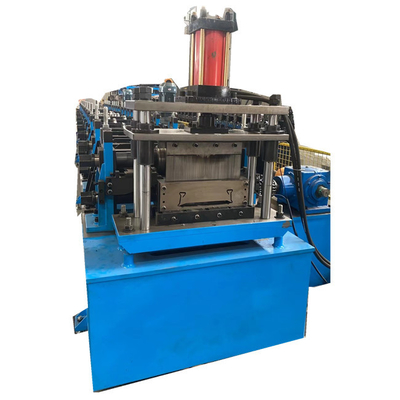

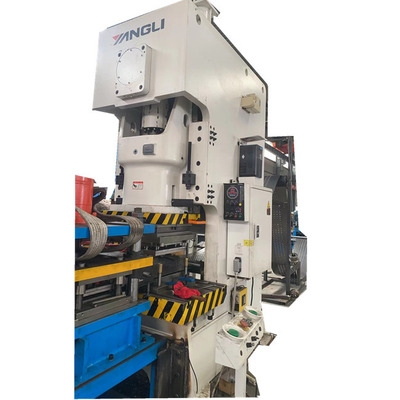

• 5 Ton hydraulic decoiler with the loading car- leveling and pinch roller- Pit- servo coil feeder-----punching machine-- cutting edge for easy shearing and do the side punching together-- pit again—leveling-- main rolling forming machine( two parts) for profile A and profile B both-- cutting connection holes and shearing ( for both profile A and profile B)--- hydraulic shearing with molding for make sure the shape beautful--- receiving table of 12 meters.

Galvanized Steel Walking Panel Scaffolding Boards Making Machine

1. Roller station: 18
2. Machine frame: Molding frame of thickness 45
3. Support the Max coil width: 380mm

4. Machine frame material: HT200 tempering

5. Leveling roller:80mm, material is 40Cr quenching.

6.Transmission: Gearbox

8. Main machine power: 15kw ZQ500 reduction box and velocity ration is 31.5

9. Machine based frame welded by carbon steel.

10. Shaft diameter: 80mm, made by 40Cr quenching at 56 to 58 degree.

11. Roller material: GCr15, quenching to the whole and make the hardness to HRC56-62º

12. Motor explosive-proof grade: ExdIICT4

13. Motor protection grade: IP54
