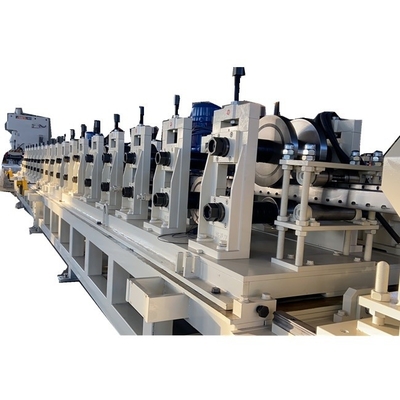

Pallet Upright Rolling Forming Machine Highly Automated

                                                     Pallet Upright rolling forming machine

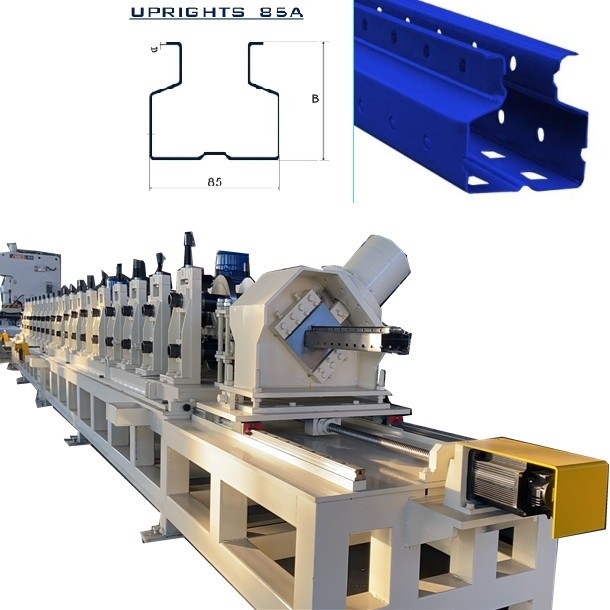

Pallet uprights rolling forming machine is designed to make the industrial shelving system suitable for palletized goods of multiple references. Pallet racking system is characterized by being selective, it allows immediate access to all the loading units with no need to move or displace the other pallets, which favors the warehouse stock controls.It is adaptable to the type of load to store, as they can be different sizes, containers, drums, pallets, it can be combined with shelves for picking, manual storage, pallet-drawers... It keeps the loads perfectly organized. So based on the market needs, we designed some types pallet upright rolling forming machine . Here are popular drawing profiles and sized for your reference.

For the Pallet Uprights according to the thickness, there are some light duty, heavy duty and others as the profile and thickness will be different and then the machine profile will be different. Here we will take a random drawing profile for your reference to show you the whole working flow.

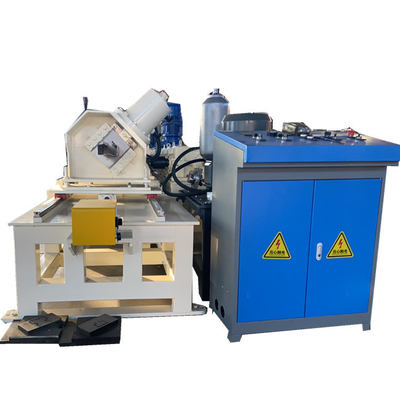

For the upright machine, it is composed by the following elements: 5T decoiler with Leveling device, Punching machine with die, Main roll former with cutter, PLC control station, Hydraulic oil pump, Tracking cutting system,Product collect table. But as to the upright main rolling forming machine, punching machines, decoiler, and receiving table, there are many options for your reference. You can choose according to your needs.

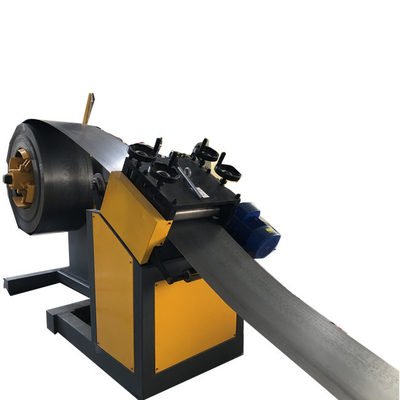

For example: decoiler you can choose manual one or hydraulic one with leveling system. Here is one example for your reference:

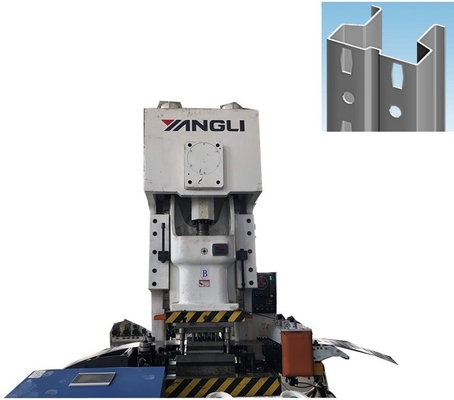

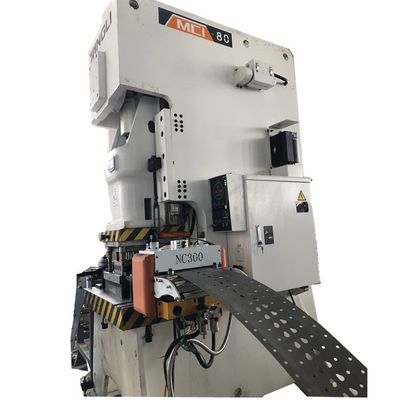

As to the punching machine, you can choose the normal brand punching machine or high quality punching machine and then the cost will be different.

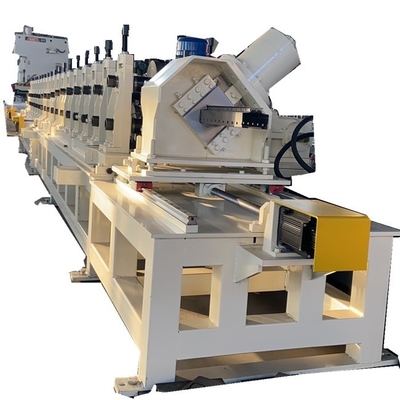

Pallet Upright rolling forming machine for heavy duty will be like this:

The design will be molding frame and gearbox transmission.

In order to increase the speed, we use the servo tracking shearing system, then whole line working speed can reach 19 to 25 meter per minute.

Here Pallet Upright rolling forming machine working videos for your reference:
