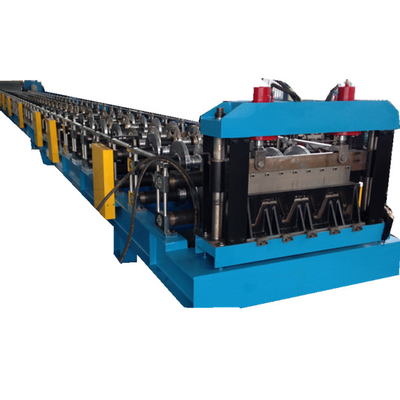

Metal floor decking rolling forming machine for Russian

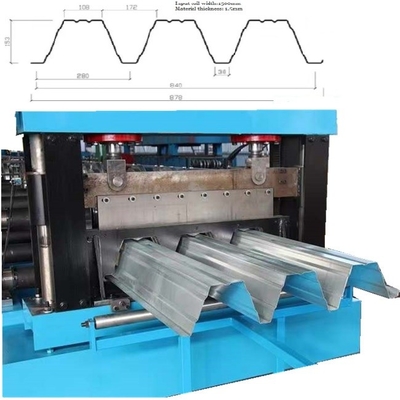

Metal floor decking rolling forming machine for Russian is designed to make the metal decking sheets in batch fully automatically. Here we check the following drawing profile:
This metal decking profile we use 1500mm input coil width and the material thickness Max customer requirements is 1.5mm. As to the installation width is 840mm.
Wave height: 153mm
Wave width: 108mm
Wave distance: 172mm
Metal floor decking rolling forming machine for Russian
Here are the machine parameters for your reference:
|
Rolling shaft
|
Shaft Material: 45# steel, surface hard chromium plating. | |
| Shaft diameter: 110 mm | ||
| Tampering treatment, prevent deformed and improve the hardness | ||
|
Roller
|
Roller material: Gcr12mov | |
| Chromed treatment (Cr thickness:0.05 mm), anti-corrosion,Increase hardness, ensure the precision and good abrasion performance | ||
|
Rolling station
|
48 stations | |
| Includes one set embossing rolling station, embossing roller shaft 120mm, with support bracket | ||
| Work speed :0-15 m/min | ||
| Machine structure | Middle plate welded structure | |
| Steel plate thickness: 20mm | ||
|
machine basic frame |
400# H steel welded with diagonal bracing inside | |
| The diagonal bracing can ensure the full set basic frame in the same horizontal level to prevent the sheet shift left or right. Meanwhile it can make sure the machine in a high stability when working. . | ||
| Bearing | Chinese famous brand Harbin | |
| Work power | 22 kw *3 customize according customer requirement | |
| Brand: China famous brand | ||
The difficulty of this machine rolling forming:
1. The material thickness to 1.5mm, so we have to use 110mm shaft diameter.
2. The profile height to 153mm, that means the roller outside diameter to 300mm around, so super big machine.
3. The machine takes 48 roller stations to do the rolling forming.
4. The machine power to 22KW with 3 motors.
5. By those reason, this machine is not cheap and price is higher than others. And the machine weight maybe to 40 Ton.
6. As to the loading and installation, we will design it into two parts and then you can do the connection by bolt and nuts when you need machine working.
1. As to the profile is too big, in order to make the wave more straight, at the side wave we add more ribs. Or you can add some embossing pattern. For the shearing part, we use the 3 pieces cutting blades shearing to make sure the shape perfect good.
