Cable Ladder Horizontally Mounted C Profile Rolling Forming Machine

Cable Ladder Horizontally Mounted C Profile Rolling Forming Machine
Cable Ladder Horizontally Mounted C Profile Rolling Forming Machine Cable Ladder Horizontally Mounted C Profile Rolling Forming Machine Cable Ladder Horizontally Mounted C Profile Rolling Forming Machine Cable Ladder Horizontally Mounted C Profile Rolling Forming Machine Cable Ladder Horizontally Mounted C Profile Rolling Forming Machine Cable Ladder Horizontally Mounted C Profile Rolling Forming Machine

Large Image :  Cable Ladder Horizontally Mounted C Profile Rolling Forming Machine

Product Details:
Place of Origin: China
Brand Name: ZTRFM
Certification: CE, SGS
Model Number: ZTAC
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Under discuss
Packaging Details: Nude
Delivery Time: 60 working days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 30 sets per month

Cable Ladder Horizontally Mounted C Profile Rolling Forming Machine

Description
Highlight:

adaptive metal roll forming machine

,

highly automated metal roll forming equipment

,

highly customizable automatic roll forming machine

                           Cable Ladder horizontally mounted C profile rolling forming machine

This cable ladder range is a complete cable support system that is easily assembled on site. The cable ladder system is designed to carry electrical cables in horizontally mounted heavy duty industrial, mining and petrochemical applications.Here is the profile of C with lots of punching. This cable ladder is good for making any length or width according to the installation requirements:

cable ladder drawing profile



Cable Ladder horizontally mounted C profile rolling forming machine with punching:

cable ladder machine

As the customer has two sizes to be made, we design the shearing system with two cutting blades. And for the different sizes by adjusting spacers. As to the punching system, you can choose to use the YangLI or world famous brand punching machine or by hydraulic punching machine.

Punching part



For the main rolling C profile rolling forming machine:

Rolling shaft material 40Cr
Shaft diameter 70 mm
Roller material Cr12 HRC 56-58
Rolling station 16 stations
Work speed 20m/min
Machine frame Iron casting vertical structure
Machine body steel plate welded with grinding
Motor brand Siemens
Work power 15kw
Transmission chain
Leveling station 5 shafts
Straightening 4 vertical rollers

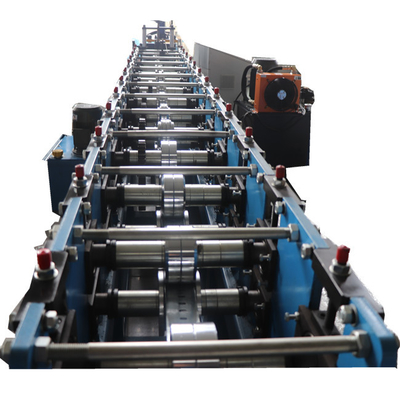

main rolling forming machine

Cable Ladder horizontally mounted C profile other usage for your reference:

cable ladder profile machine
