Cable ladder frame Z profile rolling forming machine

Description

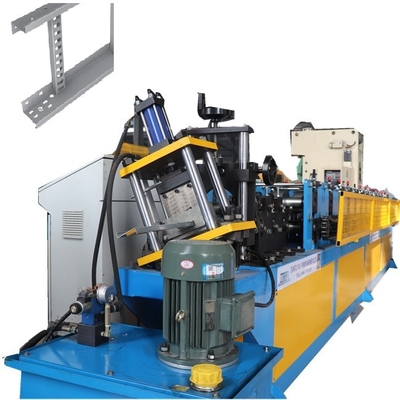

 Cable ladder frame Z profile rolling forming machine

Cable ladder frame Z profile rolling forming machine is designed to make the ladder frame in batch fully automatically. This cable ladder range is a complete cable support system that is easily assembled on site and it is is specifically designed to carry electrical cables in horizontally mounted, heavy duty industrial and mining applications. Here are some usage cases for your reference:

Cable ladder profile

This type ladder is composed by two parts, the Z frame part and the C connection beam with punching. Here is the drawing profiles for your reference. By this type, the ladder could be any width. And for the Z frame, you can choose to do the punching online or offline.

Z profile drawing profile



Cable ladder frame Z profile rolling forming machine:

Cable ladder machines



Z frame roll forming parameters for your reference:

Main motor power: 18.5kw

Drive: Chain

Main shaft dia: ¢85mm, material: 45﹟refined forge steel

Roller material: GCr15 bearing steel, quenching HRC58-62,surface coated chrome with thickness 0.05mm

Roll station: 16stations with 7 leveling rollers

Raw material: Black steel or galvanized steel

Thickness of raw material: 2-3mm

Working speed: about 7-15m/min(include cutting time)

Coder: OMROM

PLC: YASKAWA , made in Japan. 380V 50HZ(Depend on customer)

Computer operating panel: touching screen

cable ladder rolling forming machine

And for the shearing system:

Hydraulic cutting

Four sets of the cutting mould to replace for different size

Hydraulic power: 5.5KW

Hydraulic pressure: 20Mpa

Blade material: Cr12mov, quenched 58°-62°

shearing

This machine we design is slow speed and more economic. If you want to make more sizes and like more high speed machine, we could make also. There are other types same working principle, we could also make.

cabble ladder drawing other type

sample of cable ladder



For this type machine, if you want to know more information, please contact us at any time.
