                                                          Steel Slotted Strut Channel Rolling Forming Machine

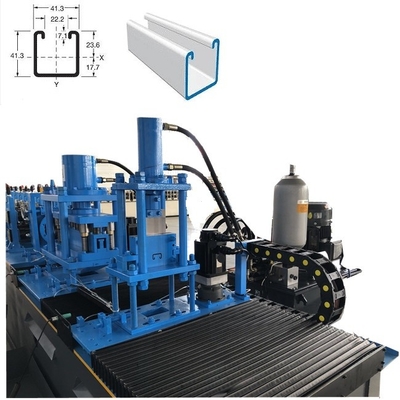

Steel Slotted Strut Channel Rolling Forming Machine is designed for making strut channels in batch fully automatically. Standard structural component generally used for the support of electrical or plumbing products (such as cable tray/ladder, lighting rigs, or pipe clamps), but it also has a wide range of other uses for installing just about anything.41mm slotted channel with punched holes. Galvanized steel for typical outdoor environments. Here is the one drawing profile for your reference:

Steel Slotted Strut Channel Machine Rolling Forming Full Featured 0

If you need to add the zigzag, we can also add also:

Steel Slotted Strut Channel Machine Rolling Forming Full Featured 1



Here are some usage of strut channel:

Steel Slotted Strut Channel Machine Rolling Forming Full Featured 2

Here I will introduce one type light duty strut channel rolling forming machine:

Steel Slotted Strut Channel Machine Rolling Forming Full Featured 3

For the sizes adjustments by spacer and change the cutting blade, make sure to be more easier from 41x40 to 41x20: Material thickness: 1.5mm & 1.8mm

Steel Slotted Strut Channel Machine Rolling Forming Full Featured 4



Working flow of strut channel rolling forming machine:

Different the traditional design, this one we use the after punching by servo motor like the following flow.

Steel Slotted Strut Channel Machine Rolling Forming Full Featured 5

It is composed by the following elements: 3 Ton deoiler, main rolling forming machine with servo punching online and shearing system and the receiving table.

Advantages of light duty strut channel rolling forming machine:

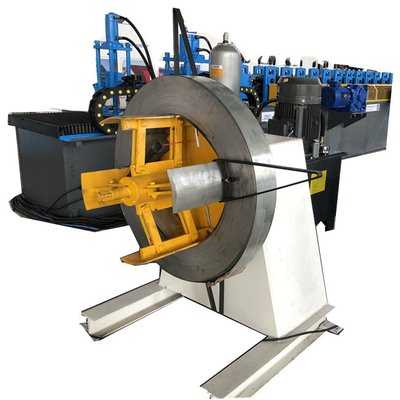

1. The decoiler you can choose hydraulic automatic type or manual one. Even if you choose the manual one, our decoiler with protection arm for coil peel off and brake for safety.

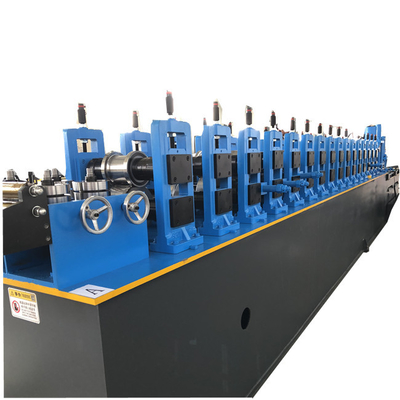

2. The main rolling forming machine, we use molding frame for longtime to use and strong connection.

3. Rolling part with two turkey heads, one is with the tape rollers to make the side straight. And the second one is for the straightness in the length.

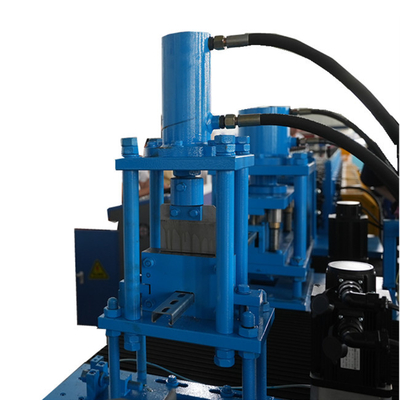

4. For punching part, we use the online punching by servo motor. Each time it can punch 10 holes and each minute can punch 40 times so the speed can reach 20 meter per minute.

Steel Slotted Strut Channel Machine Rolling Forming Full Featured 6

5. And the punching we design using bottom up to punch, by this way it can make sure surface smooth.

6. Hydraulic station with energy tank for non stop shearing and punching.

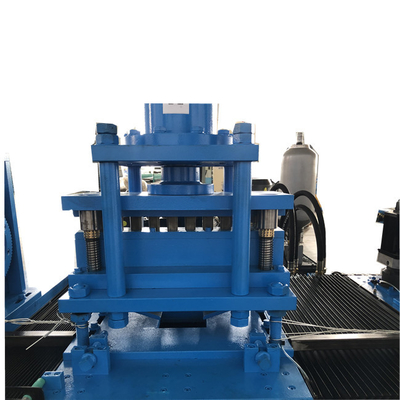

Let us check more details by the following detail pictures:

Steel Slotted Strut Channel Machine Rolling Forming Full Featured 7

How to adjust from 41x41 and 41x21mm:

We will give the drawing introduction like and training videos. Normally speaking it needs engineer adjustments around 2 hours.

Steel Slotted Strut Channel Machine Rolling Forming Full Featured 8

Steel Slotted Strut Channel Machine Rolling Forming Full Featured 9

So you need to adjust the spacer for different sizes according to the instruction manual.
