Open Seam Tube Profile Rolling Forming Machine

                                              Open seam tube profile rolling forming machine

Open seam tube profile rolling forming machine is designed to make the tube profile in batch by rolling forming. As to the welding, you can choose to add or not. Meanwhile if you have special requirements about the seam, we can make for you also. For getting the accurate quotation, we need your help to give the following information:

1. What is the material and how about the thickness like carbon steel or stainless steel or others.

2. What is the diameter you need to make

3. With welding or without.

4. The rolling speed you need higher or normal.

Here we take the following drawing profile for example:

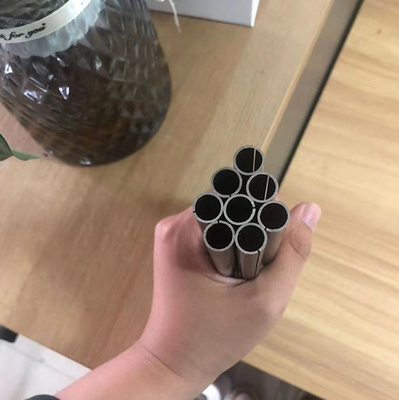

Here the tubes for your reference:

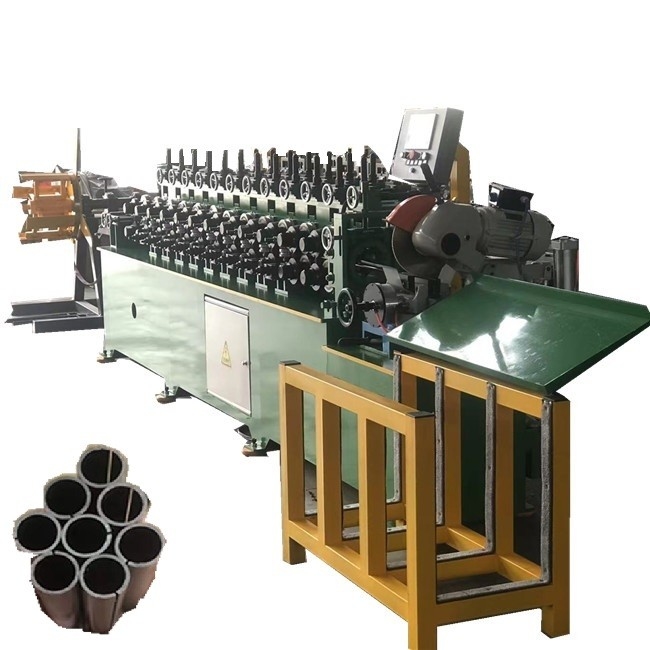

Open seam tube profile rolling forming machine:

Material : DC01 thickness 0.9mm Speed:10-15m/min

Testing machine: We sue width 33.5mm material testing the machine for customer.

The machine is composed by the following elements:

Part 1: 3T decoiler set 1 Manual

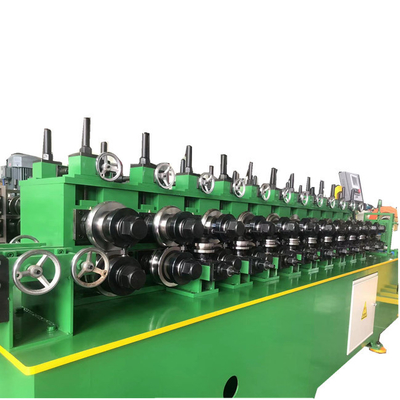

Part 2 Main roll forming machine set 1 10-15 m/min

Part 3 PLC control station set 1 Delta brand

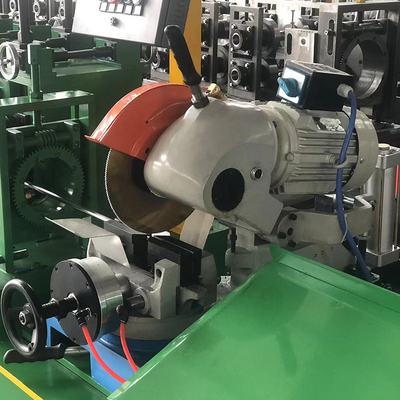

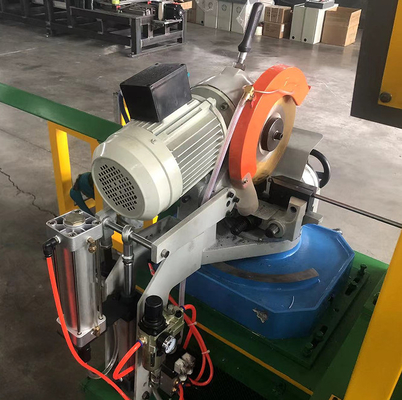

Part 4 Cutting system set 1 Sawing cutting

Part 5 Product table set 1 Regular

Open seam tube profile rolling forming machine working flow:

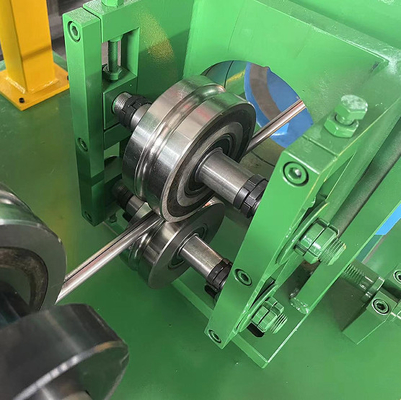

Open seam tube profile rolling forming machine roller design and working principle:

Cantilever structure tube roll former of this one we designed as for easy changing rollers in the future. And the machine will be more smart and take up small space. As to the shearing part, we design as disk shearing, no shape changing and more accurate.

For the rolling forming machine, the accuracy we can control within 0.01mm. This machine we made for Italy and it is used as the curtain rail for car. Here are some usage pictures. So it will be super high in the accuracy control.

Open seam tube profile rolling forming machine working videos for your reference:
