Sound Stop Aluminum Panels Rolling Forming Machine For Expressway

Sound Stop Aluminum Panels Rolling Forming Machine For Expressway
Sound Stop Aluminum Panels Rolling Forming Machine For Expressway Sound Stop Aluminum Panels Rolling Forming Machine For Expressway Sound Stop Aluminum Panels Rolling Forming Machine For Expressway Sound Stop Aluminum Panels Rolling Forming Machine For Expressway Sound Stop Aluminum Panels Rolling Forming Machine For Expressway Sound Stop Aluminum Panels Rolling Forming Machine For Expressway

Large Image :  Sound Stop Aluminum Panels Rolling Forming Machine For Expressway

Product Details:
Place of Origin: China
Brand Name: ZTRFM
Certification: CE, SGS
Model Number: 002
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Nude with anti-rusting coil
Delivery Time: 60 WORKING DAYS
Payment Terms: L/C, T/T
Supply Ability: 30 SETS/MONTH

Sound Stop Aluminum Panels Rolling Forming Machine For Expressway

Description
High Light:

adaptive metal roll forming machine

,

highly automated metal roll forming equipment

,

highly customizable automatic roll forming machine

                                        Sound stop aluminum panels rolling forming machine for expressway

Sound stop aluminum panels rolling forming machine for highway is designed to make the sound proof panel made by aluminum for highway. Aluminum panels are used primarily for protection from traffic noise. More and more often, aluminum panels appear in industrial areas. Noise barriers are installed having the acoustic comfort of neighboring buildings in mind. Aluminum panels are manufactured in several variants with insulating properties adapted to the sound source. Here are some pictures for your reference:

Sound stop aluminum panels rolling forming machine

Advantages of Sound stop Aluminum Panels:

Acoustic parameters
Aluminum panels are characterized by various acoustic properties, depending on the panel type. The specific insulating power of a bilaterally reflective panel is DLR=21 dB, unilaterally absorbing DLR=27 dB, and bilaterally absorbing DLR=28 dB. The sound absorption coefficient of a unilaterally absorbing panel is DLα=16dB, whereas for a bilaterally absorbing panel DLα=14dB.

Modularity of the system
Aluminum Panels are adapted for any given spacing of poles up to the span of 5000mm (optionally 6m on request).

Any height of the noise abatement wall – depending on customer needs
Aluminum Panels are manufactured with the standard height of 500mm. Multiplicity of this dimension makes it possible to build noise abatement walls of any given height.

Durability and corrosion resistance
Considering the materials used for making all of the Aluminum Panel’s elements, no additional anti-corrosion coatings are necessary. Paint coatings have an aesthetic function contributing to the attractiveness of an Aluminum Panel. The wide range of standard RAL colors, as well as non-RAL colors, provides a lot of freedom in the selection of the Aluminum Panel’s coloring, which can make it unique.

Sound stop aluminum panels rolling forming machine design:

Sound stop aluminum panels rolling forming machine

Sound stop aluminum panels rolling forming machine





Sound stop aluminum panels rolling forming machine for expressway

This production line is composed by the following production line:

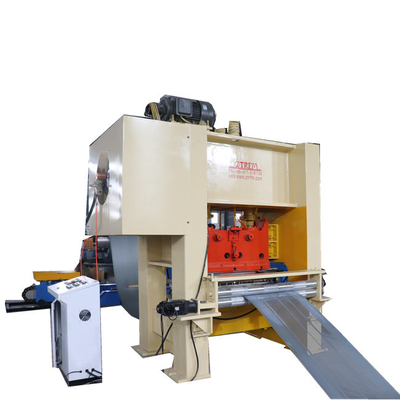

Line 1: for punching: from decoiler to servo coil feeder, to punching machine to damping system and then recoiler.

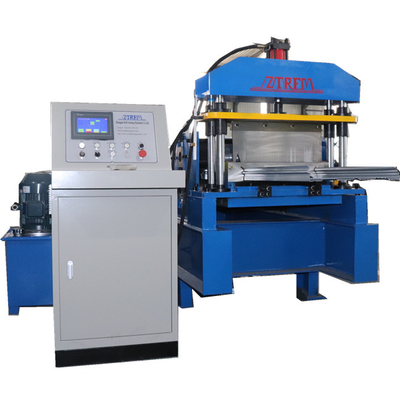

Line 2: Use the punching coil and then to do the rolling forming machine.

Line 3: by the workers to make two panels together and then fill the filling to the finished product of Sound stop aluminum panels

Sound stop aluminum panels rolling forming machine working flow

Here are the final production installation effect:

Sound stop aluminum panels

Sound stop aluminum panels rolling forming machine for expressway machine working videos for your reference:

The above video is about the punching. Now the following is about the rolling forming part:
