Structural Ppgi Floor Decking Machine Facade Wall Cladding Panel Roll Former Machine

Structural Ppgi Floor Decking Machine Facade Wall Cladding Panel Roll Former Machine
Structural Ppgi Floor Decking Machine Facade Wall Cladding Panel Roll Former Machine Structural Ppgi Floor Decking Machine Facade Wall Cladding Panel Roll Former Machine Structural Ppgi Floor Decking Machine Facade Wall Cladding Panel Roll Former Machine Structural Ppgi Floor Decking Machine Facade Wall Cladding Panel Roll Former Machine Structural Ppgi Floor Decking Machine Facade Wall Cladding Panel Roll Former Machine

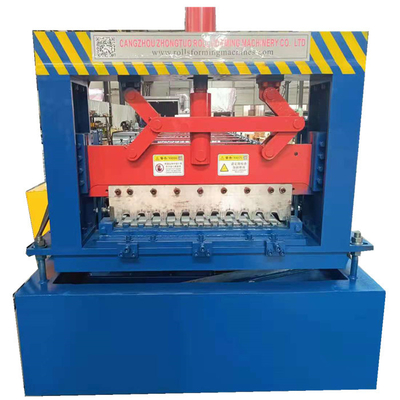

Large Image :  Structural Ppgi Floor Decking Machine Facade Wall Cladding Panel Roll Former Machine

Product Details:
Place of Origin: China
Brand Name: ZTRFM
Certification: CE, SGS
Model Number: 002
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Nude with anti-rusting coil
Delivery Time: 60 WORKING DAYS

Structural Ppgi Floor Decking Machine Facade Wall Cladding Panel Roll Former Machine

Description
Material: PPGI, GI, Or Others Usage: Villa House Decking
Application: Wall Cladding Sheet Roller Station: 36
Working Speed: 15 To 20 Meter Per Minute Decoiler: Manual One, Or Hydraulic One
Shaft Diameter: 90mm Shearing: Hydraullic Shearing
High Light:

ppgi floor decking machine

,

villa house floor decking machine

,

ppgi floor deck roll forming machine

                        Structural floor decking machine and facade wall cladding panel machine

Structural floor decking machine and facade wall cladding panel machine is designed to make the structural floor decking sheet in batch fully automatically. This floor decking profile with its optimal geometry provides a combined action between the deck and the concrete/screed ensuring an extremely high load bearing capacity. It often is used for the villa house decking. Here is the basic information for your reference:

decking profile



It is a kind of lightweight and high-strength profiled steel sheet formed by rolling and forming of 1250mm wide high-quality cold-rolled hot-dip galvanized steel sheet. It adopts a dovetail necking design with an effective width of 768mm and a wave height of 16mm.

Features of this Structural floor decking:

Low dead weight

Thin Floor thickness (from 50 mm)

High permissible load

Spans (centre to centre) up to 2500 mm

High impact and airborne sound insulation

Fire resistance up to 120 minutes

villa house decking

Structural floor decking machine and facade wall cladding panel machine:

Villa house decking rolling forming machine

Advantages of metal decking rolling forming machine:

ZT structural floor and facade rolling forming machine can produce the floor decking in the speed of 15 to 20 meter per minute. We can make the perfect shape when overlapping, it can match one and another easily. The machine we design using 43 roller stations to make sure the shape is good and fixed well.

Machine we use 30mm thickness middle plate. Easy for installation, all electrical components we use the Simens Brand



For this profile, it also could be used as wall cladding sheet:

Application when using for wall



Structural floor decking machine and facade wall cladding panel machine working videos for your reference:
