Carbon Cut To Length Production Line High Speed 80m/Min

Carbon Cut To Length Production Line High Speed 80m/Min
Carbon Cut To Length Production Line High Speed 80m/Min Carbon Cut To Length Production Line High Speed 80m/Min Carbon Cut To Length Production Line High Speed 80m/Min Carbon Cut To Length Production Line High Speed 80m/Min Carbon Cut To Length Production Line High Speed 80m/Min Carbon Cut To Length Production Line High Speed 80m/Min

Large Image :  Carbon Cut To Length Production Line High Speed 80m/Min

Product Details:
Place of Origin: China
Brand Name: ZTRFM
Certification: CE. SGS
Model Number: Cut to length machine
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: customize
Packaging Details: Nude package with anti oil
Delivery Time: 90 working days
Payment Terms: L/C, T/T
Supply Ability: 30 sets per month

Carbon Cut To Length Production Line High Speed 80m/Min

Description
Decoiler: Hydraulic Control Model: PLC Control
Applied To: Carbon Steel ,GI Thickness: 0.1-2 Mm
Width: 500-1550 Mm Coil Weight: 15 Ton
Material Of Leveling Roller: GCr15 Speed: ≤80 M/min
High Light:

carbon cut to length production line

,

80m/min cut to length production line

,

high speed steel coil cutting line

High speed 80m/min cut to length production line

High speed 80m/min cut to length production line is designed for those who want to do the shearing in batch and fast production. The machine working speed can reach 80m/min using the servo tracking shearing system.

Also to make sure the leveling accuracy, we use the 4 layers leveling, one hand it can make sure the leveling speed and then it can make sure the leveling accuracy.

The following parts, we will share more information of each part.

High speed 80m/min cut to length production line working flow:

Carbon Cut To Length Production Line High Speed 80m/Min 0





Decoiler

For the decoiler part, you can choose the single head decoiler or double head decoiler according to the weight of the coil you buy from the market:

Carbon Cut To Length Production Line High Speed 80m/Min 1

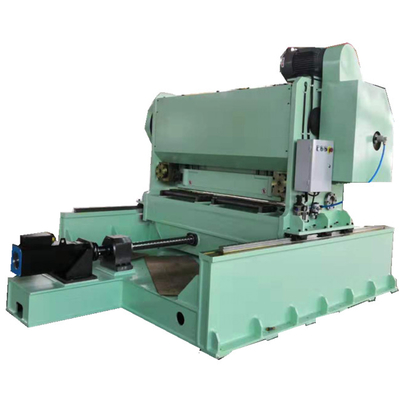

Servo tracking cutter machine

◆It is controlled by servo electromotor and used to regulate for high speed feed and precise length control

◆The operation is done at the control table with programmable control.

◆Drive model: 15KW Servo motor drives the cutter move forward and backward.

◆Shear model: cut from up to down by 7.5KW motor which is cooperate with the signal direct and shear automatically

◆Automatic control the shearing

◆2pcs Linear guide length 2.5m , The guide screw is 80mm diameter.

◆Function: it can accurate shear coordinated with whole line control, and With the servo feeding and the cutting settings, it can achieve seamless cooperation with the shearing time, and achive the purpose of high-speed shearing.

Servo tracking shearing system



Here is the machine working videos for your reference.
