High Precision Automatic Corrugated Roll Forming Machine 350 H Plate Chain Drive

High Precision Automatic Corrugated Roll Forming Machine 350 H Plate Chain Drive
High Precision Automatic Corrugated Roll Forming Machine 350 H Plate Chain Drive High Precision Automatic Corrugated Roll Forming Machine 350 H Plate Chain Drive

Large Image :  High Precision Automatic Corrugated Roll Forming Machine 350 H Plate Chain Drive

Product Details:
Certification: CE
Model Number: 800
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Packaging Details: Packaging Details: roof panel roll forming machine is nude packing 1. one 20ft container for loading one set machine with manual decoiler; 2. the whole Wiped
Delivery Time: Shipped in 30 days after payment
Payment Terms: T/T, L/C, Western Union
Supply Ability: 20 SETS PER MONTH
Contact Now

High Precision Automatic Corrugated Roll Forming Machine 350 H Plate Chain Drive

Description
Type:: Tile Forming Machine Production Capacity:: 8-20m/min
Dimension(L*W*H):: 8m*1.5m*1.2m Power(W):: 5.5kw
Operation Style:: Full Automatic Control System:: PLC Control
Equipment Base:: 360H Steel Frame After-sales Service Provided:: Engineers Available To Service Machinery Overseas
Highlight:

sheet roll forming machine

,

corrugated iron sheet making machine

Automatic Corrugated Roll Forming Equipment 350 H Plate Chain Drive

Product Description


1. High Precision And Speed

2. CE,ISO certification

3. Customization Accept





General Machine Parameters



Suitable material PPGI/PPGL/GI/Aluminium
Machine Sizes 8500mm×1500mm×1300mm
Main motor power 5.5KW with Cycloidal reducer
Hydraulic station power 4KW
Hydraulic oil 36#
Thickness of material 0.3mm~0.8mm
Diameter of principal axis Φ70mm
Material expand width 1000-1200mm
Electric tension 380V 3phase 50HZ~60HZ or as your request
Material of roller High grade 45# forged steel,quenched and hard chromed 0.05mm
Rolling galvanization thickness 0.05mm
Processing speed 12-16m/min
Processing precision within 10m+/-1.00mm
Material of cutting blade Cr12 Mov with quenched treatment
Kind of drive 1 inch chain link bearing model 6210
Roller station 16 Steps / 16 Steps



3. Computer Control Carbinet (English/Russian Text Screen)



PLC “Mitsubishi”/"Delta"
Length Controller “OMRON”
Switch CHNT
Frequency Changer "Sanjing"

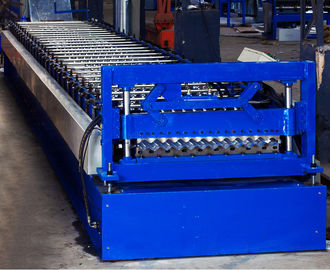

Product Show


High Precision Automatic Corrugated Roll Forming Machine 350 H Plate Chain Drive 0
