Product Details:
|
| Type:: | Tile Forming Machine | Production Capacity:: | 8-12m/min |
|---|---|---|---|
| Dimension(L*W*H):: | 6800mm*800mm*1200mm | Power(W):: | 3KW-20.5KW |
| Roller Material:: | 45#steel Chrome Plated | Cutting Blade Material:: | Cr12 Frequency Quenching |
| Control System:: | PLC(imported Brand) | Thickness:: | 0.8-1.2mm |
| Warranty:: | 12 Months | ||
| High Light: | iron sheet making machine,roofing sheet roll forming machine |
||
Automatic Decking Floor Roll Forming Machine 20Mpa Hydraulic 11Kw Brake Motor
components:
De-coiler------------------------------------------1set
Forming machine--------------------------------1set
Cutting device -----------------------------------1set
PLC control box ---------------------------------1set
Hydraulic pump station-------------------------1set
output table-----------------------1set

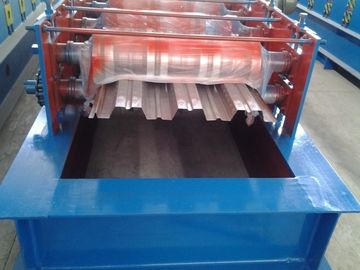

Floor Decking Roll Forming Machine Metal steel floor tile Making Machine Techical description:
1) Decoiler for Metal Floor Deck Tile Roll Forming Machine Making Machine
Weight capacity of decoiler : 5.0T
Inner diameter:≤508mm
Outer diameter:≤3000mm
2) Forming Device for Metal Floor Deck Tile Roll Forming Machine Making Machine
| 1 | Material thickness | 0.8mm-1.5mm |
| 2 | Feeding width | 1000mm(acccodring profile drawing ) |
| 3 | Effective width | 688mm(acccodring profile drawing) |
| 4 | Forming Steps | 30steps |
| 5 | Line Speed | 8 to 15m/min(adjustable) |
| 6 | Stand | Independent stand structure (raft structure) |
| 7 | Drive | Independent motor and moved by chain |
| 8 | Material of Roller | 40Cr, HRC45-55 |
| 9 | Shaft Diameter | 100 to110mm |
| 10 | Main Motor Power | About 30KW |
| 11 | Voltage | 380V/50HZ/Three Phase |
3) Rolling Forming System for Metal Floor Deck Tile Roll Forming Machine Making Machine
Main motor power: 18.5KW
Speed of forming: 8-12m/min
Material of roller : Gcr15steel polished and coated with chrome HRC55-60°
Roller:15 groups rollers
Material of main shaft : High grade No.45 steel after treatment
Diameter of main shaft: ø80mm
Driven:1''chain
4) Hydraulic & Cutting for Metal Floor Deck Tile Roll Forming Machine Making Machine
Cutting material: Cr12 ,HRC58-62
Hydraulic motor power: 7.5KW
Tolerance:±2mm
Valve: adopt Italy Atos
5) PLC Control system for Metal Floor Deck Tile Roll Forming Machine Making Machine
Function:control the whole line manually and automatically
Structure:MITSUBISHI PLC control, human and machine screen
Marks: Main Application: floor decking
1. Guarantee : 12 months guarantee for the machine. If some parts broken naturally,
we will supply them for free.
2. enginers can offer out home service
3. The spare parts ,such as limit switch ,solenoid ,fuse ,,push button ,tube
for free .
