High quality Trim Roll Forming Machine For Steel And Aluminum With Thickness Capacities Ranging From 30 To 16 Gauge from China, China's leading product market Aluminum Trim Roll Forming Machine product, with strict quality control Steel Trim Roll Forming Machine factories, producing high quality 16 Gauge Trim Roll Forming Machine Products.

SKU: 5d33928977e0 Category: Tags: , ,

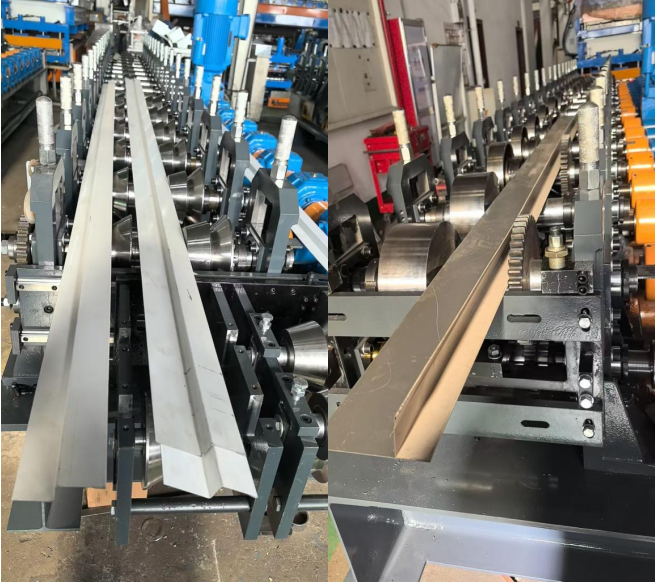

Trim Roll Forming Machine

Our trim machines are made to meet commercial, residential, or industrial needs. Trim profiles vary depending on building type, roof type, or marketplace. Trim machines we offer include: J Channel, Ridge Cap, Fascia, Rake Trim, Drip Edge, Drip cap, Corner trim, and many more.

Designed and Manufactured in the China with Stainless Steel to Hardened Tool Steel Forming Rolls with or w/o Chrome Plating, Sealed Bearings, Stainless Steel Shafting, Hydraulic Drive and Shear or AC Drive Motor System and Air Powered Shear, and Digital Controllers for fully automatic operation. Typical thickness capacities range from 30 to 16 gauge on Steel and .019″ to .060″ on Aluminum.

The benefit of owning your trim machine is you no longer have to deal with the constant rising prices of trim, and long lead times. Trim machines also allow you to “free up” your brake or folder for other projects, and there is no limitation on the length of pieces.

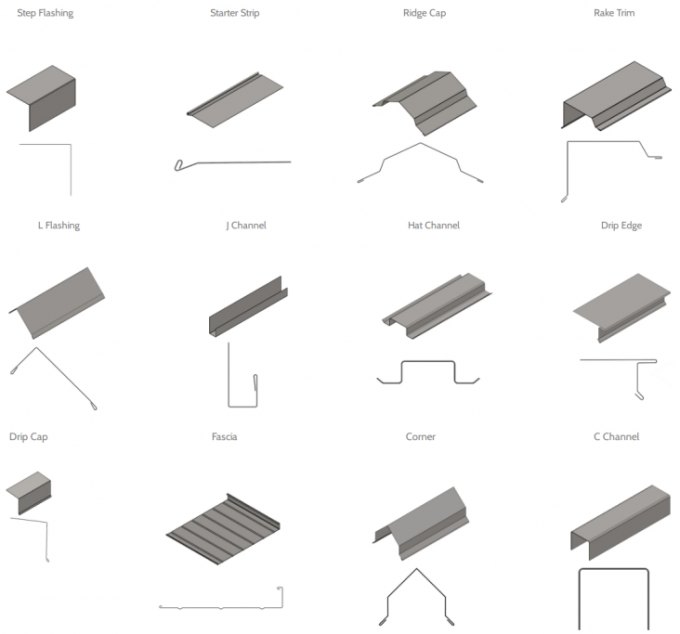

Example Profiles

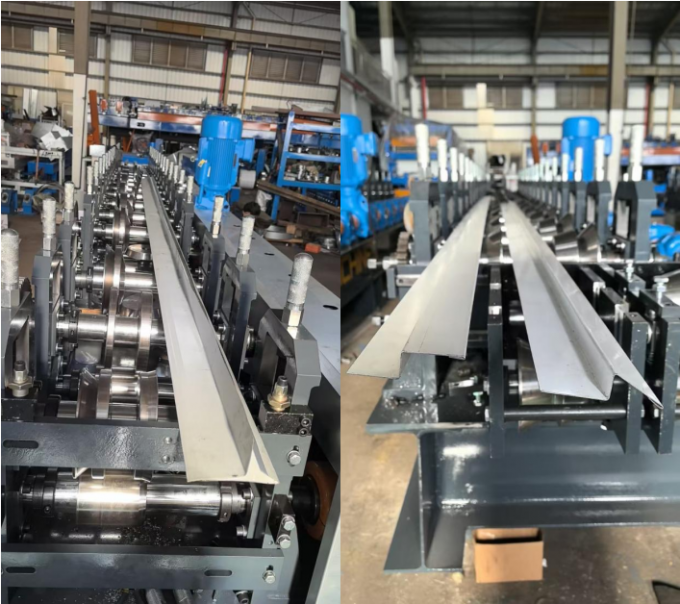

Trim Roll Forming Machine

Main Technical Parameters
Quantity of forming rollers stations 12-14
Diameter of forming rollers shafts 60mm
Roll Forming Speed about 30m/min
Forming rollers material No.45 steel, coated with chromed treatment
Cutter material CR12 mould steel, with quenched treatment
Controlling system PLC and Converter
Electric Power requirement Main servo motor power: 4kw
Hydraulic unit motor power: 4kw
Electric voltage According to customer’s requirement

FEATURE

Workflow of trim lines,decoiler- feeding – slit width-punch – forming – cut

Siemens control, about 14 roller stations

Trim forming machine adopt servo motor to improve working speed.

We can make roll forming for single trim, or roll former for multi profiles.

We offer a variety of Single and Multi Trim Roll forming lines, slitting lines, hemmers, shears, folders and other additional equipment to speed up your trim production.
