Metal Roofing Corrugated Steel Sheet Making Machine Galvanized Aluminum
Product Description
1. Working Flow& Layout
Manual decoiler→→ Feeding material into machine →Roll forming machine →Measure length→Hydraulic cutting →Finished Products
2. Supplying components of complete machine
| NO. | Description | Quantity (set) | Remark |
| 1 | 5Tmanual decoiler | 1 | As one complete part |
| 2 | Guiding device | 1 | |
| 3 | Pre-cutter | 1 | |
| 4 | Forming system | 1 | |
| 5 | Transmission system | 1 | |
| 6 | Hydraulic guillotine | 2 | |
| 7 | Support table | 2 | |
| 8 | Hydraulic station | 1 | |
| 9 | Control box | 1 | |
| 10 | Spare parts and tools | 1 | As attaching list |
3. General parameters
| No | Item | Parameter | Note |
| 1 | Forming Speed | Max2.5 m/min | Excludes cutting |
| 2 | Forming station | Around 16 groups | |
| 3 | Total Power | About 7 KW | |
| 4 | Total Weight | About43800KGS | |
| 5 | Voltage | 380v,60hz,3p |
Decoiler
1. Features:
Mandrel and basement are the two components of the decoiler, the mandrel is shrinking expanding by mechanical device manually, after fix coil to mandrel, then put back the coil with mandrel together to basement.
2. Power: None
3. Power of the open and closure of segments: Mechanical
4. Power of rotation of segment: Pull by forming system
5. Number of segment: 4
6. Range of segment expansion: 480 ~ 520mm
7. Height of center of the mandrel: 0.65m
8. Feeding speed with push: 0~30m/min
9. Approximate Size: 1.5 m * 1.1m *1.2 m
10. Speed control: By mechanical brake
11. Methods of operation: Manual.
Material Feeder
1. Features: Ensure smooth& precise material feed.
2. Components: steel plate platform, two pitching rollers, position stopping block.
3. The coil is guided in the correct position and passed to the roll forming equipment.

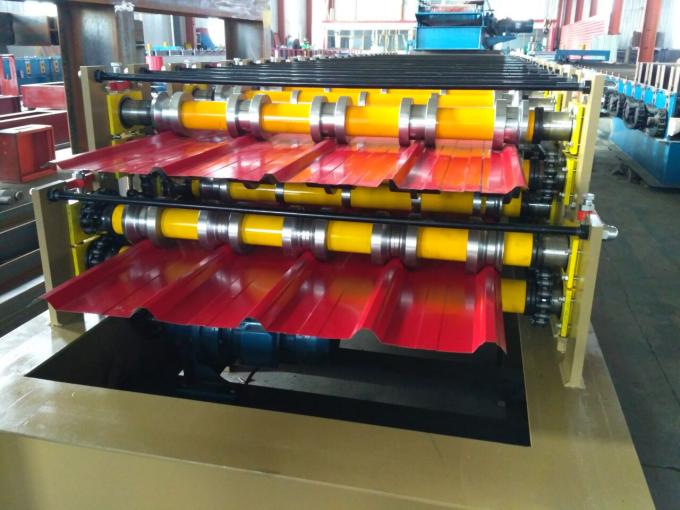

Main forming part

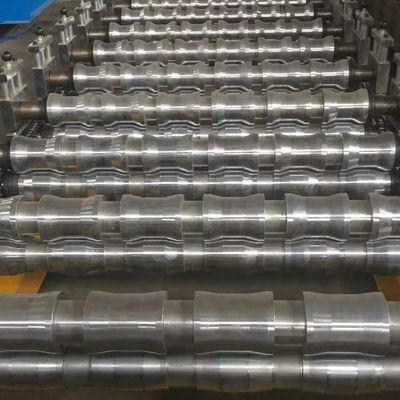

1. Rollers: design by senior engineers with Auto-cad software, manufactured with 45# high grade steel by CNC machine tools and coated with hard chrome
2. Shaft:70mm manufactured with 45# high grade steel by CNC machine tools
3. Supporting frame: steel wallboard to guide the forming station bearing basement
4. The finished products will change if using different material and thickness
5. Driving of machine:by one inch chain
Hydraulic cutting
1. Function: cutting action is controlled by PLC. The main machine automatically stops and the cutting will take place. After the cutting, the main machine will automatically start.
2. Power supply: hydraulic station
3. Frame: welding steel frame
4. Stroke switch: non-contact photoelectric switch
5. Cutting before forming: cut the sheet after roll forming to required length
6. Length measuring: automatic length measuring
Packaging&Shipping
1. We have professional technicians for loading to make sure machines load into container without any damage and all included.
2. Usually roll forming machine may need one 40GP to shipping.
3. Please provide us the nearest port name, we will ask shipping cost and arrange shipping for you.
Our after-sale service:
Our products are widely used in various industrial factory ,beauty spot, holiday village building, hotel,exhibition ,easy steel building manufacturing ,and have features such as nice appearance and durable.
Within in one year if any parts go broken we will send new ones to replace for free,after the warranty period,we will help you repair the machine ,you only responsible for the labour and parts if the machine have some problems.
